Mircom QX-mini Programming Guide

84
Relay Input - QX-mini and FX-2000
12.3 Configuration Steps
12.3.1 FX-2000 Configuration
1. Open FX-2000 configurator.
2. Create a new job or open an existing job.
3. Click on the loop that has been wired to SLC terminal on QX-mini Master.
4. Configure the loop as shown in the window below.
Note: In this example, relay output module (MIX-M500R) was used to activate
the EVAC zone. This module must be correlated to all the alarm inputs
in the job.

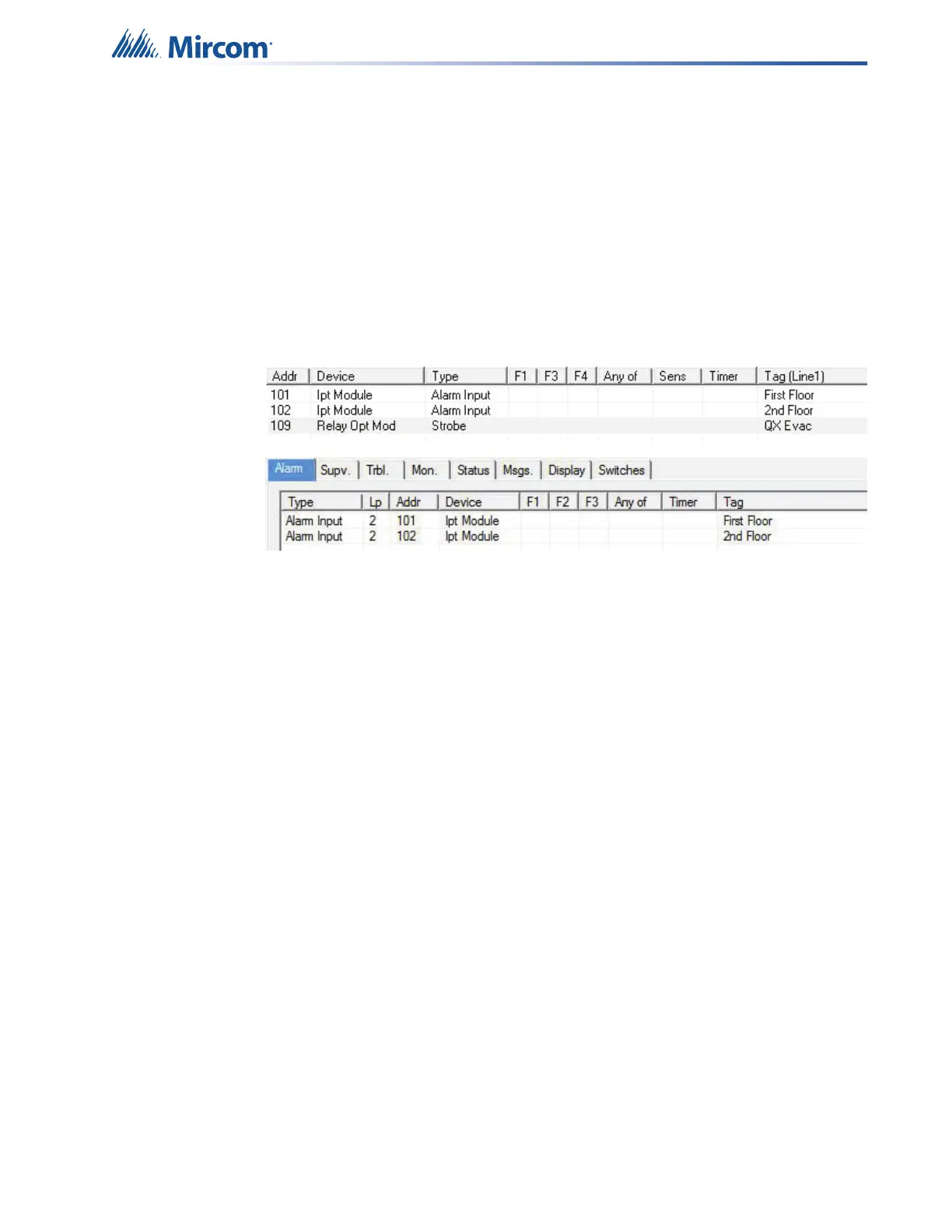

Figure 121 The addresses may vary depending on each application
5. Ensure all the addresses are correct and job is validated. Connect to the FX-2000 panel
and send the job.
