QAS-2X8 Splitter Configuration - QX-mini and FX-3500 - Two Stage
13.2 Wiring

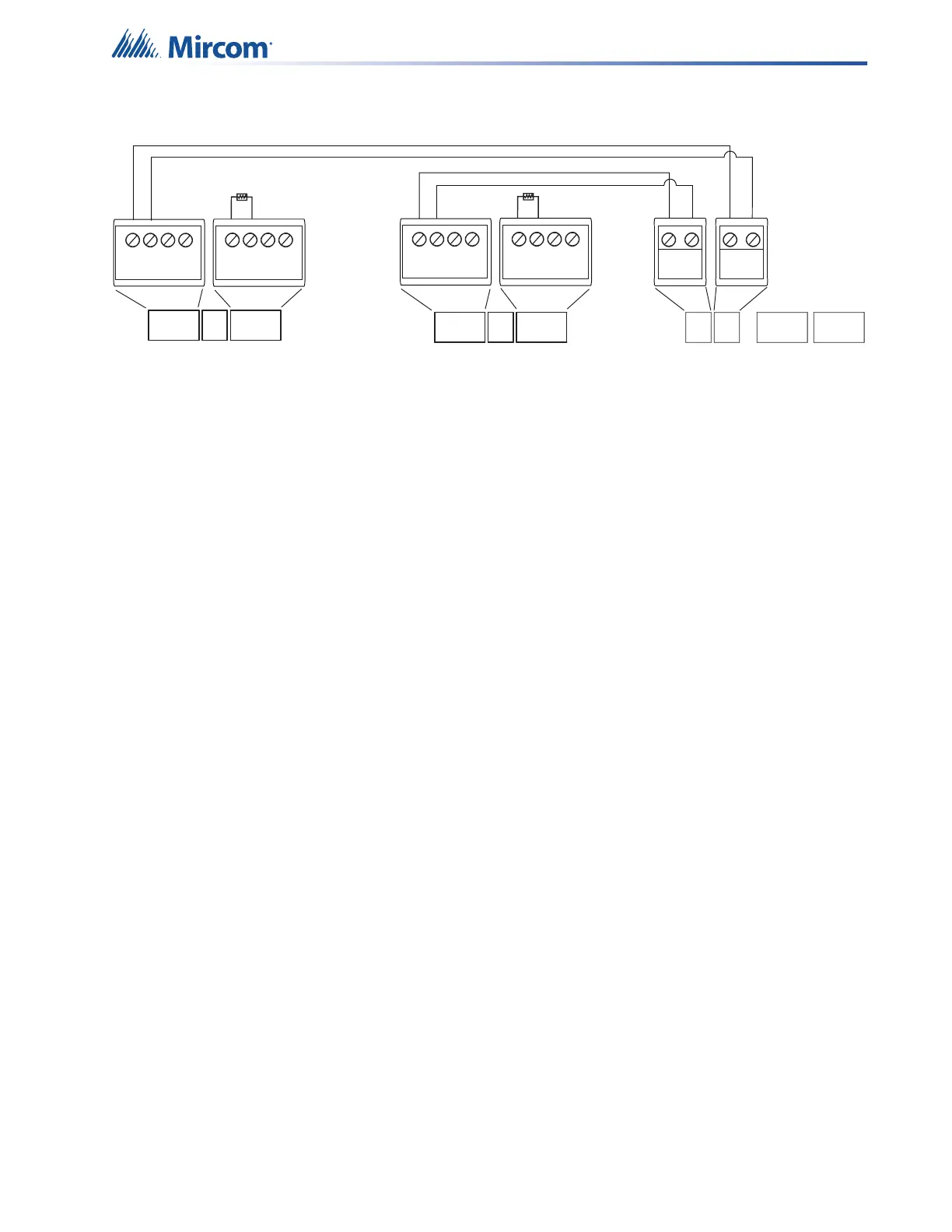

Figure 131 Wiring 2 amplifiers to the splitter
13.3 Configuration Steps
To configure the splitter, you must perform the following steps:
• FX-3500 Configuration
• Assign the AP Start Range
• Configure the Output and Input Modules
• QX-mini Configuration
• Create Job
• Create Zones and Correlate them to Master Splitter Outputs
• Add Inputs for Splitter Outputs
• Create Messages
• Assign Zones and Messages to Inputs
Details on how to perform these steps are in the following pages.
OUTPUT 1
22K EOL
-
+-
OUTPUT 1
+
+
-
INPUT 1
+
-
INPUT 2
-
+-
OUTPUT 2
+
QAD-30 #2
Secondary Amplier
QAD-30 #1
Master Amplier
QAS-2X8
Splitter
+
-
BACKUP
IN
OUTPUT 1
B+B- A+A-
B+B- A+A-
OUTPUT 2
TS1
B+ B-
A+ A-
TS3
TS2
OUTPUT 2
B+ B-
A+ A-
OUTPUT 1
22K EOL
+
-
BACKUP
IN
B+B- A+A-
OUTPUT 2
OUTPUT 1
B+B- A+A-
B+ B-
A+ A-
OUTPUT 2
B+ B-
A+ A-
TS2 TS3 TS1A TS1B
+
-
INPUT 1
+
-
INPUT 2
TS1
TS3
TS2
