Mircom QX-mini Programming Guide

Relay Input - QX-mini and FleX-Net™
37
6.3 Configuration Steps
6.3.1 FleX-Net™ Configuration
1. Open FleX-Net™ configurator.
2. Create a new job or open an existing job.
3. Click on the loop that has been wired to SLC terminal on QX-mini Master.
4. Configure the loop as shown in the window below.
Note: In this particular example, relay output module (MIX-M500R) was used
to activate the EVAC zone. This module must be correlated to all the
alarm inputs in the job.

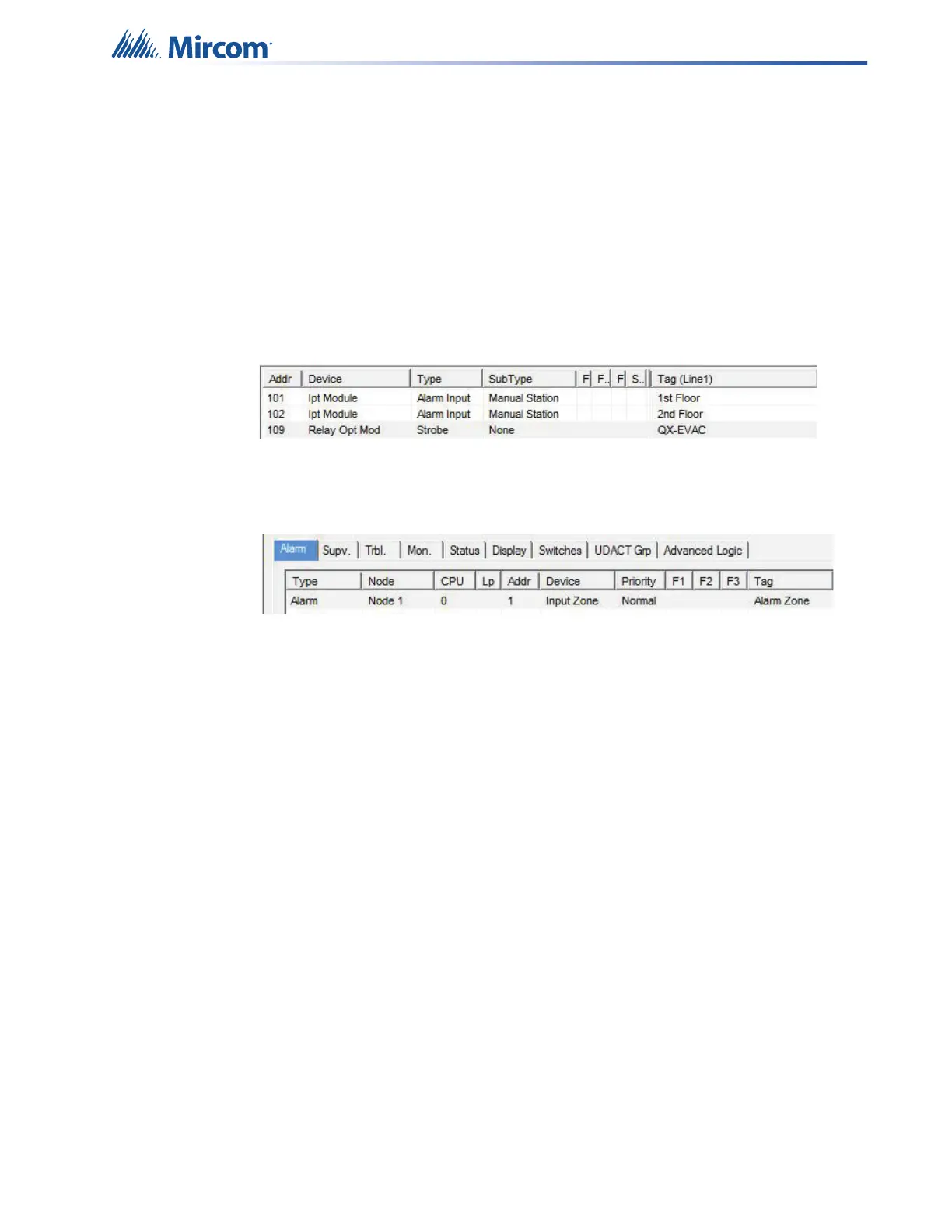

Figure 54 The addresses may vary depending on each application
5. Create an alarm input zone and correlate it to relay module dedicated for QX-mini zone
activation.
Figure 55 Alarm input zone
6. Ensure all the addresses are correct and job is validated. Connect to the FleX-Net™
panel and send the job.
