SLC Integration - QX-mini and FX-2000 - Single Stage
77
11.3 Configuration Steps
11.3.1 FX-2000 Configuration
1. Open FX-2000 configurator.
2. Create a new job or open an existing job.
3. Click on the loop that has been wired to SLC terminal on QX-mini Master. Ensure there
is enough space for at least seven devices on that loop.
4. Configure the loop as shown in the window below. See section 11.4 on page 81 for
details.
Note: These devices are integrated in QX-mini as “virtual devices” and do
not need to be physically installed on the loop. The number of “virtual
SLC devices” depends on your configuration – you can use as many
as your job requires.

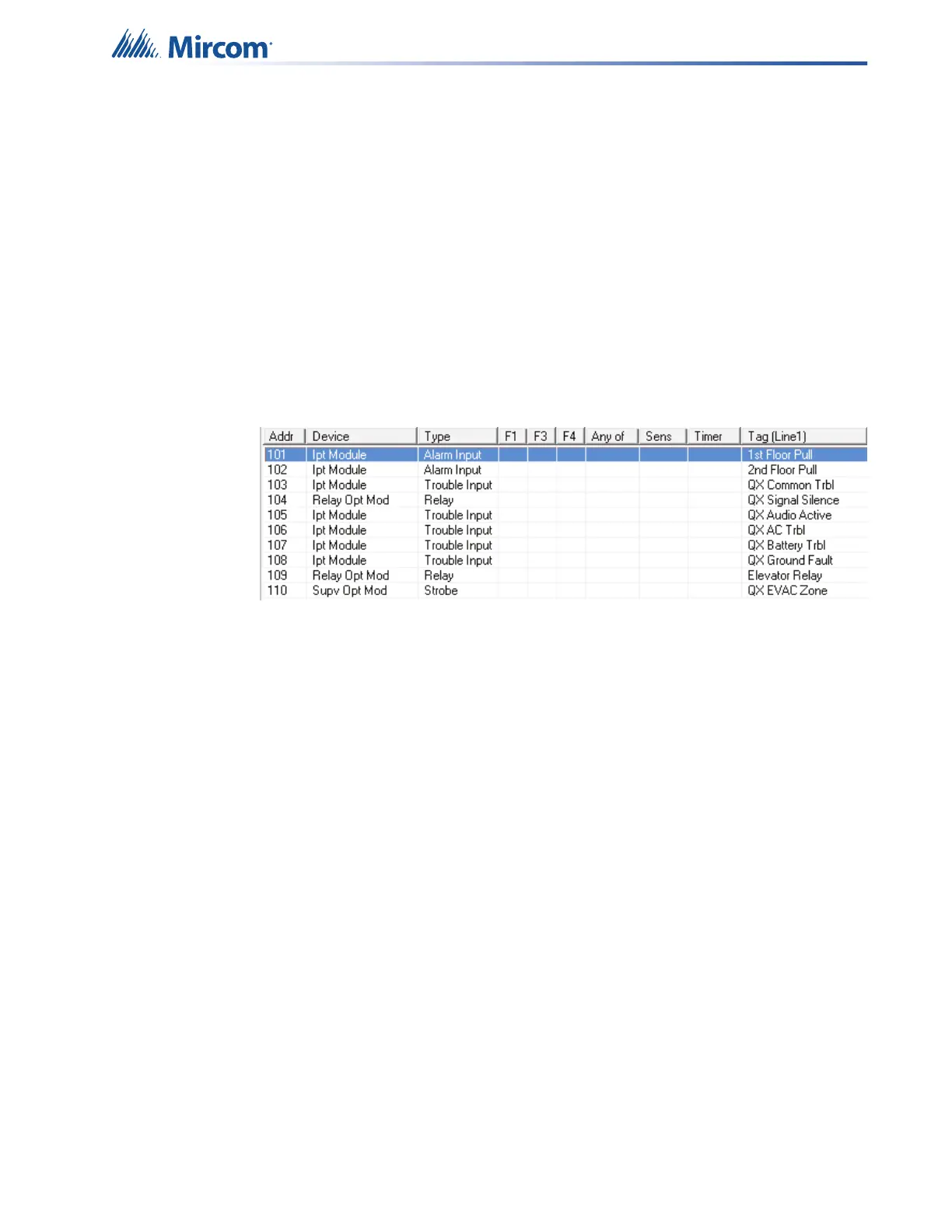

Figure 113 The addresses may vary depending on each application. Ensure
supervised output modules to activate QX-mini zones are configured
after reporting features
