Mircom QX-mini Programming Guide

SLC Integration - QX-mini and FleX-Net™ - Two Stage
23
4.3.2 QX-mini Steps
Note: Until the QX-mini Master is connected and configured, missing device
troubles can be ignored.
1. Open MGC ECS configurator.
2. Open an existing job or create a new job.
3. Select a unique password that will be assigned to the job specifically.
4. Define timing for page inhibit delay as per requirements.
5. Select either Class A or Class B depending on the inter-panel wiring.
6. Click on “New Job” or “Edit Job” for an existing file and choose the SLC Type (Series:
FX-3500/FX-2000/FleX-Net™/MR-3500).

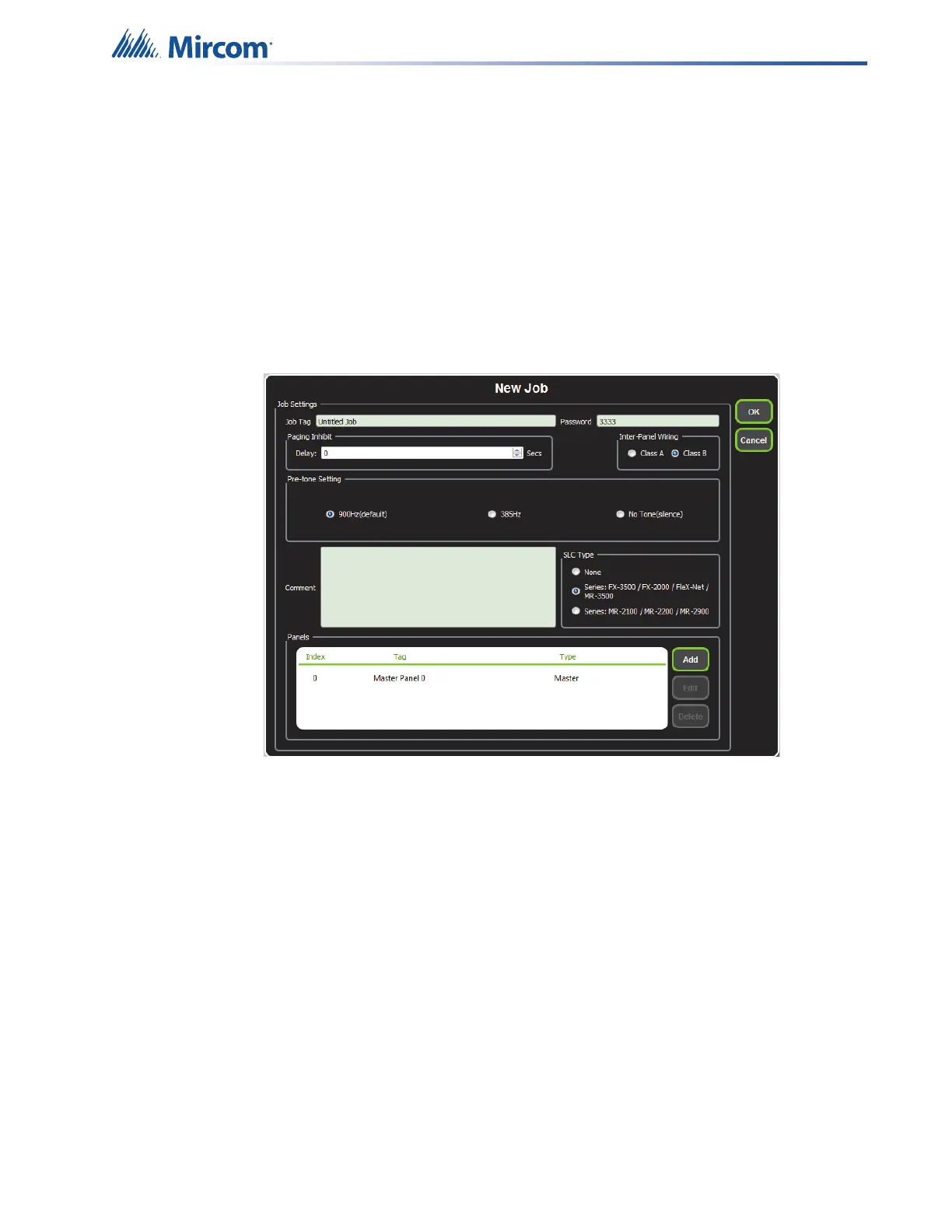

Figure 33 New Job window
7. Click on “Master Panel 0” and then click “Edit”.
