Mircom QX-mini Programming Guide

24
SLC Integration - QX-mini and FleX-Net™ - Two Stage

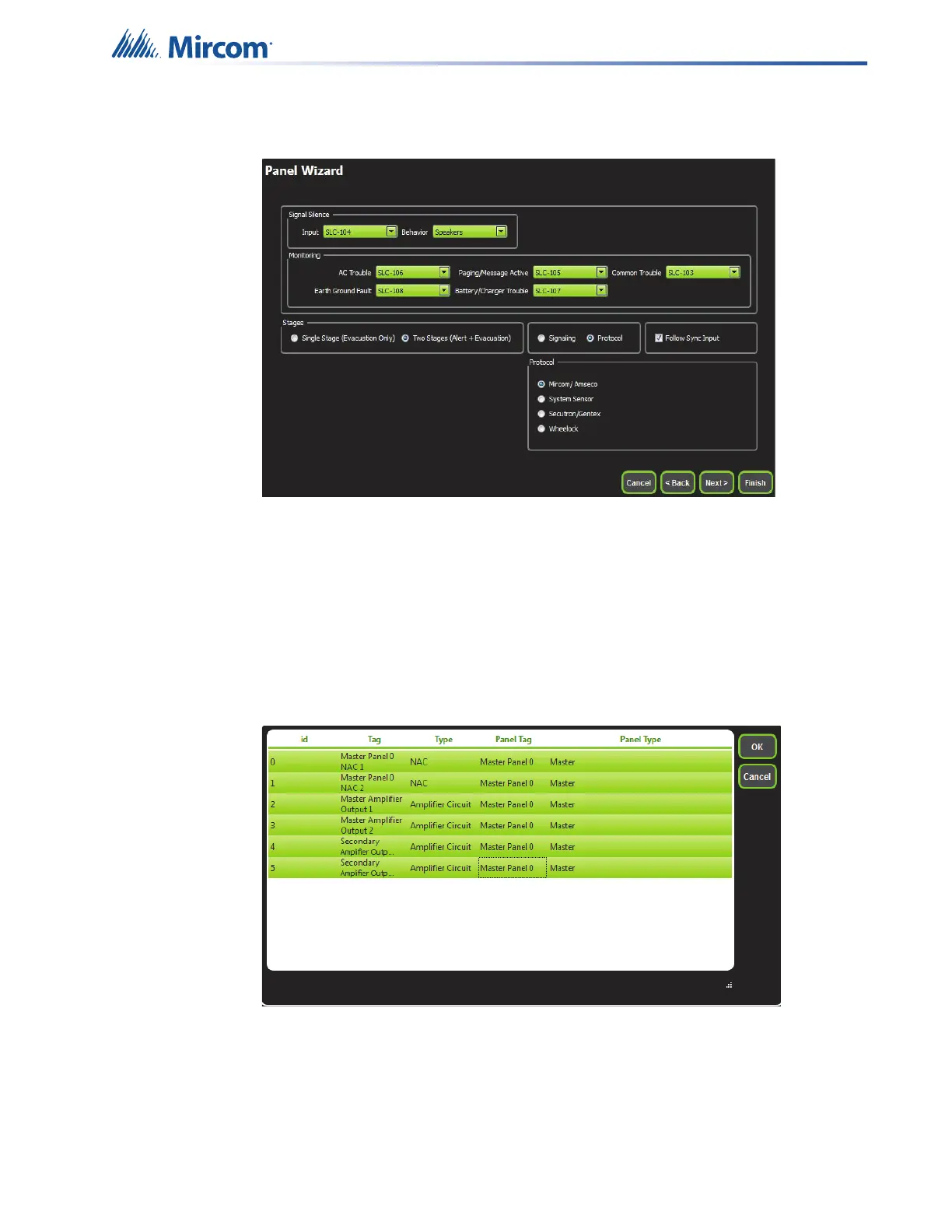

8. Click next until the following window appears. Choose corresponding addresses as
FACP for each reporting function. See section 4.4 on page 26 for details.
Figure 34 Configure all the reporting addresses corresponding to addresses on
FACP
Note: Under signal silence, three different behaviors can be selected: All,
Speakers, Horn & Strobes. “All” turns off all the outputs, “Speakers”
turns off speaker outputs only, and “Horn & Strobes” turns off NAC’s
when signal silence on FACP is pressed.
9. If NAC’s on FACP need to be in sync with NAC’s on QX-mini, select appropriate stage,
strobe protocol, and select “Follow Sync Input”.
10. Create zones as per requirement and correlate them to NAC’s and speaker outputs.
Figure 35 Create zones
