30
SLC Integration - QX-mini and FleX-Net™ - Single Stage

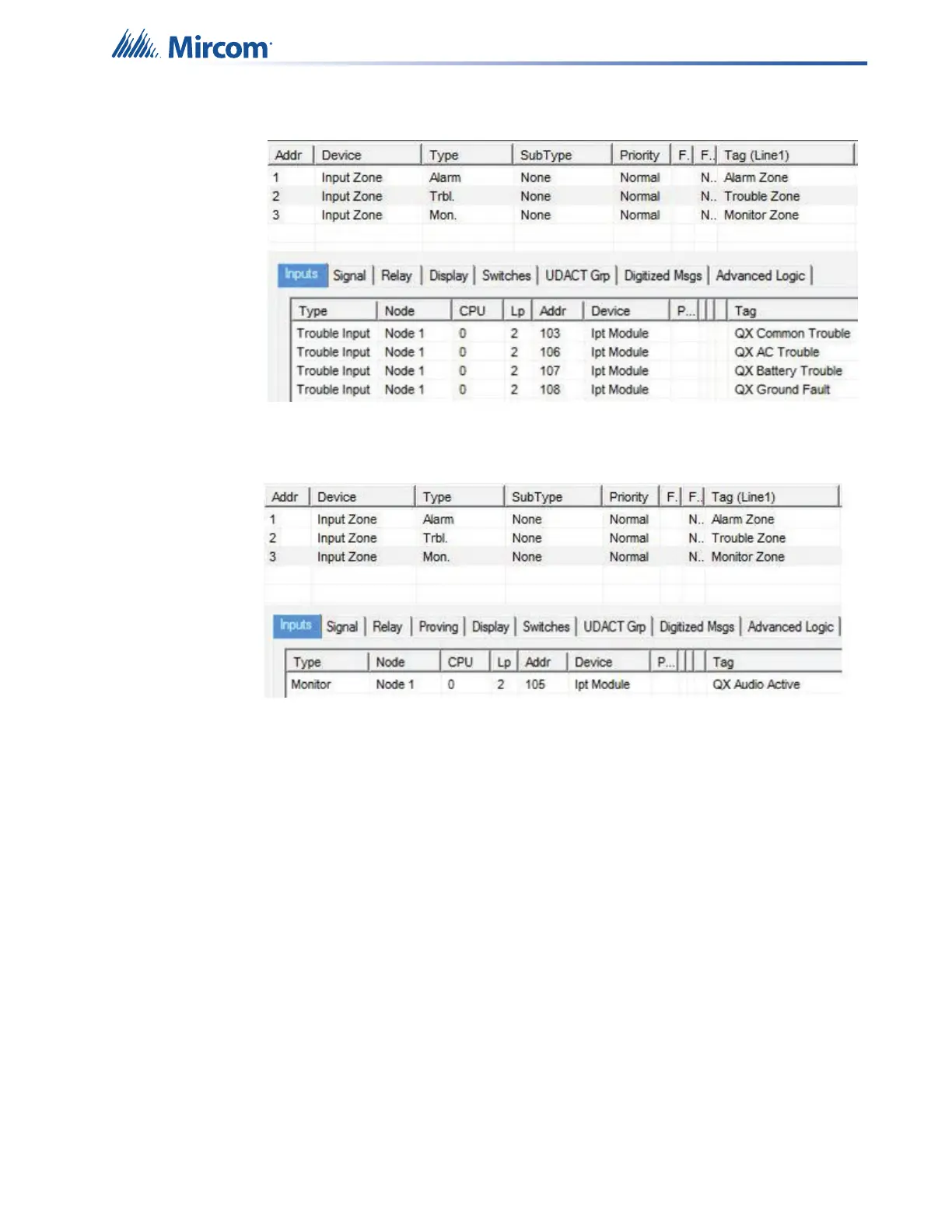

7. Correlate “Trouble” zone to all trouble input devices as shown below.
Figure 45 Trouble zone correlations
8. Correlate “Monitor” zone to all monitor inputs.
Figure 46 Monitor zone correlations
9. Ensure all the addresses are correct and job is validated. Connect to the FleX-Net™
panel and send the job.
