11. Click on panel inputs, click on the ‘+’ sign. Select Panel input address to activate EVAC
zone. Ensure this address corresponds to “supervised output module” in Figure 43.

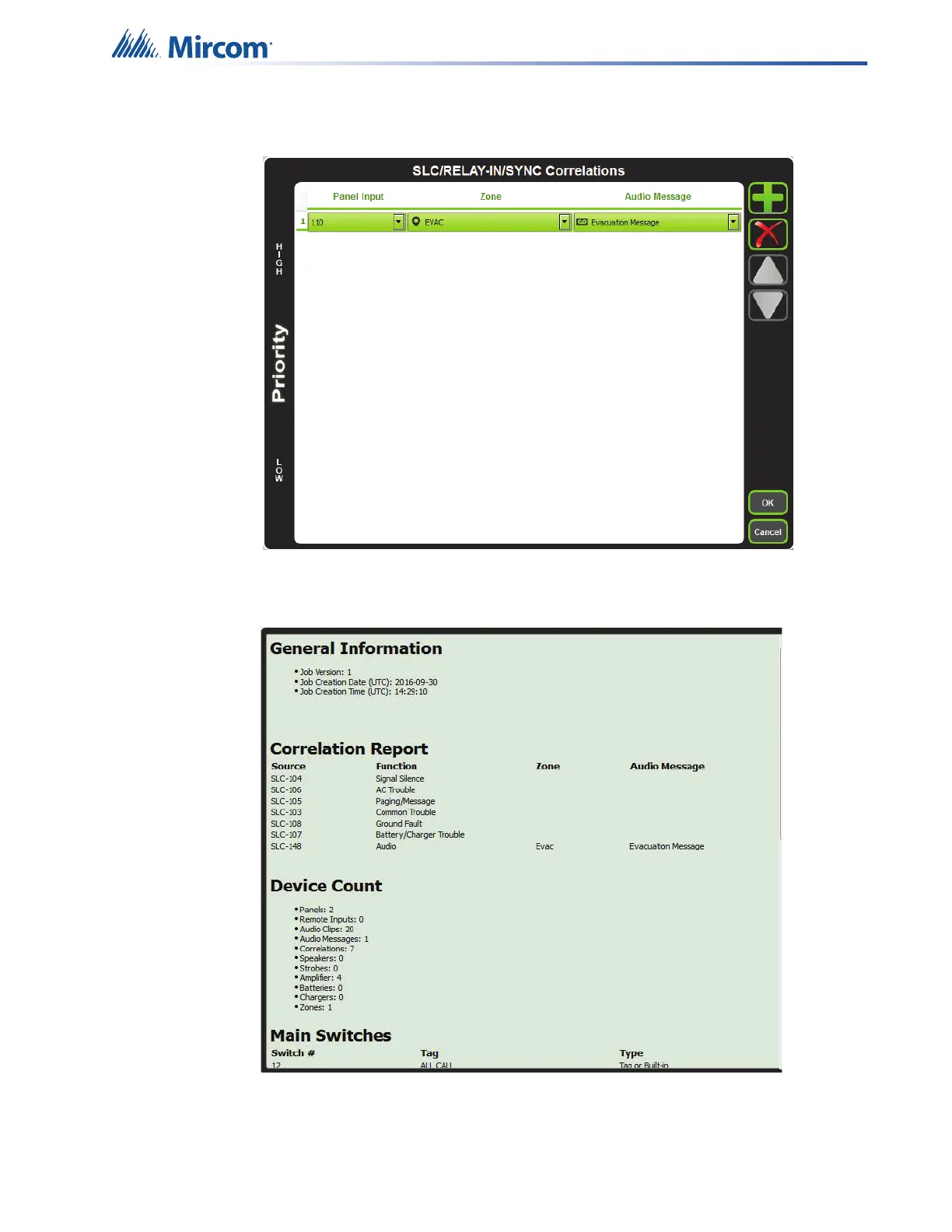

Figure 50 SLC-RELAY-IN/SYNC Correlations
12. All the correlations in job file can be viewed in “Report” as shown below.
Figure 51 Report
13. Save the job, connect to QX-mini and send the job.
14. After job has been successfully sent to the panel, disconnect the USB connector.
