SLC Integration - QX-mini and FX-3500 - Two Stage
13. Click on panel inputs, click on the ‘+’ sign. Select Panel input address to activate EVAC
and Alert zones. Ensure this address corresponds to modules in Figure 69. Ensure to
include two audio messages in the job file: Evac and Alert.

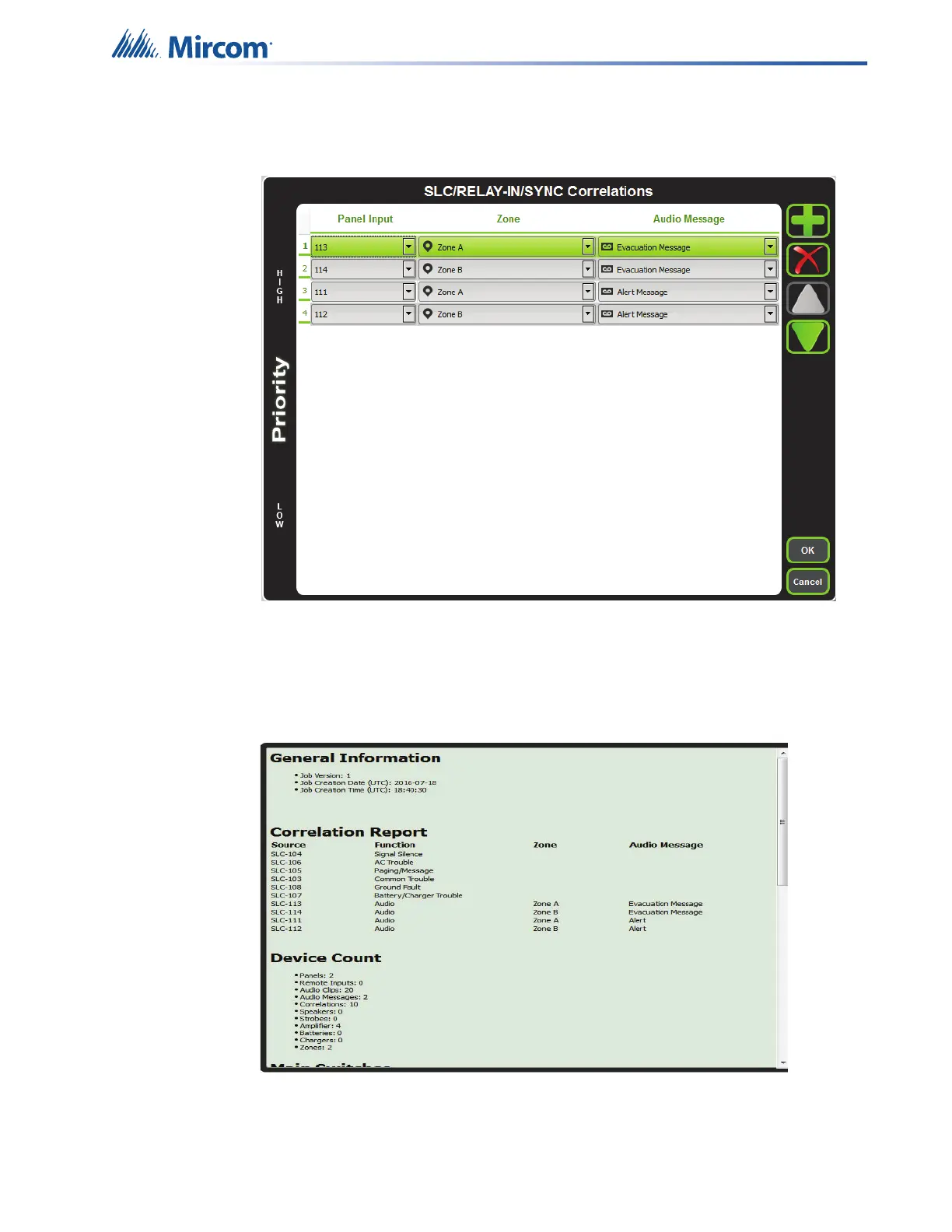

Figure 75 SLC/RELAY-IN/SYNC Correlations
14. In order to see “Page Inhibit” countdown, the feature can be assigned to one of the zone
switches. Right click on the switch and select “Assign paging inhibit”. Flashing of the
LED will indicate countdown of the inhibit.
15. All the correlations in job file can be viewed in “Report” as shown below.
Figure 76 Report
16. Save the job, connect to QX-mini and send the job.
17. After job has been successfully sent to the panel, disconnect the USB connector.
To Next Page
