SLC Integration - QX-mini and FX-2000 - Two Stage
Note: If QX-mini system is required to follow sync from FACP, refer to below
diagrams for wiring.

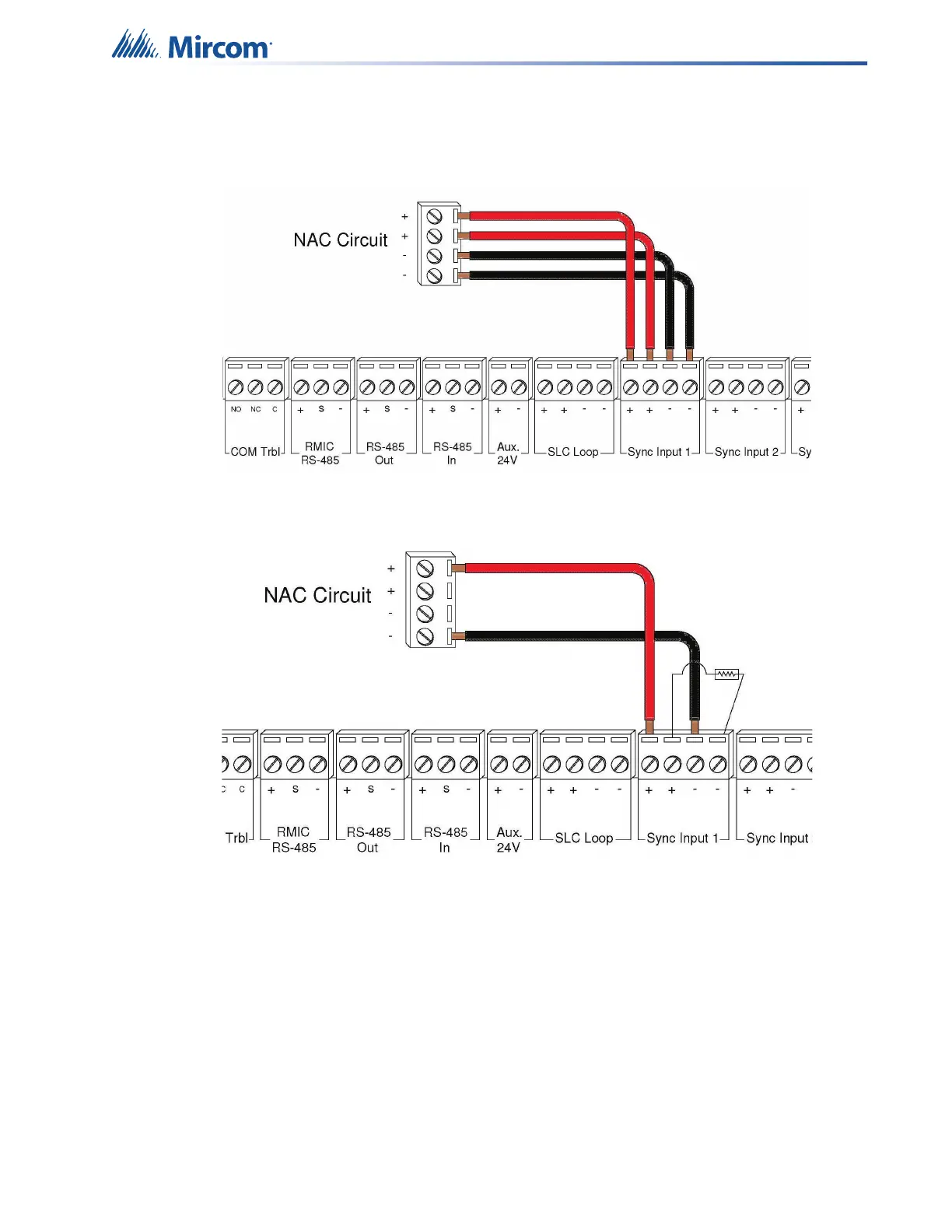

10.2.3 SYNC-Class A
Figure 100 Sync Class A
10.2.4 SYNC-Class B
Figure 101 Sync Class B
