Mircom QX-mini - Main Board LED Indicators

88
Relay Input - QX-mini and FX-2000

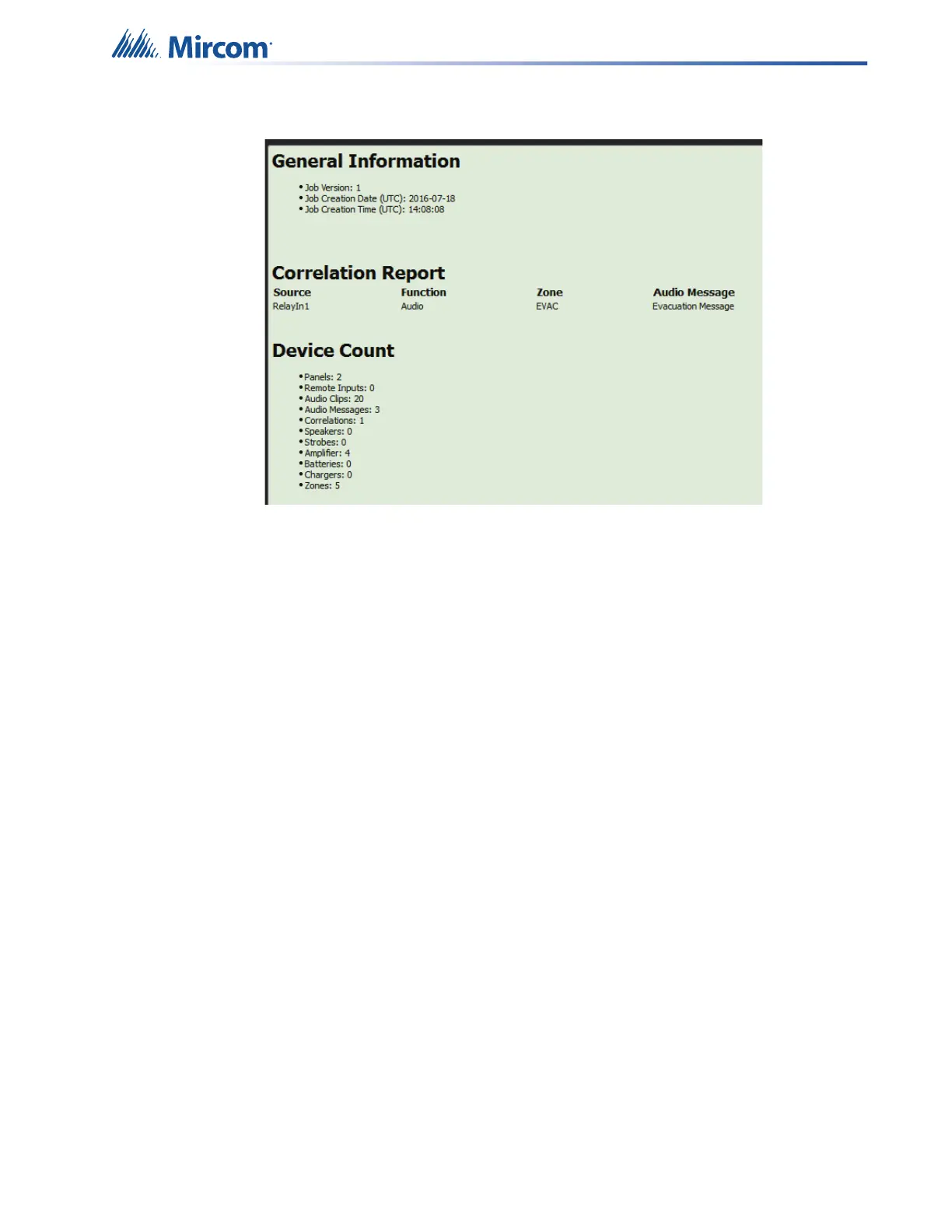

13. All the correlations in job file can be viewed in “Report” as shown below.
Figure 128 Report
14. Save the job, connect to QX-mini and send the job.
15. After job has been successfully sent to the panel, disconnect the USB connector.
