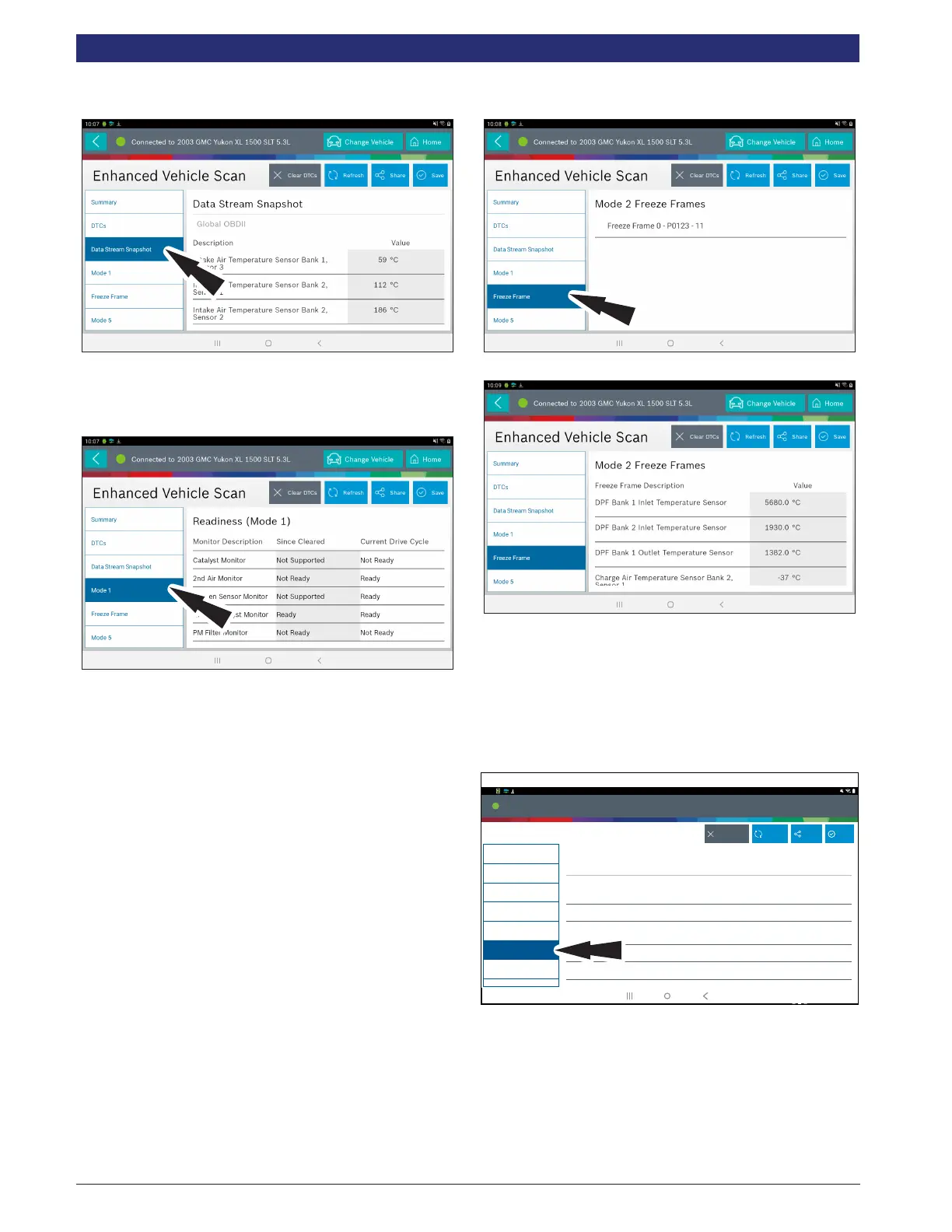

Data Stream Snapshot
Data stream Snapshot, is a current view of the onboard
vehicle sensors.
Mode 1 (Readiness Monitor)
Readiness Monitor Tests displays the results from the
continuous monitors available on the selected vehicle. There
are three states: ready, not ready, and not supported. If the
monitor is not ready, a drive cycle must be completed prior to
running this test. For more information regarding drive cycles,
refer to diagnostic functions Mode 1 readiness.
Freeze Frame
1. Select a frame.
Mode 2 displays recorded data in the form of a DS snapshot
by the vehicle’s computer when specic DTC are set and the
MIL is illuminated.
Mode 5 (Oxygen sensor tests)
Mode 5 views O2 sensor monitor test results.
Connected to 2007 Jeep Wrangler Unlimited X 3.8L
Automated System Test
DTCs
Data Stream Snapshot
Mode 1
Freeze Frame
Mode 5
Mode 6
Clear DTCs
Refresh
Share
Save
10:22
Change Vehicle
Home
Summary
Oxygen Sensor Tests (Mode 5)
Description Min Value Max Units
0.000 0.003 1.275 V
0.000 0.003 1.275 V
0.000 0.003 1.275 V
0.000 0.003 1.275 V
0.000 0.003 1.275
V
Bank 1 Sensor 1
Maximum Sensor Voltage For Test Cycle
Lean To Rich Sensor Threshold Voltage
High Sensor Voltage For Switch Time
Calculation
Minimum Sensor Voltage For Test Cycle
Rich To Lean Sensor Threshold Voltage
Connected
10:22
rt03039
Mode 5 views O2 sensor monitor test results. Mode 5
displays the average of the O2 sensor monitor test results
measured over a period of time. The parameters of this
measurement vary between manufacturers. It may be
necessary to run the vehicle for a period of time to allow the
O2 sensors to fully warm up and begin operating.
Note: Mode 5 is not supported on all vehicles.
