4 - 17
4 INSTALLATION AND WIRING

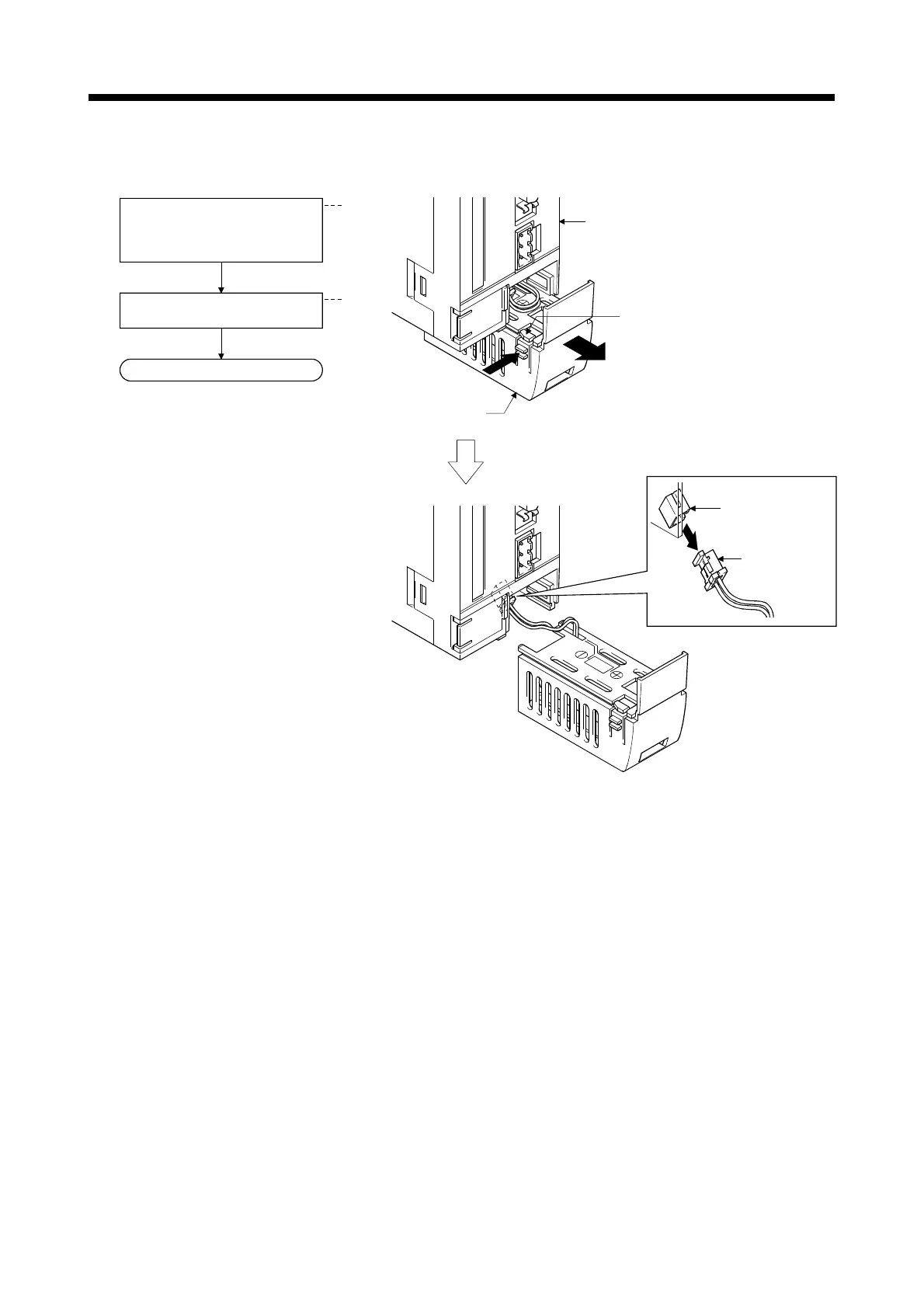

(b) Removal
2)
Battery connector
(Q170MSCPU side)
Battery lead
connector
(Battery side)
3)
Motion controller
Battery holder fixing tab
Pull
1)
Push
Battery holder
(
Note
)
: Do not pull on the lead wire forcibl
y
to remove the connector.
1), 2)
END
3)
Remove the battery lead connector
from battery connector.
Pull the battery holder while
pushing the battery holder fixing
tab, and remove the holder from
the Motion controller.
(Note)
