Mitsubishi Electric Q170MSCPU-S1 - APPENDIX 5.5 Battery Holder

APP - 42
APPENDICES

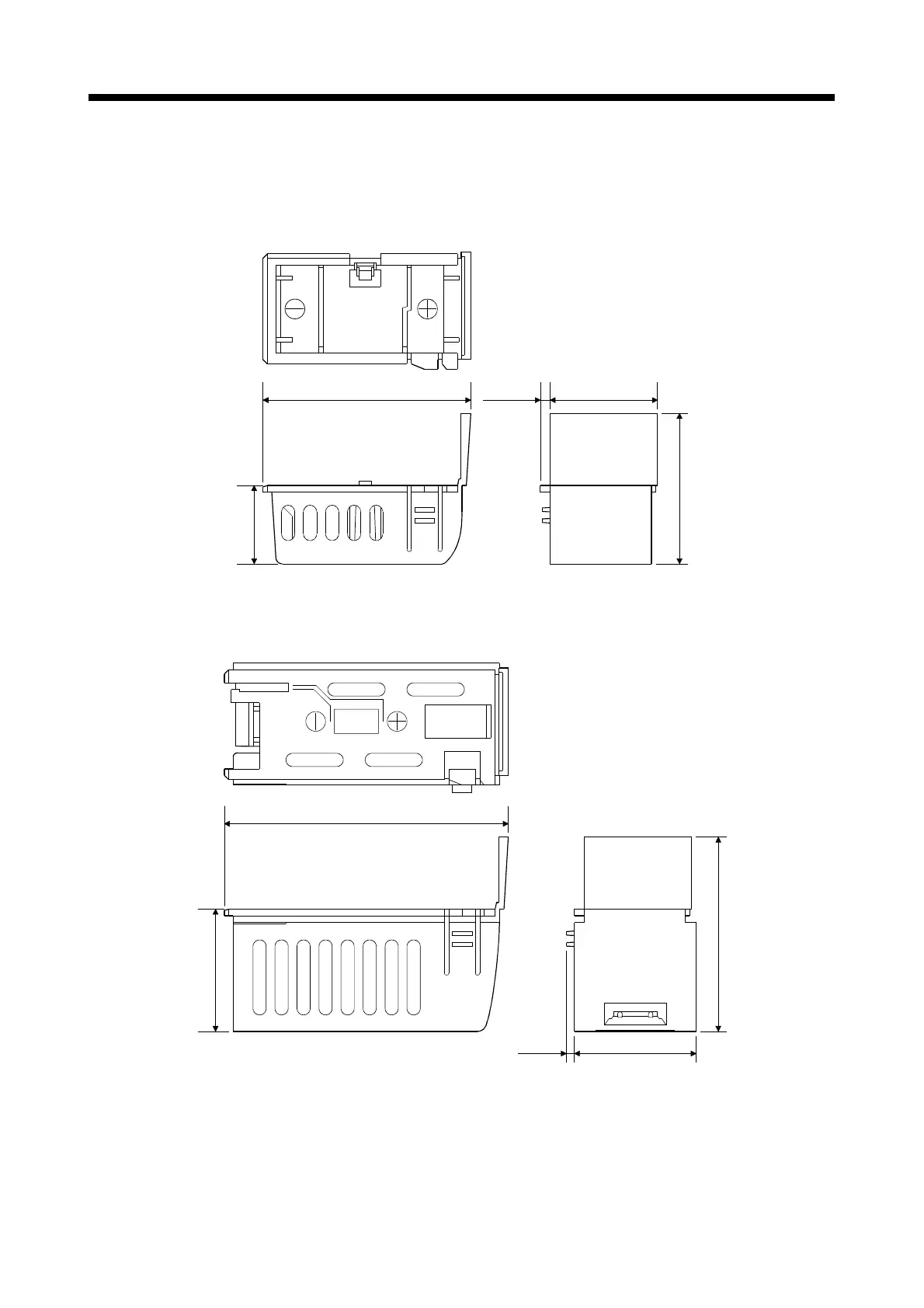

APPENDIX 5.5 Battery holder
(1) Battery holder (For Q6BAT)
[Unit: mm (inch)]
PUSH
24.4(0.96)47.2(1.86) 2.2(0.09)
34.2(1.35)
17.8(0.70)
(2) Battery holder (For Q7BAT)
[Unit: mm (inch)]
PUSH
CABLE
64.5(2.54)
27.7(1.09)2(0.08)
27.8(1.09)
44.2(1.74)
