2Unpacking to installation
Installation 2-9

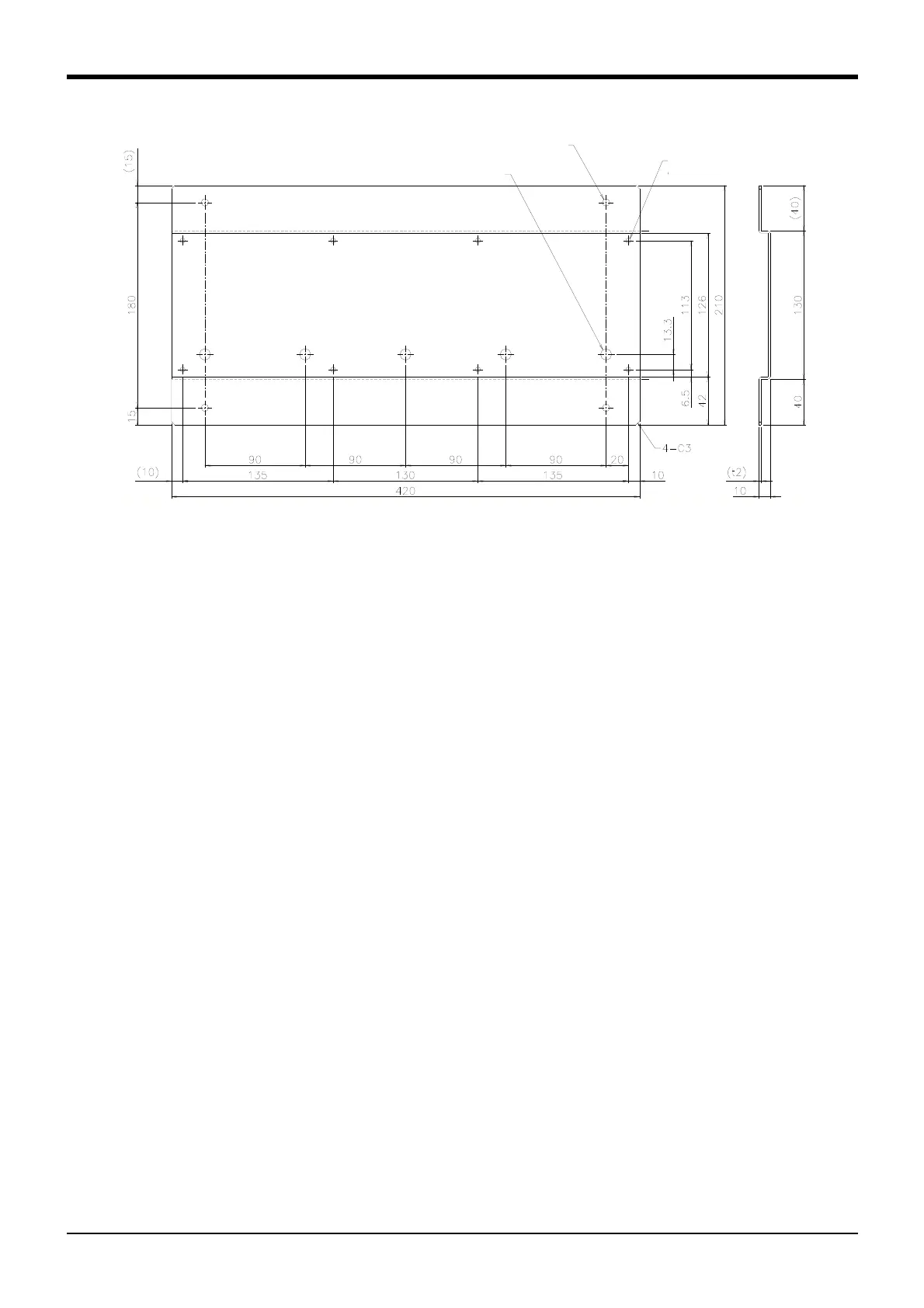

Fig. 2-3 ： Metal plate for fixation to placing vertically (reference) (CR750 controller)
4-φ6.5 hole
5-φ10 hole
8-φ4.5 hole
(Controller installation hole)
