2Unpacking to installation
2-15

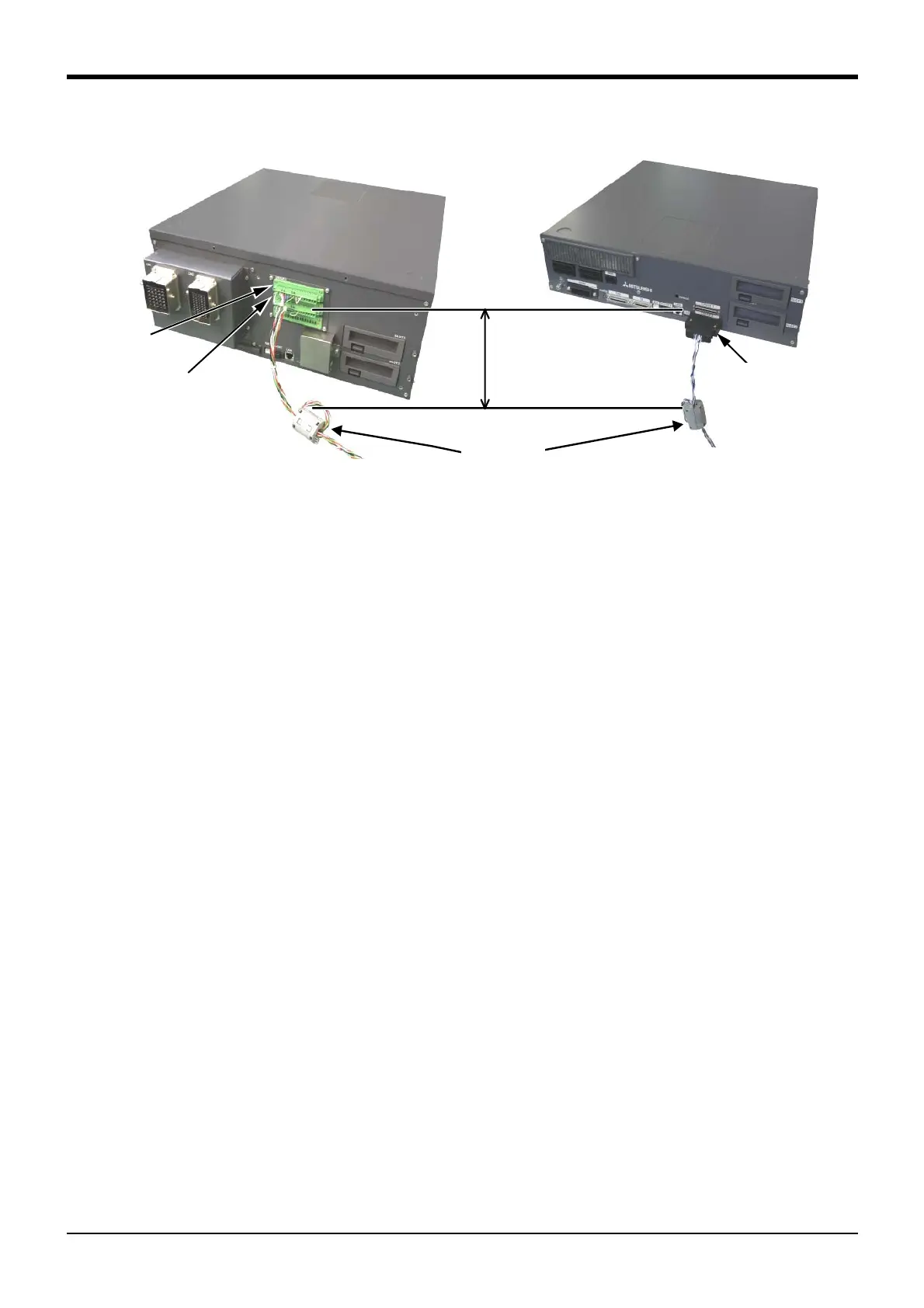

Fig. 2-8 ： Emergency stop cable connection
30cm以内
フェライトコア
(2回通
し
)
<CR750 controller (Rear side)>
CNUSR11
connector
<CR751 controller (Front side)>
CNUSR12
connector
Ferrite core
(Pass twice)
CNUSR2
connector
Within 30cm
