6 UTILITY PACKAGE (GX Configurator-PT)
6.5 Auto refresh setting
[Purpose of operation]
Set the QD70 buffer memory to be automatically refreshed.
There are the following setting items as the auto refresh setting parameters.
[Common to all axes]
• Error status • Warning status
[Axis by axis]
• Current feed value • Current speed • Axis operation status
• Axis error code • Axis warning code • Executing positioning data No.
These auto refresh settings eliminate the need for reading by a sequence
program.
[Startup procedure]
"Start I/O No." "Package name" "Module model name" Auto refresh

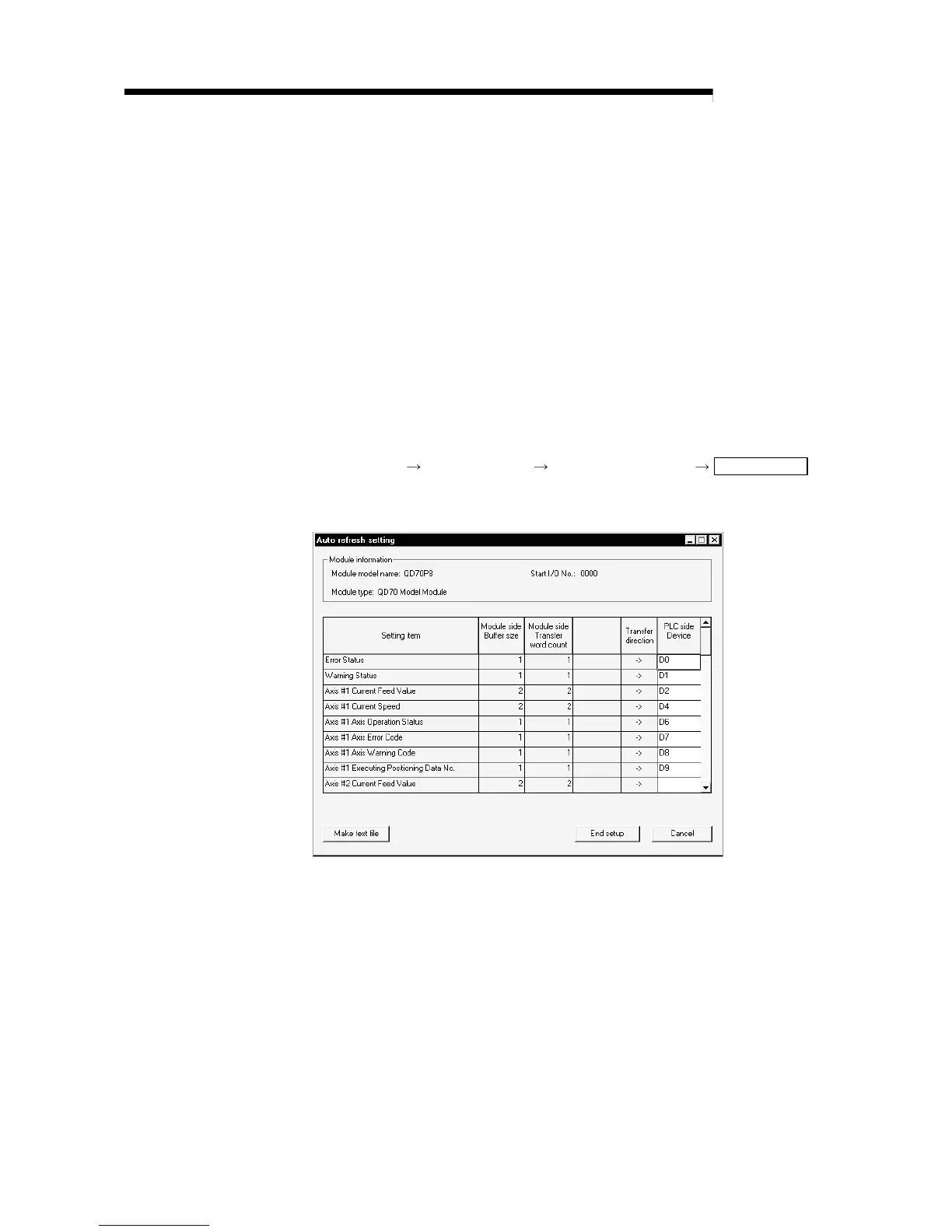

[Setting screen]
