6 UTILITY PACKAGE (GX Configurator-PT)
6.3.3 Starting the intelligent function module utility
[Purpose of operation]
Start the utility from GX Developer, and display the intelligent module parameter
setting module selection screen. The initial setting, auto refresh setting and select
monitor/test module (selecting the module for which monitoring/testing is to be
performed) screens can be started from this screen.
[Startup procedure]
[Tools] [Intelligent function utility] [Start]

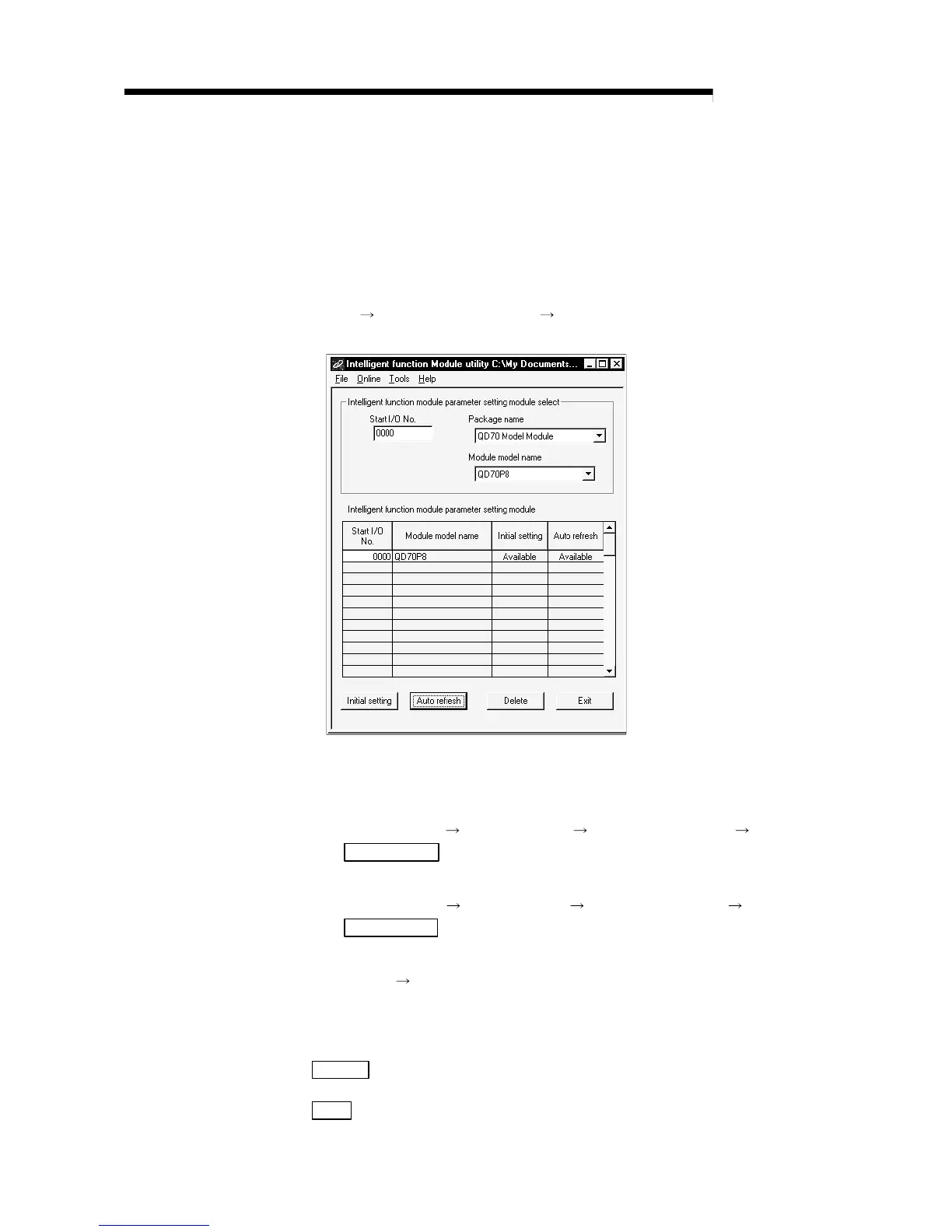

[Setting screen]
[Explanation of items]
(1) How to start each screen
(a) Starting the initial setting
"Start I/O No. *"
"Package name" "Module model name"
Initial setting
(b) Starting the auto refresh setting
"Start I/O No. *"
"Package name" "Module model name"
Auto refresh
(c) Select monitor/test module screen
[Online]
[Monitor/test]
* Enter the start I/O No. in hexadecimal.
(2) Explanation of the screen command buttons
Delete
Deletes the initial settings and auto refresh setting for the selected
module.
Exit
Ends the intelligent module parameter setting module selection screen.
