11
1 Before Using This Product
No. 99MAF029B
y
INC origin

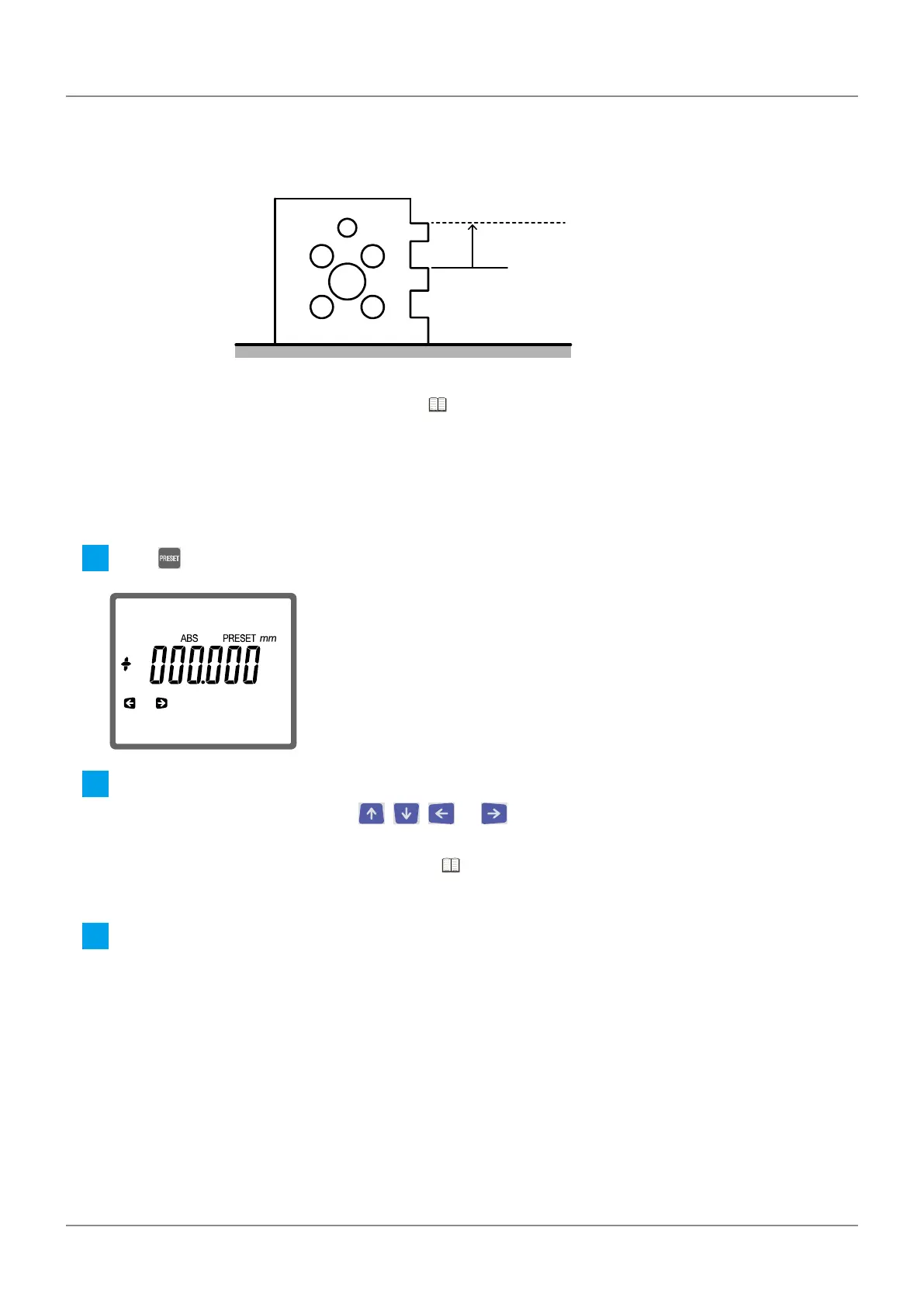

This method uses an arbitrary point on the workpiece as the origin. The specified point acts as the
datum for the measurements and is assigned a value of 0 mm.
Example: Surface a1 is set as the origin (normally 0 mm).
a1
Obtain the measurement relative to a1
Tips
For details about setting the INC origin, "Setting the INC origin" (page 13)
Setting the ABS origin
z
Setting the surface plate as the origin
1
Press .
2
Confirm that [+000.000] is displayed on the LCD screen.
If a different value is displayed, use , , , or to change the value to [+000.000].
Tips
For details about configuring the settings, "Setting a point other than the surface plate as the
origin" (page 12)
3
Slowly bring the probe into contact with the surface plate until a beep sound is made.
»
The origin setup is complete.
To Next Page
