9. Time Chart
9-8
(7) At Occurrence of “Error” or “Caution”

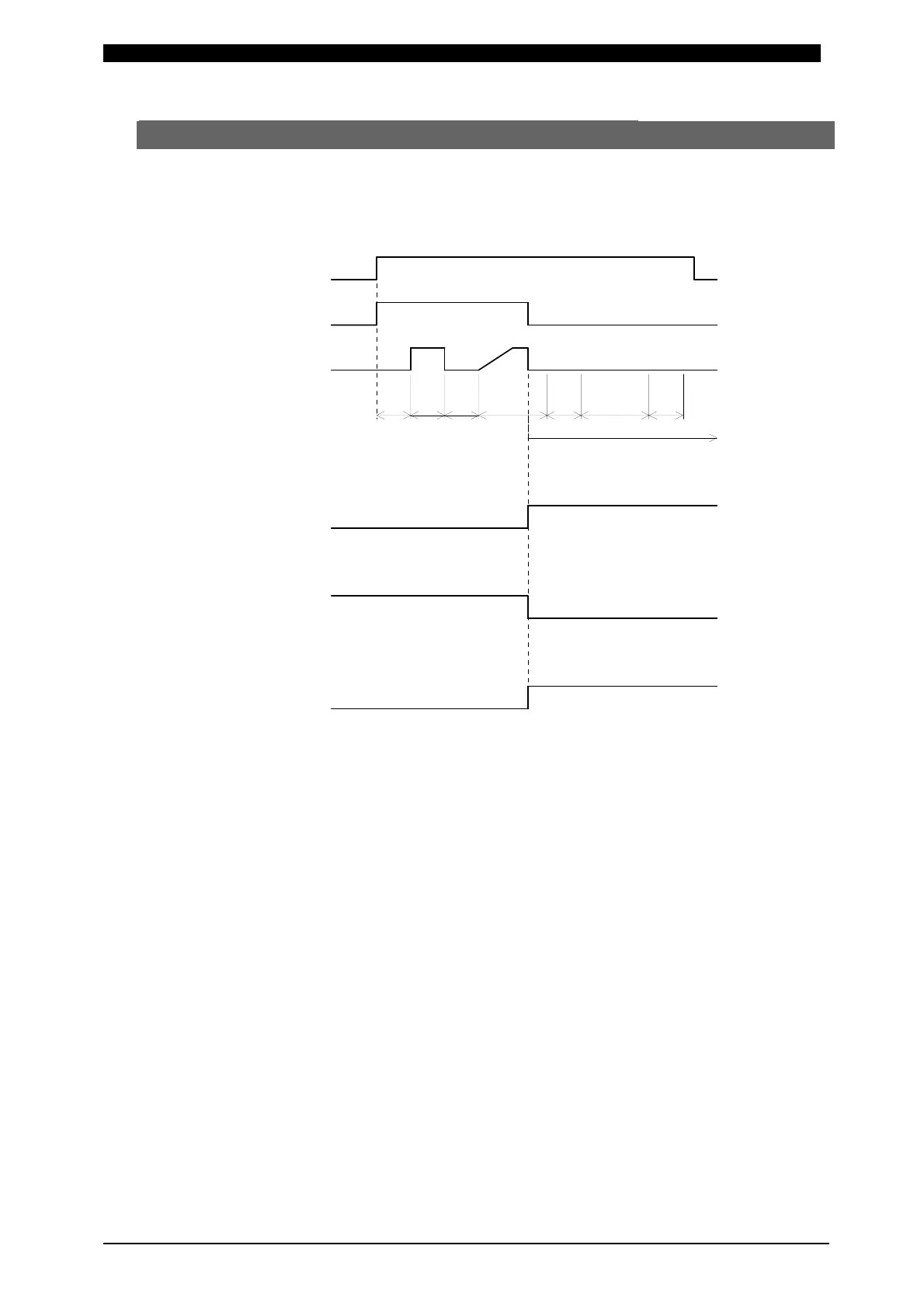

A sample weld sequence is shown, which represents the occasion where NG or
CAUTION is produced while current is supplied.
W2 HOCOW1CPRCSQ
OFF2ND STAGE
SOL2 Output
CAUTION Output
NG OUTPUT:
NG OUTPUT:
NORMALLY OPEN
NG Output
NORMALLY CLOSE
ON
NG Output
OFF
OFF
OFF
OFF
（END Output is not produced.）
Sequence is not performed
after NG or Caution is produced.
Weld Current
