IPB-5000A

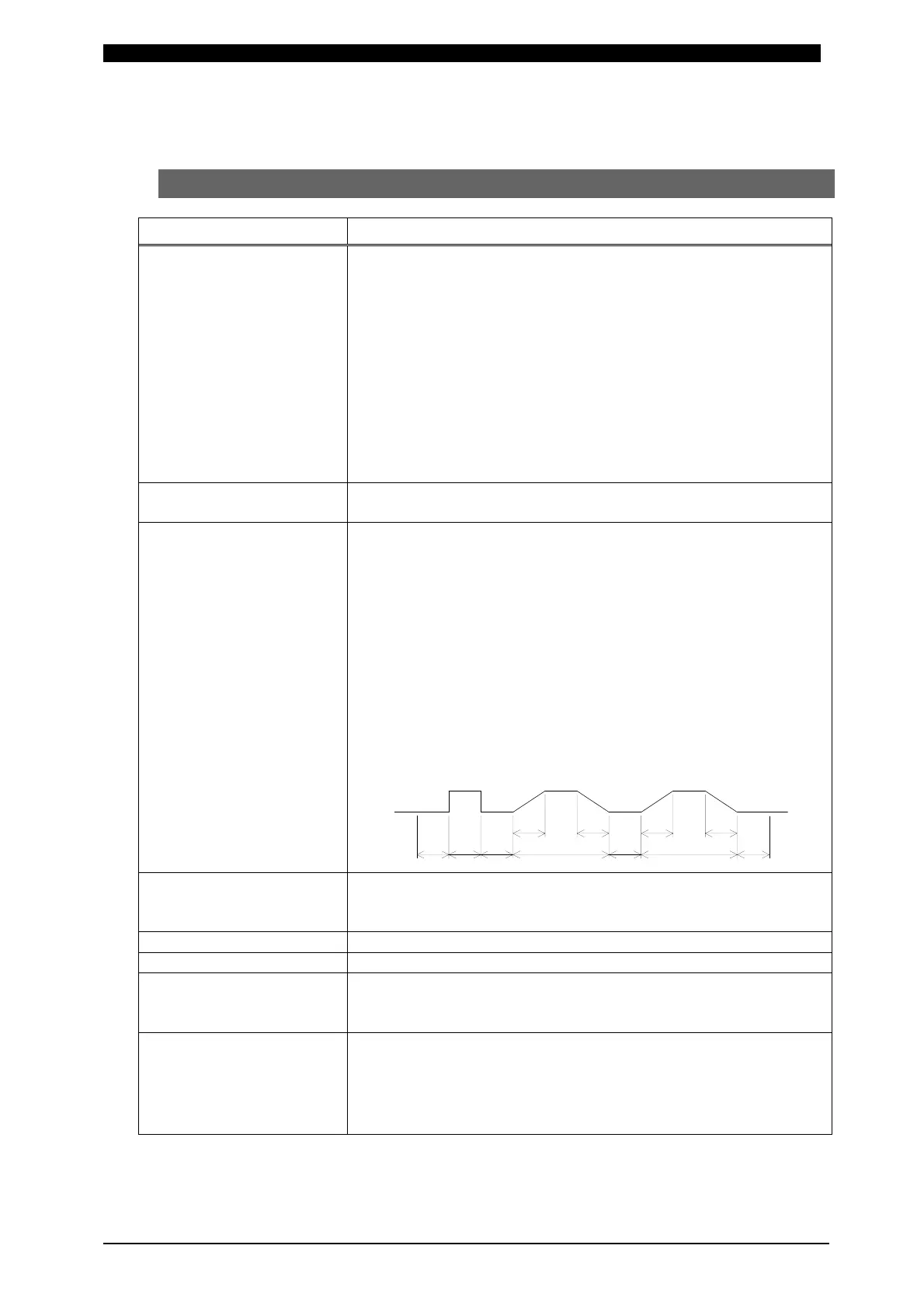

11. Specifications
11-1
11. Specifications
(1) Specifications
Items
Common Specification in IPB-5000A
Weld Current Control
Method
(1) Constant Current Control:
Controls so that weld current can be the set current
(2) Constant Voltage Control:
Controls so that the voltage detected at V sensing cord
connected across electrodes can be the set voltage
(3) Constant Current/Constant Voltage Combination Control:
Either of both methods in which the value arrives at set
value more quickly is prioritized while both Constant
Current and Constant Voltage Control method work
simultaneously
(4) Constant Power Control:
Controls so that power value can be the set power
Schedule Select
Numbers
127 Schedules (1 to 127), Selected by External Signal or on
Panel
Timer Setting Range
Squeeze Time (SQ) : 0000 to 9999ms (1ms each*)
* ”each” represents Increment or Decrement.
PRECHECK Current (RC) : 00.0 to 10.0ms (0.2ms ea.)
PRECHECK Judgment (CP) : 1ms (Fixed)
Upslope 1 (U1) : 000.0 to 500.0ms (0.2ms ea.)
Weld Time 1 (W1) : 000.0 to 500.0ms (0.2ms ea.)
Downslope 1 (D1) : 000.0 to 500.0ms (0.2ms ea.)
Cool Time (CO) : 00.0 to 99.8ms (0.2ms ea.)
Upslope 2 (U2) : 000.0 to 500.0ms (0.2ms ea.)
Weld Time 2 (W2) : 000.0 to 500.0ms (0.2ms ea.)
Downslope 2 (D2) : 000.0 to 500.0ms (0.2ms ea.)
Hold Time (HO) : 000 to 999ms (1ms ea.)
Upslope and Downslope are included in Weld Time.
SQ RC CP
U1
W1
D1
CO
U2
W2
D2
HO
Current Setting Range
From 10 to 100% of Transformer maximum current
ITD-360A6: 0.40 to 4.00kA
ITB-780A6: 0.60 to 6.00kA
Voltage Setting Range
0.30 to 9.99V
Power Setting Range
00.2 to 20.0kW
Resistance
PRE-CHECK Function
Weld Time Setting Range : 00.0 to 10.0ms (0.2ms each)
Voltage Setting Range : 0.30 to 9.99V (0.01V ea.)
Current Upper/Lower Limit : 0.00 to 9.99kA (0.01kA ea.)
Monitor Setting Range
Current Upper/Lower Limit : 0.00 to 9.99kA (0.01kA ea.)
Voltage Upper/Lower Limit : 0.00 to 9.99V (0.01V ea.)
Power Upper/Lower Limit : 00.0 to 20.0kW (0.1kW ea.)
Resistance Upper/Lower Limit : 00.0 to 99.9mΩ(0.1mΩ ea.)
Weld Time Upper/Lower Limit : 000.0 to 500.0ms(0.2ms ea.)
