7. Basic Operation
The example of a basic operation is described, using a transformer ITB-780A6 and a
control method of Constant Current Control.
(1) Connect correctly Welding Transformer ITB-780A6 and peripheral equipments to
IPB-5000A, referring to the connection way (5.Installation and Connection).
(2) Turn on the Breaker.

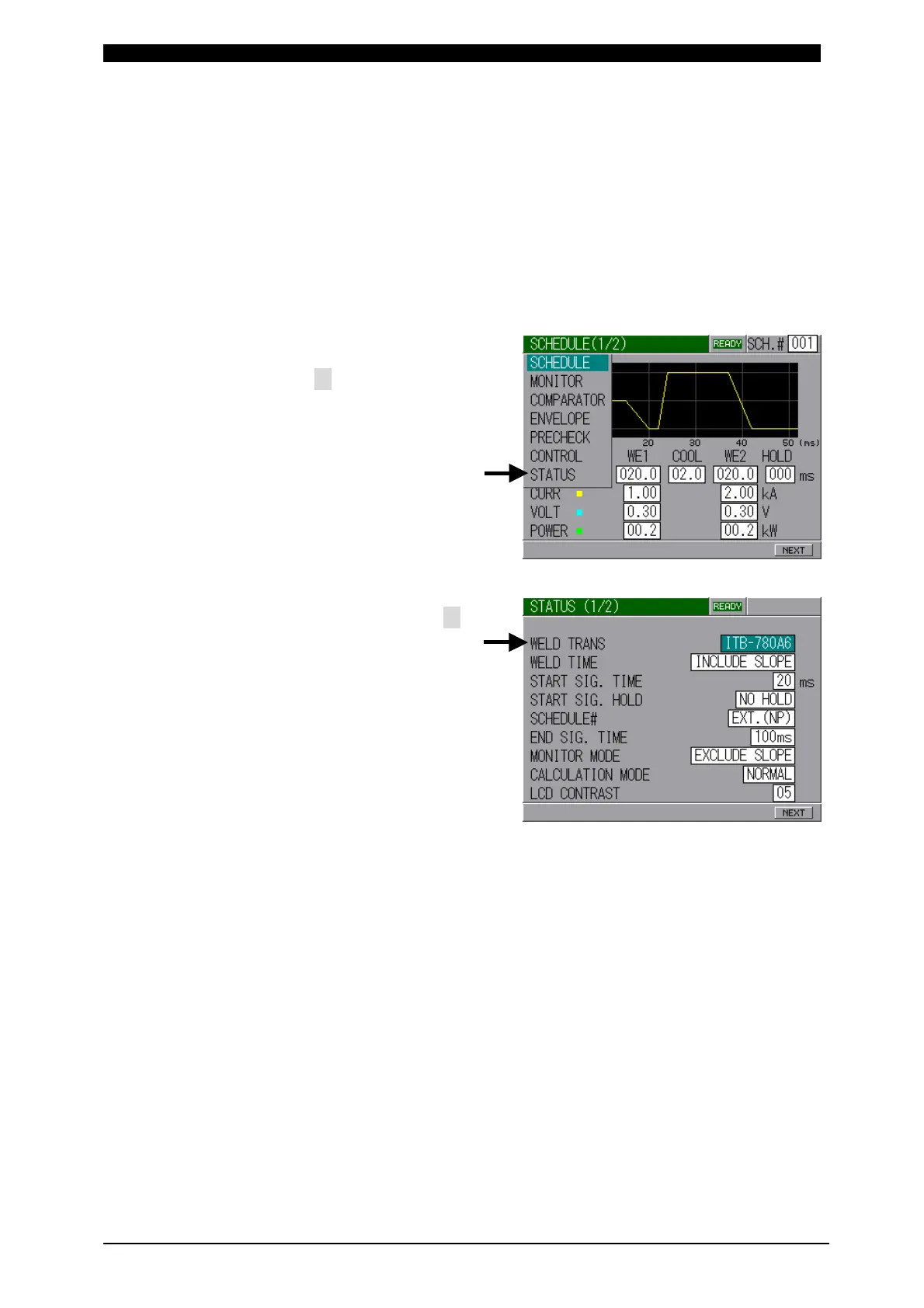

(3) Press MENU key on Front Panel to
display MENU Screen.
Move the cursor ( ) to STATUS and
press ENTER Key.
(4) STATUS Screen is displayed.
Set the function. Move the cursor ( )
to the desired item and press +/- key to
select the function.
Set ITB-780A6 to WELD TRANS.
To Next Page
