MKS 640A/641A - Figure 24: Flow Range Selection

Appendix B: Valve Orifice Selection How To Verif
y
the Orifice Selection
59
3. Use the index number and your maximum flow rate, to determine the orifice size from
Figure 24.
Each line represents the
maximum
flow rate for the orifice. Choose the orifice number
above
your point on the graph to ensure that the orifice can deliver the required flow.
Continuing with the example above, the index number is 175, and assuming a maximum
required flow rate of 1000 sccm, the correct orifice would be number 2.
Note
If the point on the graph falls
close to
the maximum flow rate for an
orifice, you may choose to use the next largest orifice number. However,
a lar
g
er orifice number
p
rovides a hi
g
her minimum flow rate as well. For
example, in an elastomer sealed unit, orifice number 2 covers the range
from 1 to 1000 sccm (N
2
at 1 atm
∆
P), whereas orifice number 3 covers
from 5 to 5000 sccm.
Index Number
Maximum Flow (sccm)
Maximum Flow (slm)
1
10
100
1000
0.001
0.01
0.1
1
10
100
1000
1
10
100
1000
10000
100000
1000000
3
2
1
A

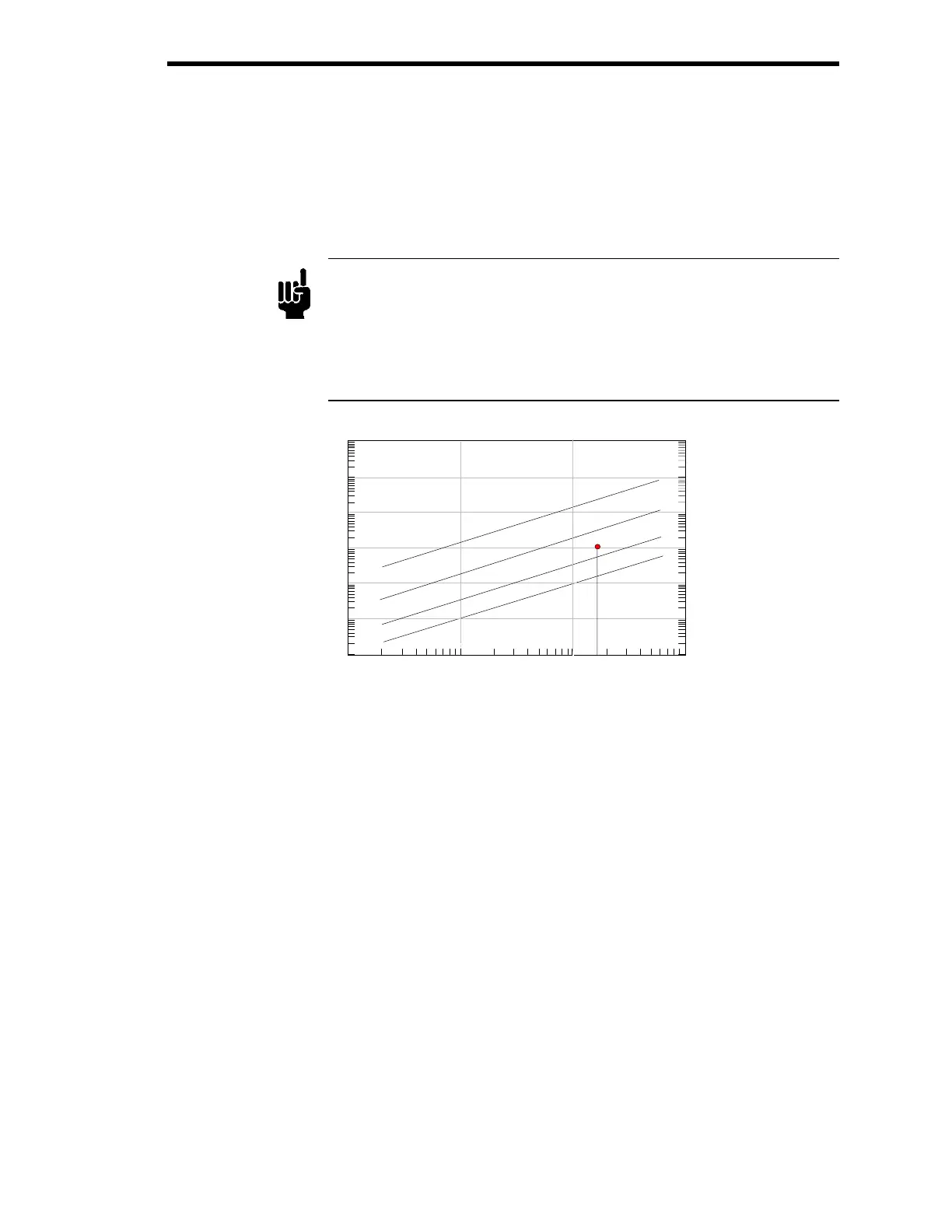

Figure 24: Flow Range Selection
4. Check the orifice size of your 640 controller (included in the model number).
