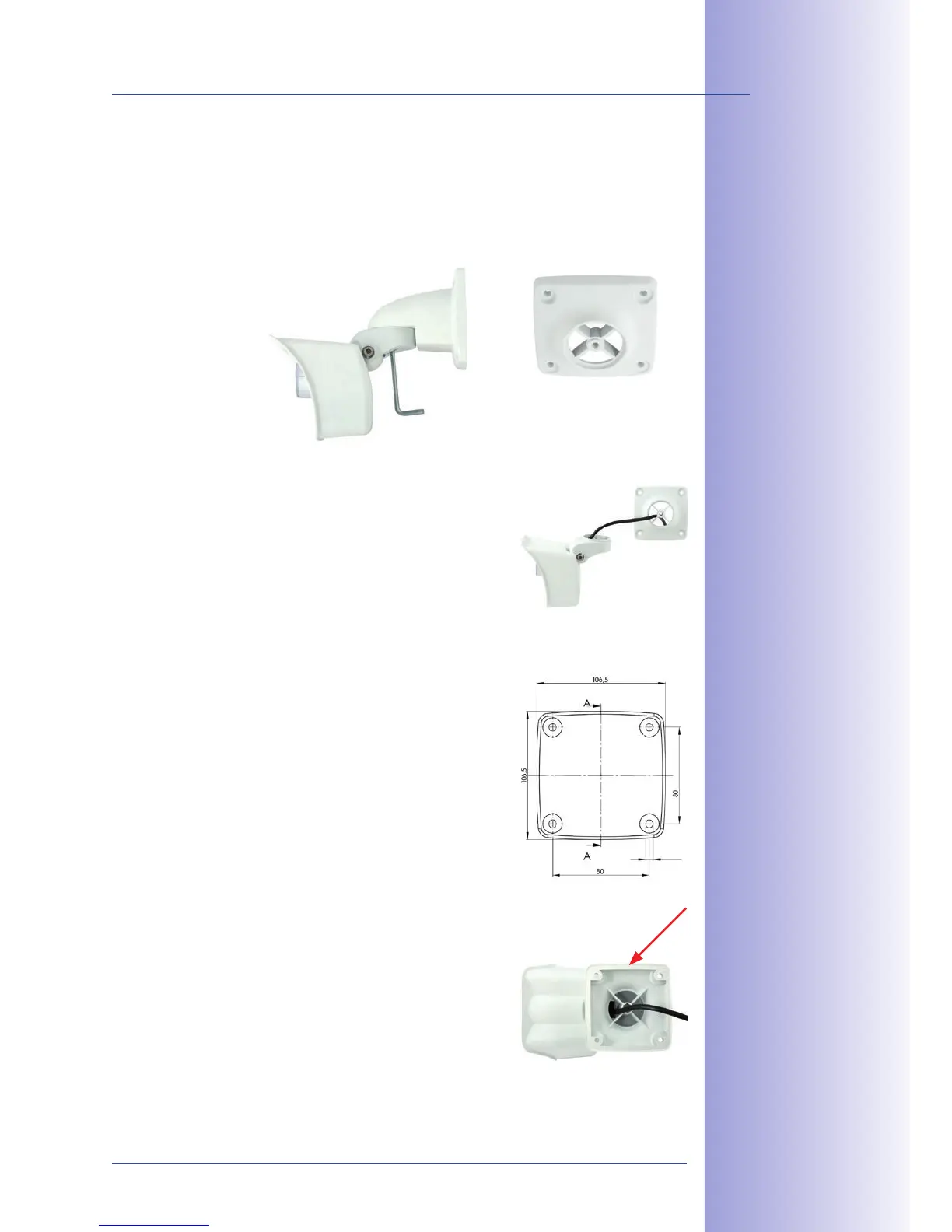

1. Simply remove the lock screw on the central joint and
exchange the wall mount for the supplied ceiling mount. Before fastening the ceiling
mount to the central joint (using the screw of the wall mount), the patch cable is
guided through one of the four openings.
2. Guide
the pre-installed camera patch cable through one of
the four openings in the ceiling mount. This will be
connected later with the network cable using a suitable
adapter, for example, in a pre-installed cavity socket.
3. Use the supplied drilling template for
the camera (found at the end of the manual). Drill the
holes for the supplied screw anchors. Screw anchors
do not have to be fitted if the surface is made of wood.
To secure the mount, the supplied stainless steel hex
head screws will later be screwed directly into the
surface. In order to facilitate screwing in wood, the
positions should first be predrilled using a 2mm drill
bit, for example (drilling depth just slightly less than
screw length).
4. Place the white rubber seal with
the groove on the edge of the ceiling mount.
