The M24M can be shipped from the factory with five MOBOTIX standard lenses (L22,
32, 43, 65, 135) with the CSVario lens or the hemispheric L11 lens. This procedure applies
equally for all lenses. However, the removal/installation of the lock ring is not required for
the M24M-Sec-CSVario nor for lenses with CS or C mounts.
Only lenses with CS or C mounts may be used with the CSVario version of the M24M
(Secure model only). Only standard MOBOTIX lenses (L22, 32, 43, 65, 135) with M14 thread
may be used with standard versions of the M24M (Secure, IT and Basic). With the M24M
180° hemispheric camera, only the hemispheric L11 lens may be used. Upgrading to other
model versions is not possible.

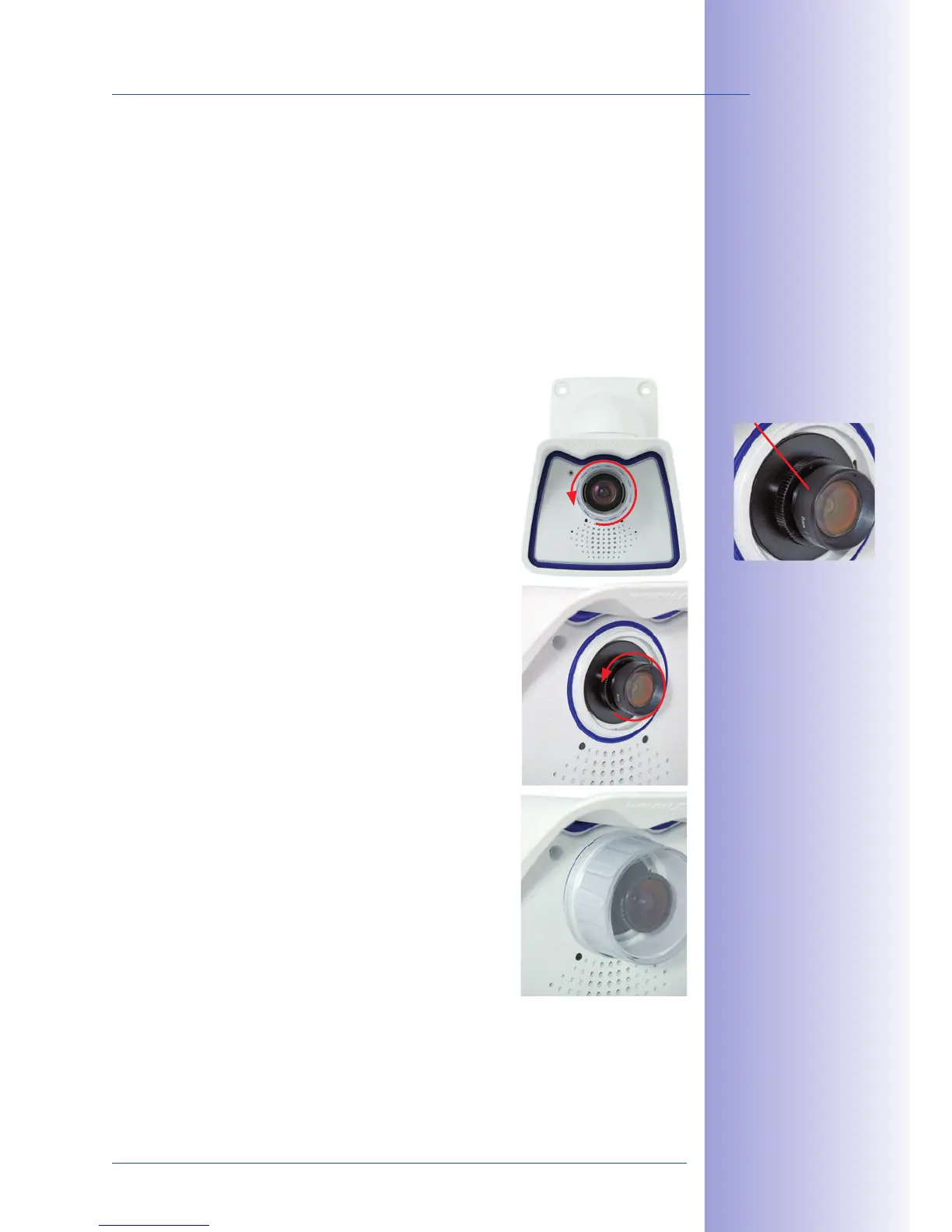

1. Remove the .
2. lens by turning it coun-
terclockwise.
3.
Remove the
.
4.
Unscrew the
and screw it onto the new lens.
5.
.
6.
according to the camera's
live image on the computer monitor. To avoid damaging
the lens mount, never turn the lens too far or with force.
7.
direction to secure the lens.
8.
and clean it,
if required, using a clean, lint-free cotton cloth.
The focusing aid provides a visual aid when setting the image
sharpness of a MOBOTIX camera lens (see Section 4.3.3 Image
and Audio Settings, Quick Controls in the Software Manual).
Lock ring
