3 Mechanical and Electrical Installation NICE5000 User Manual
- 44 -

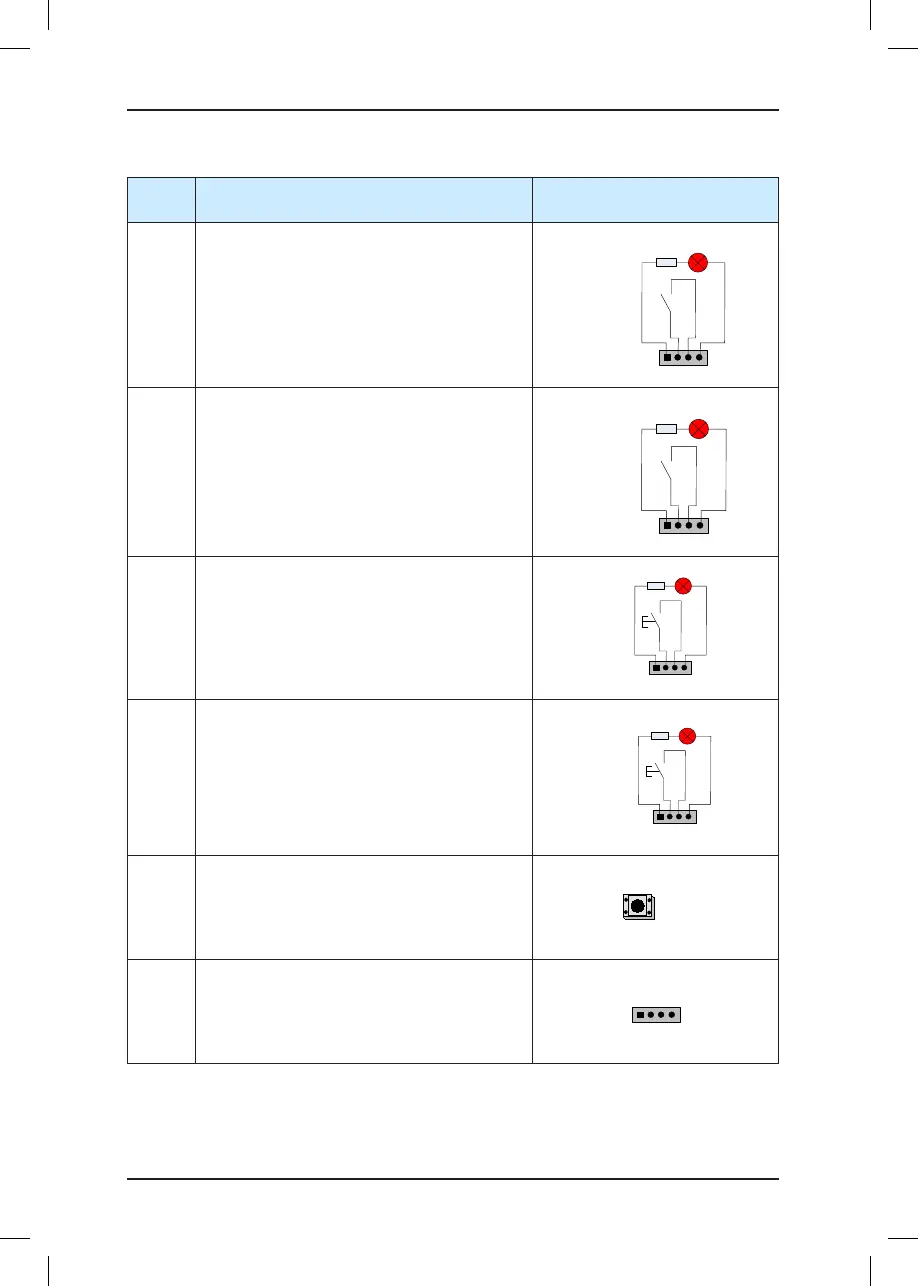

Table 3-6 Input and output terminals of HCB-H
Terminal
Name
Function Terminal Wiring
JP1
Interface for the elevator lock switch and up
arrival indicator
Pins 2 and 3 are for switch input. Pins 1 and 4
are output of the up arrival indicator (24 VDC
output, load capacity: 40 mA).
1 2 3 4
Elevator
lock switch
input
Up arrival
indicator
JP2
Interface for the re emergency switch and down
arrival indicator
Pins 2 and 3 are for switch input. Pins 1 and 4
are output of the down arrival indicator (24 VDC
output, load capacity: 40 mA).
1 2 3 4
Fire
emergency
switch input
Down arrival
indicator
JP3
Interface for the up call button and indicator
Pins 2 and 3 are for up call input. Pins 1 and 4
are power supply for the up call indicator (24
VDC output, load capacity: 40 mA).
1 2 3 4
Up call indicator
Up call
button
JP4
Interface for the down call button and indicator
Pins 2 and 3 are for down call input. Pins 1 and 4
are power supply for the down call indicator (24
VDC output, load capacity: 40 mA).
1 2 3 4
Down call indicator
Down call
button
S1
Button for setting the oor address.
Hold down the button to adjust the oor address
(range 0–56). After you stop pressing, the
address number blinks three times and the
setting is successful.
CN1
Modbus communication and power supply
terminal
Pins 2 and 3 are for Modbus communication.
Pins 1 and 4 are for DC power supply.
To Next Page
