5 System Commissioning and Functions NICE5000 User Manual
- 96 -
Opposite Door Control
Mode
Parameter Setting Function Description
Mode 3
Hall call
independent,
car call manual
control
Fb-00 = 2
F8-24 = N (N > front door
maximum address)
Fb-01 = 325 (Bit0, Bit2,
Bit6, Bit8 = 1)
The corresponding door opens upon
arrival for halls call from this door.
Upon arrival for car calls, the door to
open is selected between the front
door and back door by using the door
switchover switch.
Note: The switchover switch can be
connected to the HCB-B inside the car
or MCB.
Mode 4
Hall call
independent,
car call
independent
Fb-00 = 2
F8-24 = N (N > front door
maximum address)
Fb-01 = 271 (Bit0, Bit1,
Bit2, Bit3, Bit8 = 1)
The corresponding door opens upon
arrival for halls call and car calls from
this door.
Note
In the re emergency, inspection, and re-leveling state, the opposite door is under simultaneous
control rather than independent control.
HCB addresses of the front door = actual physical addresses.
HCB address of the back door = F8-24 + 1, F8-24 > maximum HCB address of front door
Take a 20-oor elevator as an example:
HCB addresses of the front door is 1–20; assume that F8-24 is 24 (larger than 20), and HCB
addresses of the back door is 25–44.

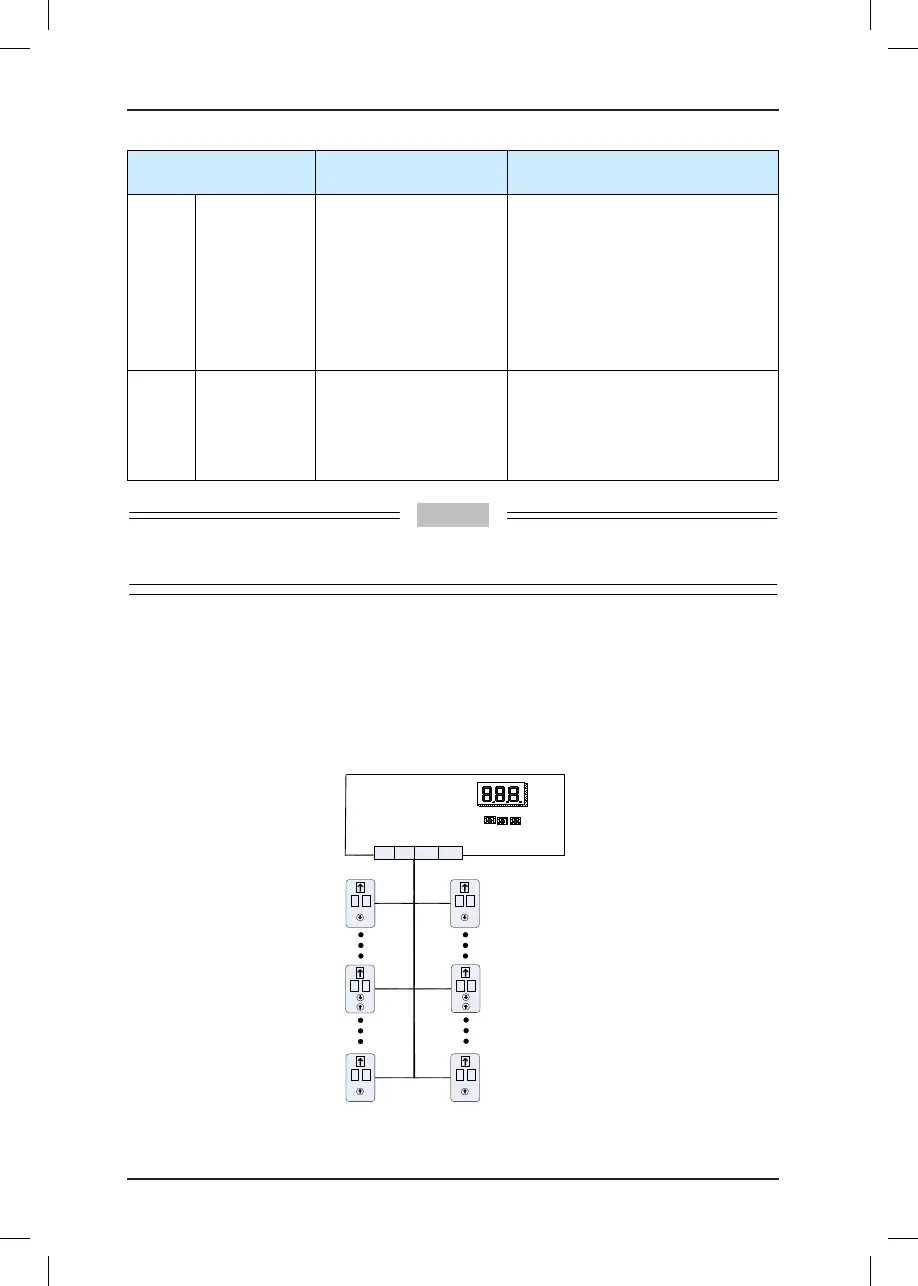

Figure 5-12 HCB wiring of opposite door control
+24V
COM
Mod1
Mod1
PRG
UP
SET
NICE5000
CN3
Operation box
of top floor
Operation box
of Nth floor
Operation box
of bottom floor
Front door HCB
Back door HCB
1 1
1
1
1
1
1
1
1
1
1
1
