MN0090-05 Page 53 of 68 18008
MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.

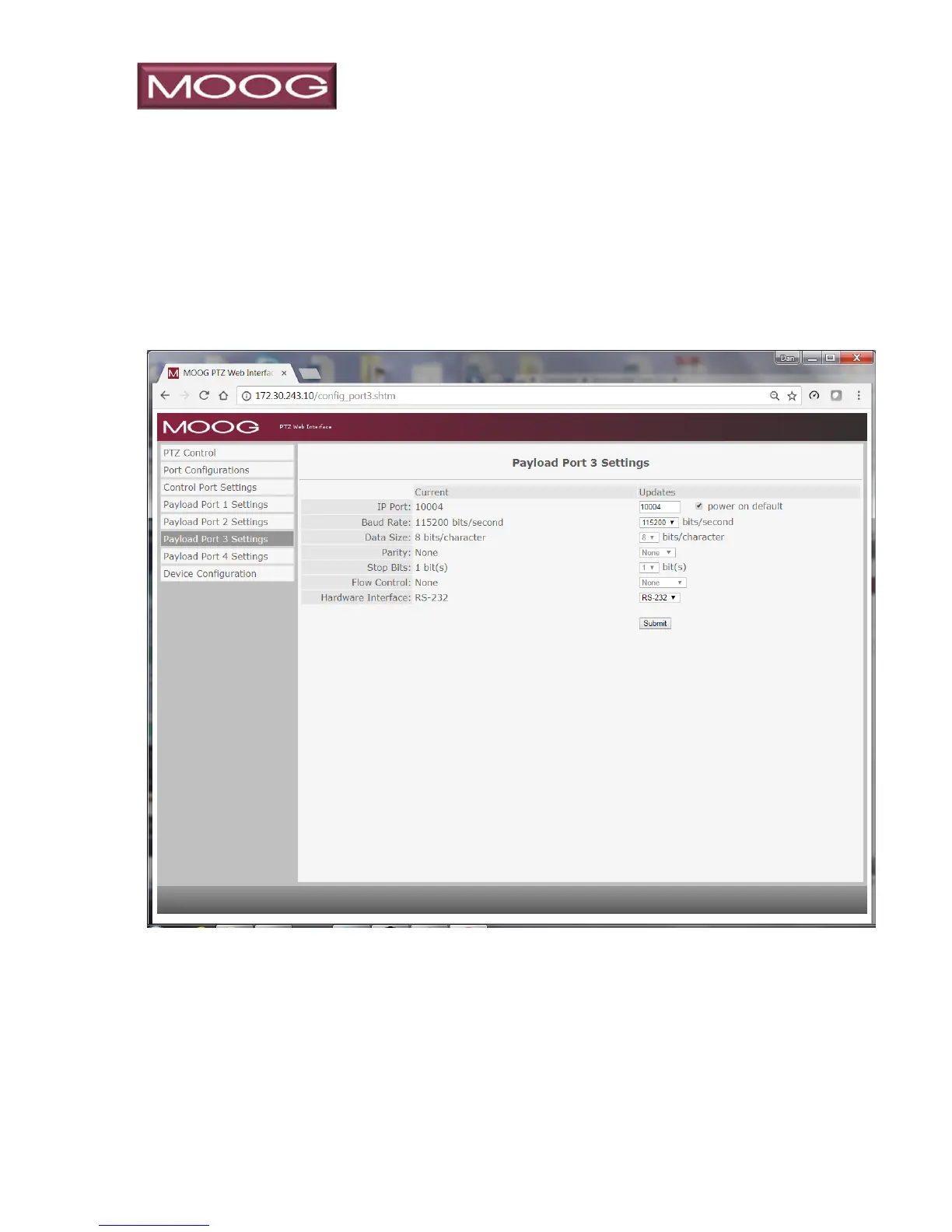

PAYLOAD PORT 3, 4 SETTINGS – The Payload Port settings for Port 3 & 4 are
identical to 1 & 2 with the exception that serial type are set by software settings. The
Hardware interface selection is made by a pull down menu on the page. Payload
Port 3 (shown) and Payload Port 4 operate identically.
