MN0090-05 Page 54 of 68 18008
MPT-90 PRODUCT MANUAL This document contains U.S. export controlled technical data as regulated by the U.S. Export Administration Regulations 15 CFR Parts 730-774, export, disclosure or transfer contrary to U.S. law is prohibited.

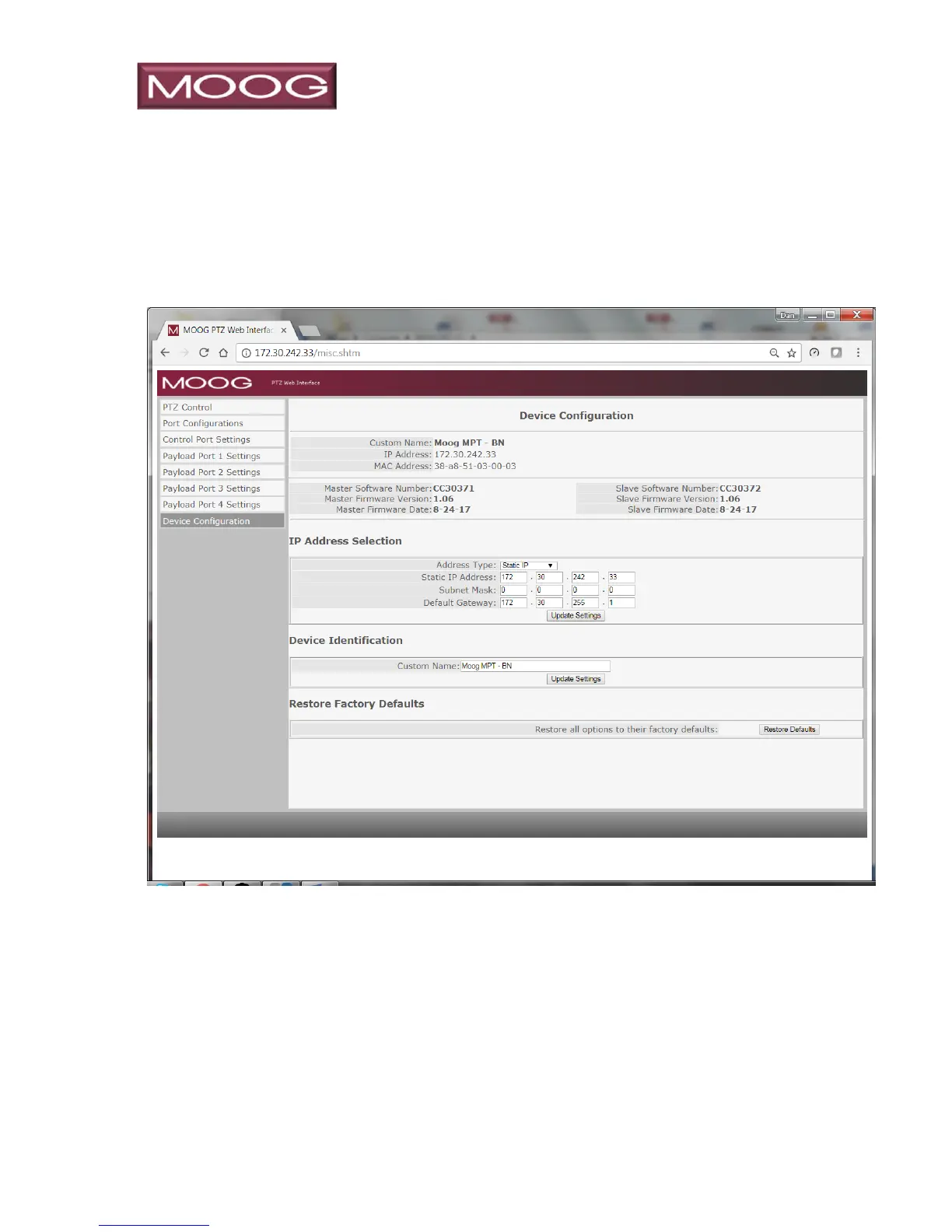

DEVICE CONFIGURATION – The Device Configuration page is used primarily for
configuration of the IP setting of the control IP port, and shows the internal firmware
versions and MAC address assigned at the factory.
The Device Identification field is user accessible and may be used to give the
positioner a unique name on their network to distinguish each positioner from other
devices. The field is 38 characters in length. Type the identification in the “Custom
Name” field and press the “Update Settings” button.
