Moog MSD Specification

Specification TWINsync module
9
2 The TWINsync technology option
x
ID no.: CB08759-001Date: 03/2023
moog
Technical data TwinSync communication
Signal level
User data
Transfer mode
Transfer rate
Cable length
Wave terminating resistance
EIA485, electrically isolated from the servo drive
0-30 byte
Asynchronous, synchronized via sync pulse
max. 8kHz
max. 10m
120Ω (integrated)
Table 2.1: Technical data for the
TWINsync communication
2.1 Hardware requirements
For TWINsync coupling of two MSD Servo Drives, the TWINsync option for the X8
technology interface of the MSD Servo Drive is required in both drives . The same
applies as well for the MSD Servo Drive Compact. The option is detected
automatically (control is accomplished via the device type plate in the
DRIVEADMINISTRATOR or via P0053 == TWS(2) for "TWINsync").

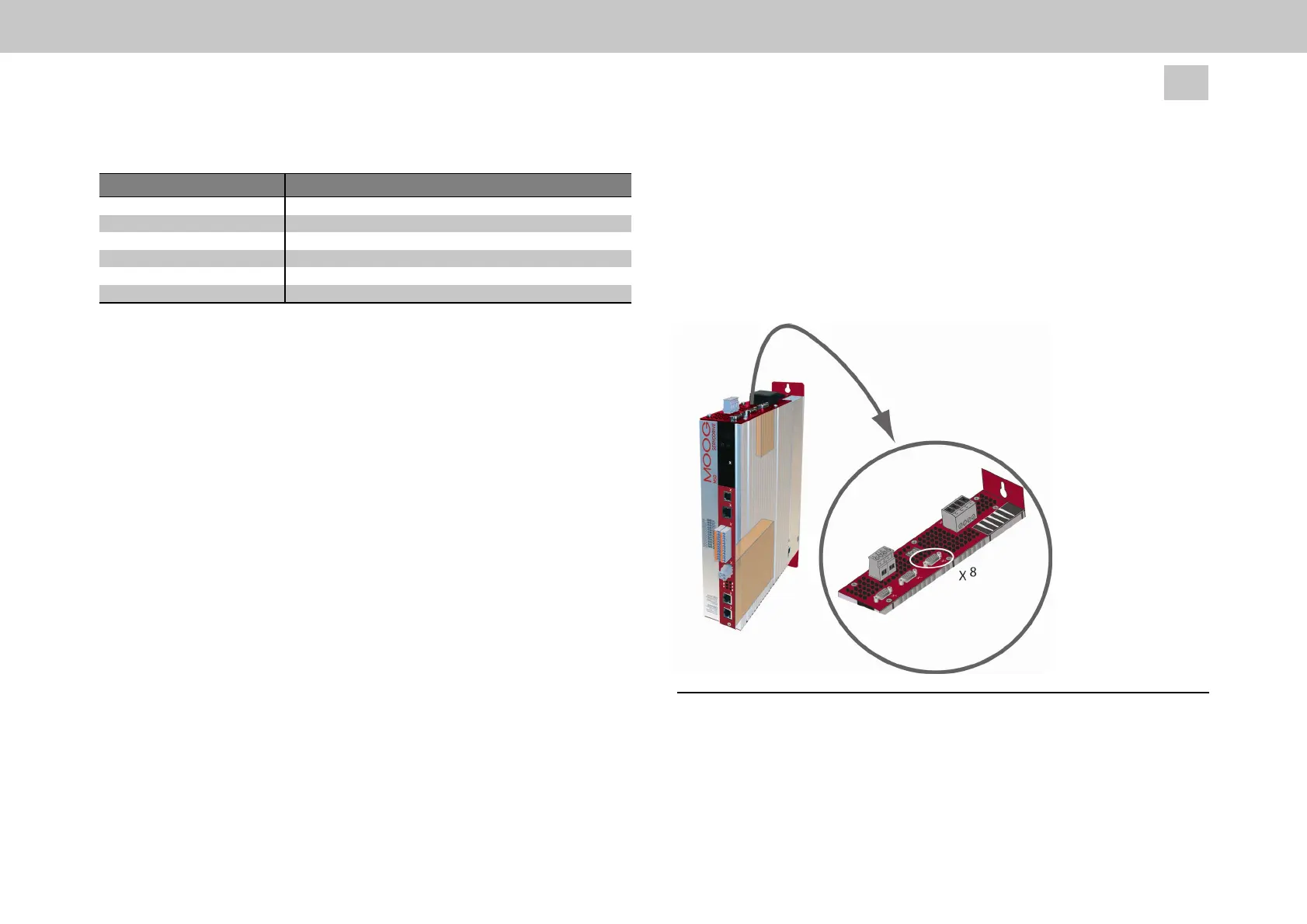

Figure 2.1: The TWINsync option for TWINsync coupling of two MSD Servo Drives
