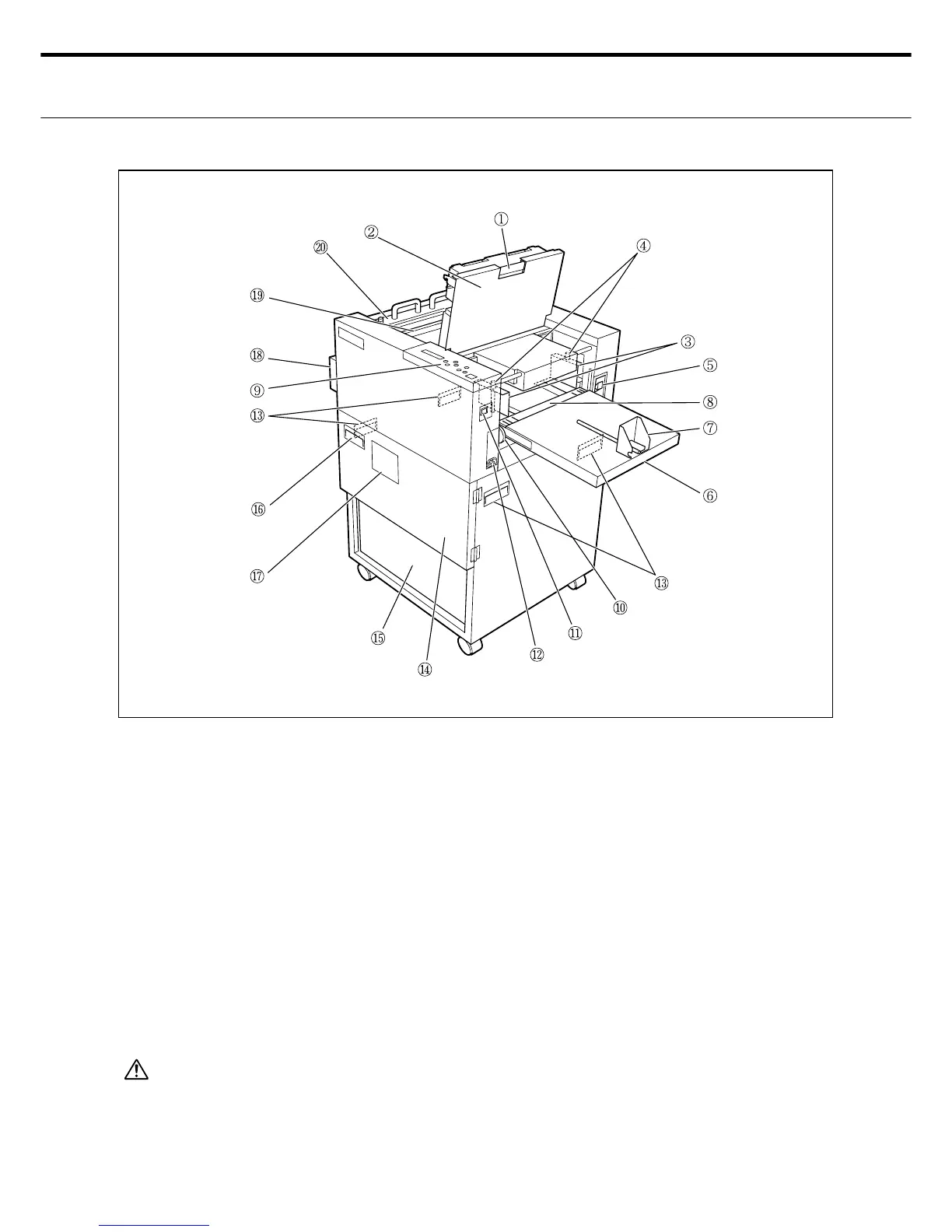

3. PART NAMES
Ԙ Top cover release bar
ԙ Top cover
Ԛ Paper guide
ԛ Paper guide set screw
Ԝ Paper feed tray release bar
ԝ Paper feed tray
Ԟ Paper feed tray rear edge clamp
ԟ Paper set position adjust scale
Ԡ Control panel
ԡ Paper position fi ne adjust knob & scale
Ԣ Power switch
ԣ AC power connector
Ԥ Carrying grip (4 locations including eject side)
ԥ Front cover
(cutting waste hopper storage door)
Ԧ Cutting waste hopper
ԧ Front cover door grip
Ԩ Cutting waste inspection window
ԩ Eject tray (replaceable)
Ԫ Long blade (feed direction cutter: fi xed type)
ԫ Rotary blade (Width direction cutter: replace-
able type)
Note : Each cover and rotary blade is installed with an interlock as a safety precaution so the ma-
chine won’t operate if a cover is open or the rotary blade is not installed.
Warning
Never attempt to defeat or tamper with the interlock devices.
