How to change the cutting format items
Use this information to change the contents and settings of the currently selected format No.
Requiring caution for the setting format are listed in "Cutting Format" in the appendix. Always be
sure to read this before making changes.
Ԙ Select the paper size
The paper size selection is valid when F1-F8 for fi xed format was selected.

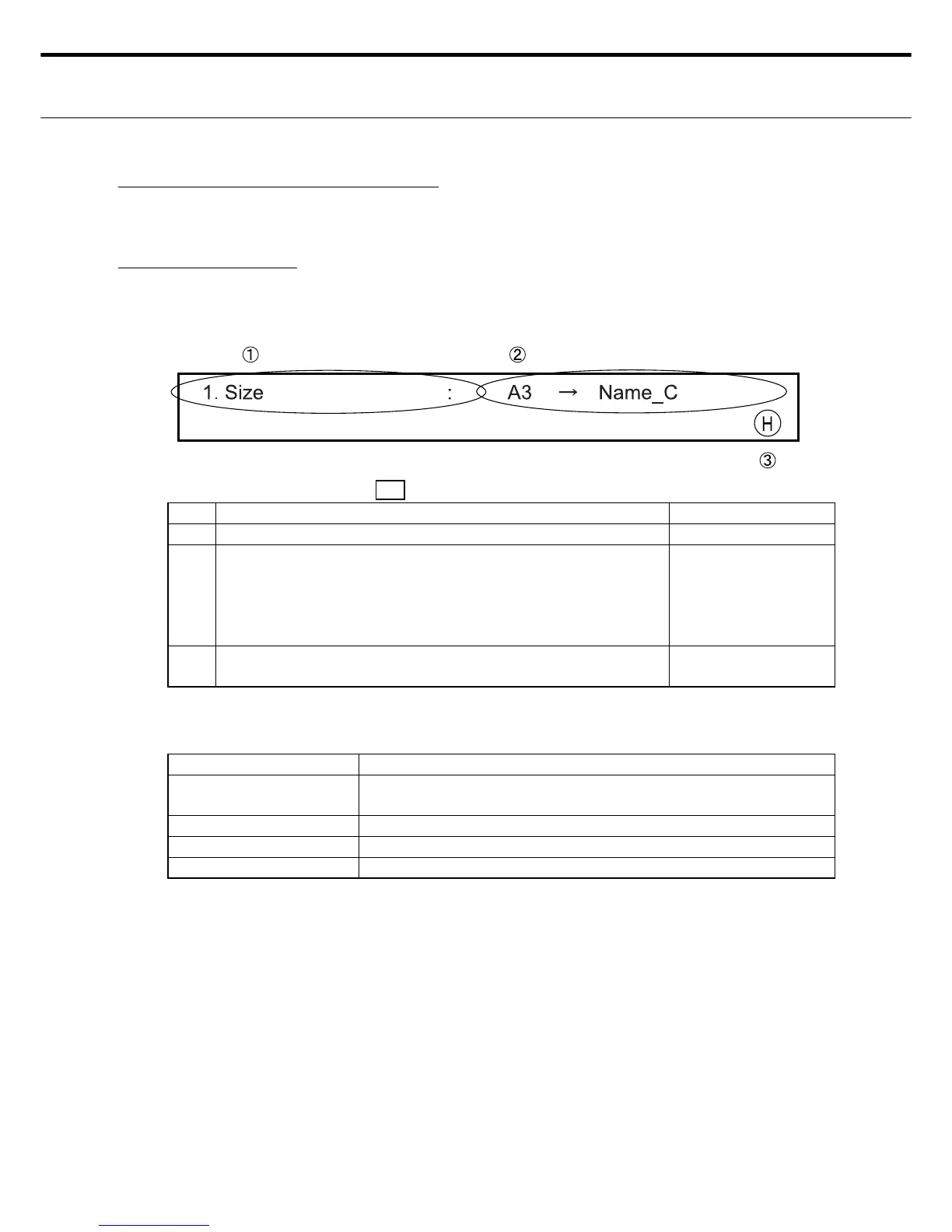

٤ LCD display for paper size screen
LED display Power LED: ON , READY : OFF, ERROR: OFF
No. Display information Display Changes
Ԙ Shows that this is the paper size select status. INOP (Fixed screen)
ԙ Shows the "Paper size ψ Finish paper" select status. Display
changes by pressing the UP/DOWN switches.
The display changes according to the type of rotary blade
set in the machine. See the "Cutting Format" in the appendix
for information on the display.
OK
Ԛ An "H" is shown when the displayed setting has been saved.
A blank space is shown in the setting change state.
OK. Shows "H" or
blank display.
Note: The only location settable by the user is ԙ .
٤ Cutting format change switches
Switches Description
UP/DOWN UP - DOWN Use for moving up or down to the number.
Enabled by ԙ
ENTER Use to store the settings. (After entering, an "H" appears in (3)).
CLEAR Shows the default (reset value).
MENU Use in Setting Entry mode; Shifts to Menu screen 1.
Note 1: The data changes are not entered (stored) if the Menu switch is pressed before the
Enter switch was pressed.
Note 2: If an error such as Cover-Open was detected before pressing the Enter switch then
after eliminating the error, operation shifts to Standby mode without storing any of the
changes.
