40
LED display Power LED: ON , READY : OFF, ERROR: OFF
No. Display information Display Changes
Ԙ Shows that this is for setting the cut length (single card length) INOP (Fixed screen)
ԙ Cursor is movable in the ԙ range.
Enter a value in "Cut Length" by moving the cursor with the
right or left switches to move up and down to the digits to fi nd
the number you want. (0.1 mm steps)
OK
Ԛ Shows the effective range of the cut length for the currently
selected cutting format. Check the values shown here and set
the value of ԙ .
INOP
ԛ An "H" is shown when the displayed setting has been saved. A
blank space is shown in the setting change state.
OK. Shows "H" or
blank display.
Note 1: The only location settable by the user is ԙ .
Note 2: Numbers can be entered only in the range shown in Ԛ . Numbers outside this range
are invalid and cannot be entered because the Enter switch is disabled.
٤ Cut length setting switches
Switches Description
RIGHT/LEFT Moves the cursor. Valid in the range in ԙ .
UP - DOWN Use for setting the cut length. Enabled by ԙ .
ENTER Use to enter the display information. (After entering, an "H" ap-
pears in ԛ ).
CLEAR Shows the default (reset value).
MENU Setting Entry mode; Shifts to Menu screen 1.
Note 1: The data changes are not entered (stored) if the Menu switch is pressed before the
Enter switch was pressed.
Note 2: If an error such as Cover-Open was detected before pressing the Enter switch then
after eliminating the error, operation shifts to Standby mode without storing any
changes.
Please : When shipped from the factory this product is adjusted to a standard cutting length
for fi ne paper of 135kg and craft paper 180kg Artist papers. In view of factors like
the quality and thickness of the paper being used as well as environmental condi-
tions, the cut length may have a margin of error within several tenths mm. There-
fore, set the cut length according to "Setting the cutting length" on this page and
"Setting the trim length (page 42)" for the paper you are using.
By setting and storing beforehand the values in "Select cutting format" for each
kind of paper you will be using, you can easily call up the format No. with those pre-
stored values the next time you have to use the same kind of paper. (See P. 35).
ԙ Setting the cutting length
The cut length setting is valid when a fi xed format or a free format was selected.

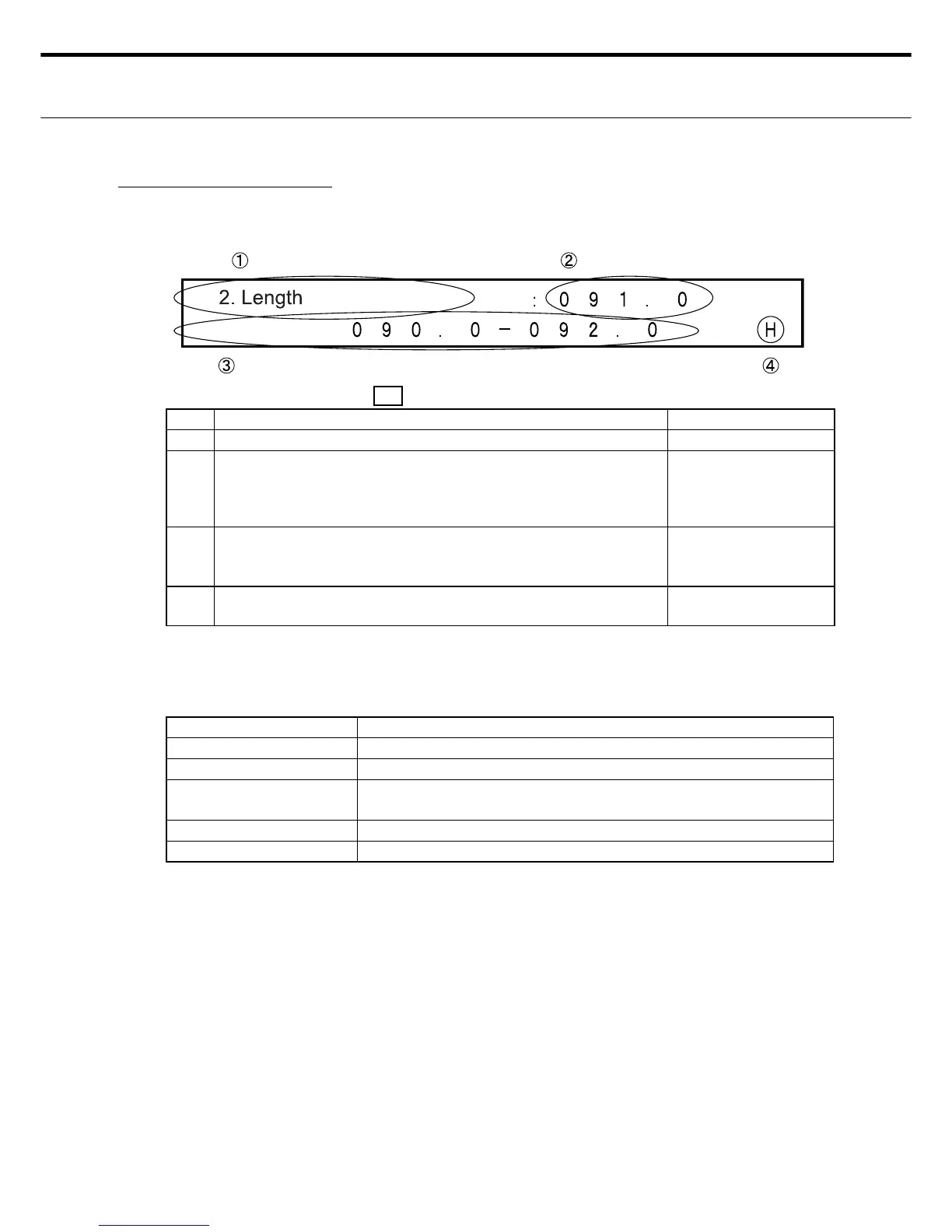

٤ LCD display for setting the cutting length
To Next Page
