23

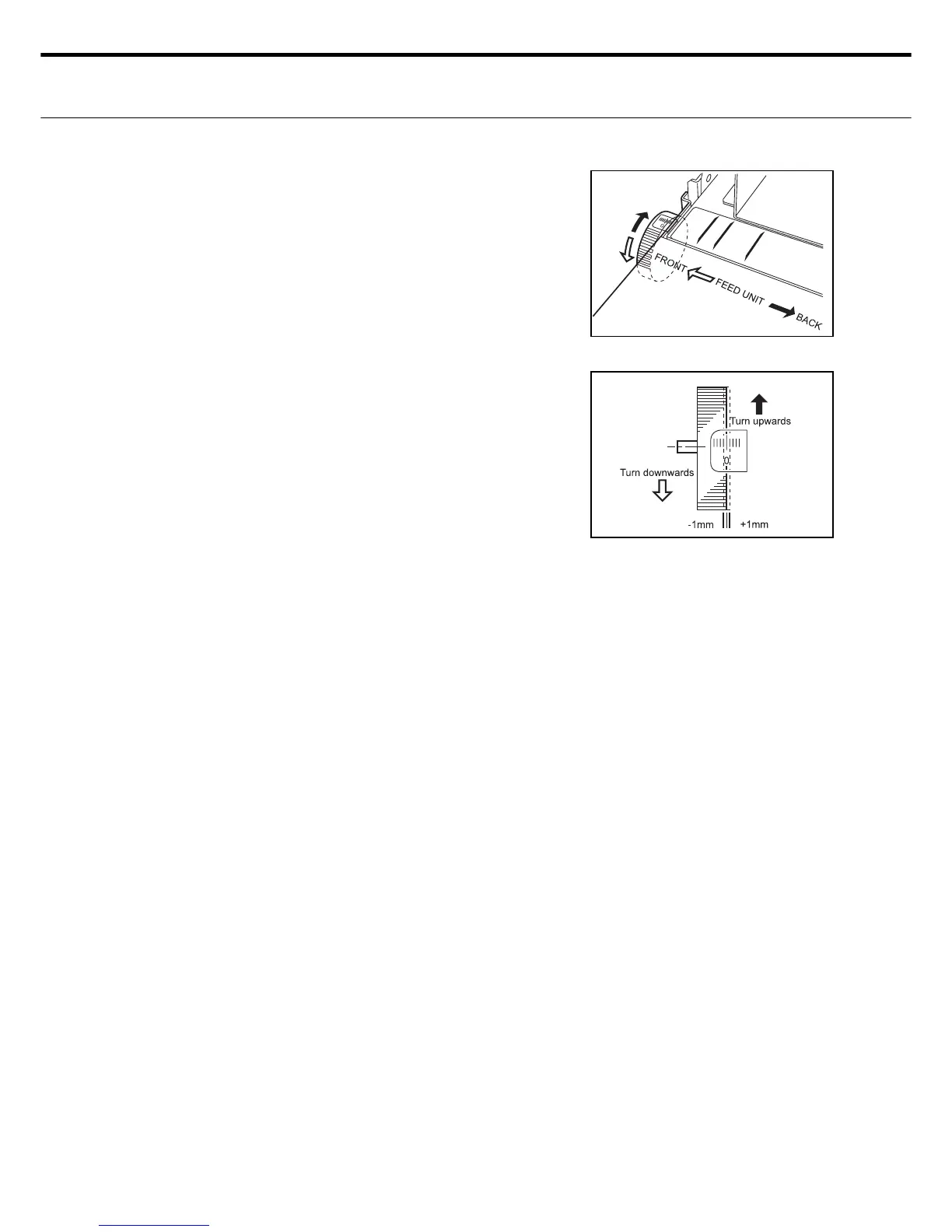

Turn the Paper Position Fine Adjust knob
& scale and move the feed unit forwards or
rearwards as needed. If the cut position has
deviated upwards, then turn the knob upwards.
Likewise if the cut position has deviated down-
wards, then turn the knob downwards.
Adjust for the deviation while using the cut po-
sition scale as a guide. Fine adjustments can
be made to approximately ±1 mm.
2.
3.
Note: If the cut position and print position do not match during this adjustment then
see, “Setting the paper” on P.20 and reset the paper. Then remake the cut-
ting position alignment.
Note: To make fi ne adjustments for vertical cutting (standing cut with long blade)
versus the paper feed direction, see “Setting the cutting length” on P.40
