Caution: To ensure a successful download, do not remove power from the mobile computer while in
Bootloader.
8 Use the up and down scroll buttons to select Download from USB, then press ENT. The Bootloader displays the
following:

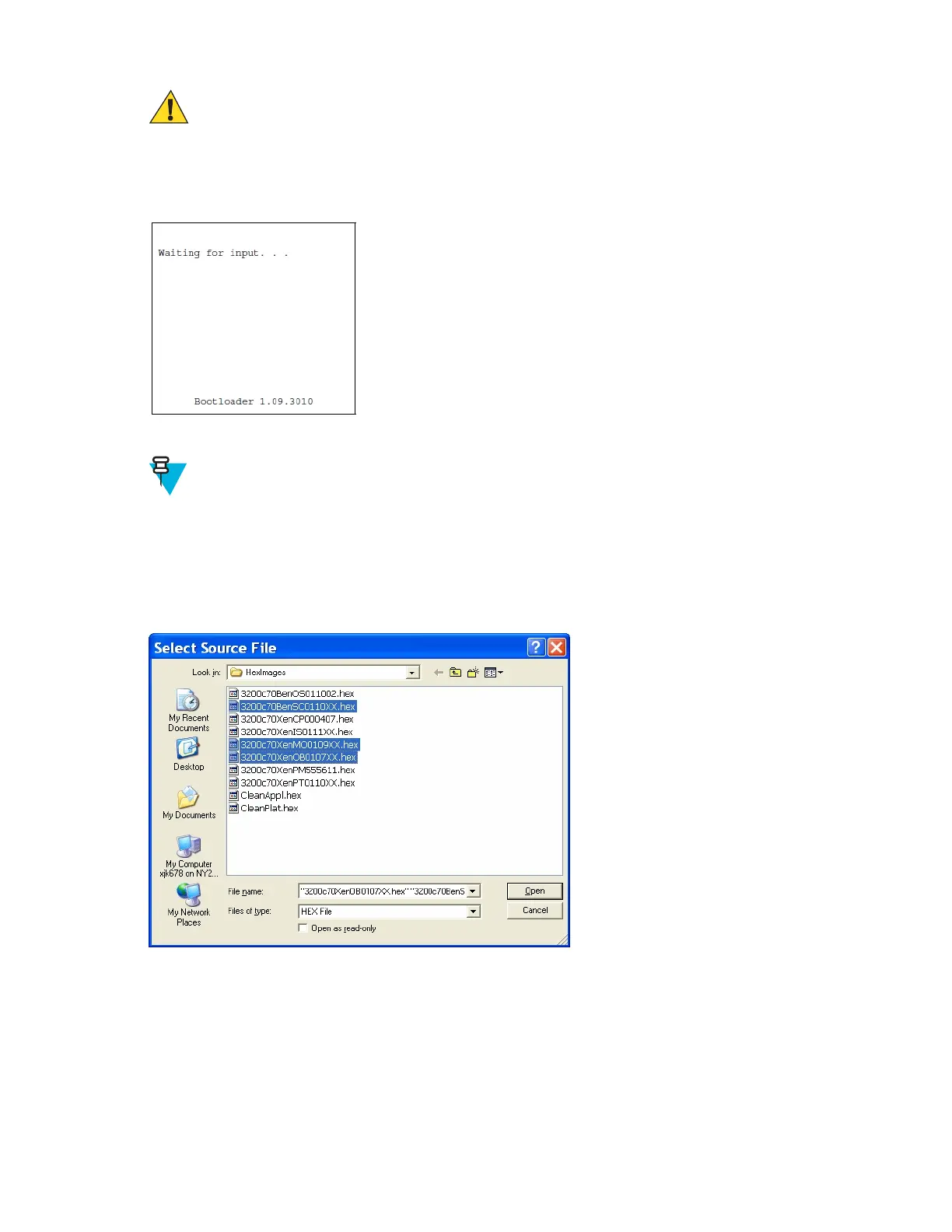

Figure 133: Waiting for Input
9 On the host computer, locate the hex files to download.
Note:
One hex file or multiple hex files can be selected. To select multiple files, press the Ctrl key while
selecting files.
If selecting multiple files to download, USBDownload reads the header of the file and identifies the file
type. If the Partition table file is among the files selected, then USBDownload downloads that file first.
Similarly, USBDownload downloads the CPLD file last.
Figure 134: Select Source File Window
10 Select the hex files and the click Open.
154 | Application Deployment for Windows CE
April 2015 | MN000887A01-B
