1 - 2 MC45 Integrator Guide
•
Power on the MC45.
•
Configure the MC45.
Charge the battery before or after it is installed. Use one of the spare battery chargers to charge the battery
(out of the MC45), or one of the cradles to charge the battery installed in the MC45.
Installing a microSD card
The microSD card slot provides secondary non-volatile storage. The slot is located under the battery (see
Figure 1-1). Refer to the documentation provided with the card for more information, and follow the
manufacturer’s recommendations for use.
To install the microSD card:
1. Slide the mini-SIM card holder to the right to unlock.
2. Lift the mini-SIM card holder.

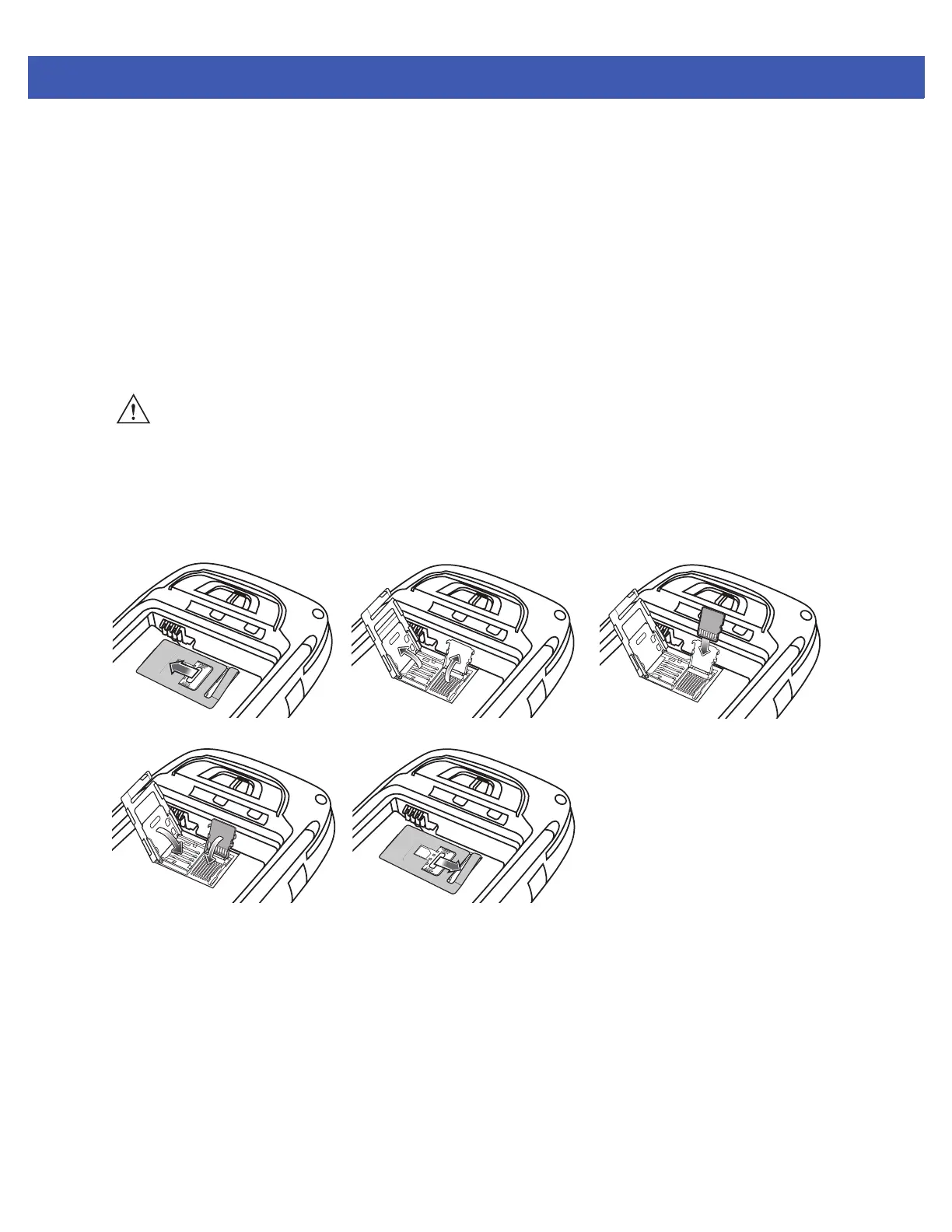

Figure 1-1
microSD Card Installation
3. Slide the microSD card holder down to unlock.
4. Lift up the microSD card holder.
5. Insert the card with the card contacts facing down and lower the microSD card holder.
6. Slide the microSD card holder up to lock.
7. Lower the mini-SIM card holder.
8. Slide the mini-SIM card holder to the left to lock.
To remove the microSD card:
CAUTION Follow proper ESD precautions to avoid damaging the microSD card. Proper ESD precautions
include, but are not limited to, working on an ESD mat and ensuring that the operator is properly
grounded.
