2 - 6 MC45 Integrator Guide
Multi Slot Universal Charge Only Cradle
This section describes how to set up a Multi Slot Universal Charge Only Cradle with the MC45.
The Multi Slot Universal Charge Only Cradle:
Provides 12.0 VDC power for operating the MC45.
Simultaneously charges up to five MC45s or four MC45s when configured with a Four Slot Battery
Charger.
Optional Blank Slot Covers cover empty slots when not all slots are used. Any combination of cups and
covers can be installed on the base.

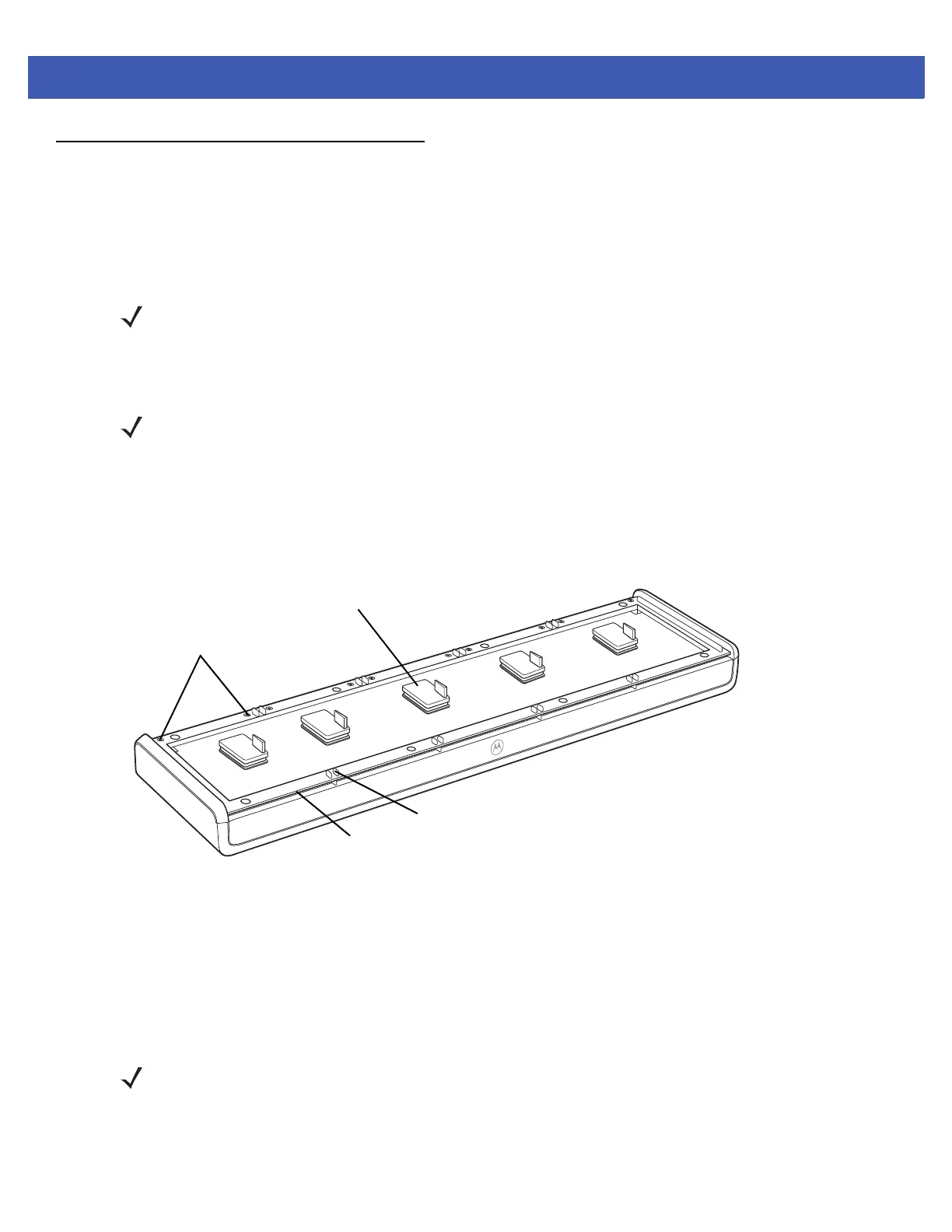

Figure 2-4
Multi Slot Universal Charge Only Cradle base
Setup
Cup Installation
To install the cups:
1. Remove the rubber plug from each slot.
NOTE The Multi Slot Universal Charge Only Cradle is powered by up to two power supply for charging the
mobile computers. The second power supply is used for future expansion.
NOTE The Four Slot Battery Charger can be attached to the Multi Slot Universal Charge Only Cradle using a
Battery Charger Cup Adapter. The cup adapter angles the Battery Charger so that the user can see the
LED indicators easily.
The Four Slot Battery Charger requires a separate power supply. See Four Slot Battery Charger on page
2-13 for more information
Cup mounting holes
Rubber Plug
Slot alignment tabs
Cup Slot
NOTE Remove power from the Multi Slot Universal Charge Only Cradle before installing cups.
