2 - 8 MC45 Integrator Guide

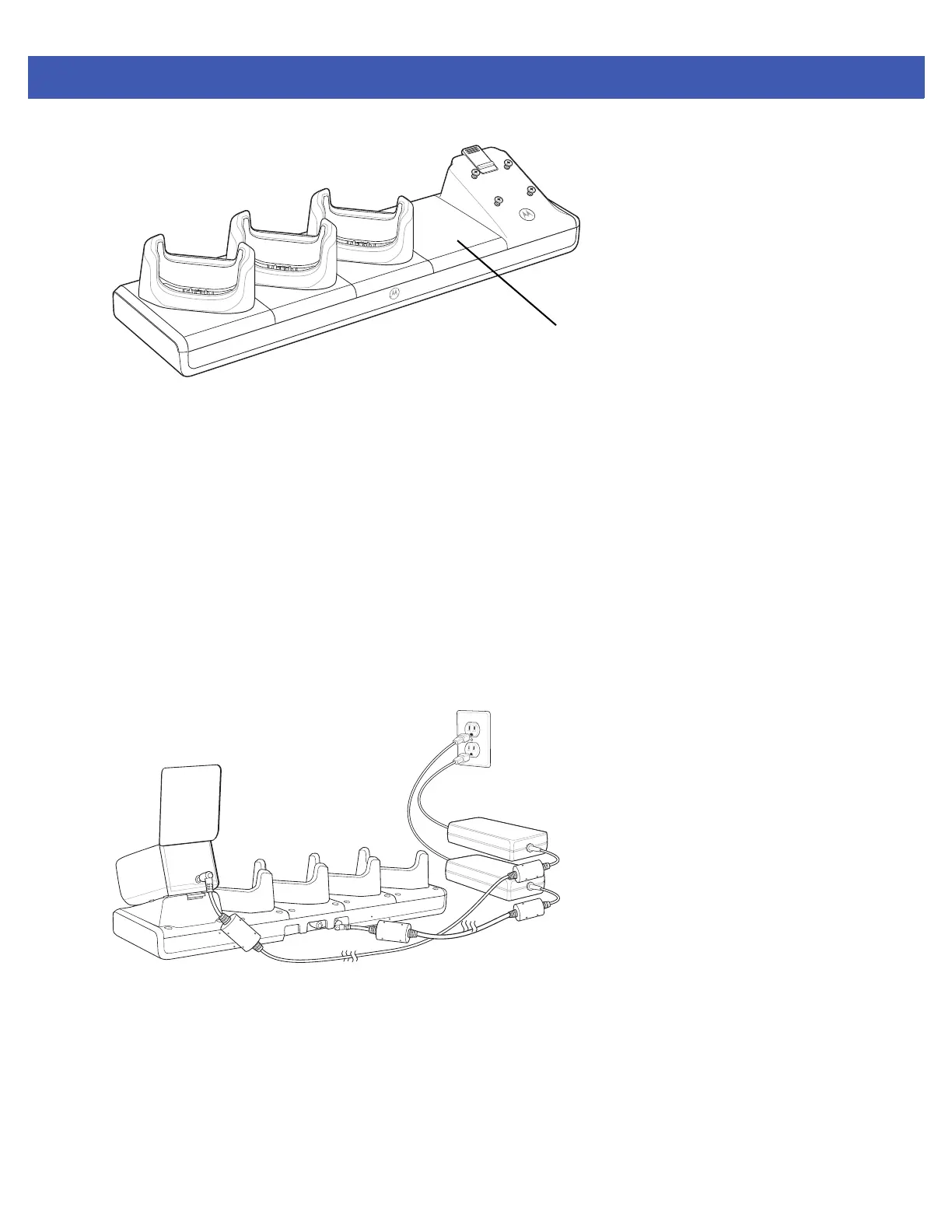

Figure 2-7
Multi Slot Universal Charge Only Cradle with Charger Cups and Four Slot Battery Charger Cup
Adapter installed
Four Slot Battery Charger Installation
To install the Four Slot Battery Charger:
1. Align the four mounting holes on the bottom of the Four Slot Battery Charger with the four studs on the
Four Slot Battery Charger Cup Adapter.
2. Place the Four Slot Battery Charger onto the Four Slot Battery Charger Cup Adapter and slide down until it
locks into place.
Power Connection
Plug the power supply connector into the right power input jack on the back of the Multi Slot Universal Charge
Only Cradle base. The left power input jack is used for future expansion.
Figure 2-8
Multi Slot Universal Charge Only Cradle Power Connection
Charging Temperature
Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the
MC45.
To accomplish this, for small periods of time, the MC45 or accessory alternately enables and disables battery
charging to keep the battery at acceptable temperatures. The MC45 or accessory indicates when charging is
disabled due to abnormal temperatures via its LED. See Table 2-2 for charging status indications.
Blank Slot Cover
