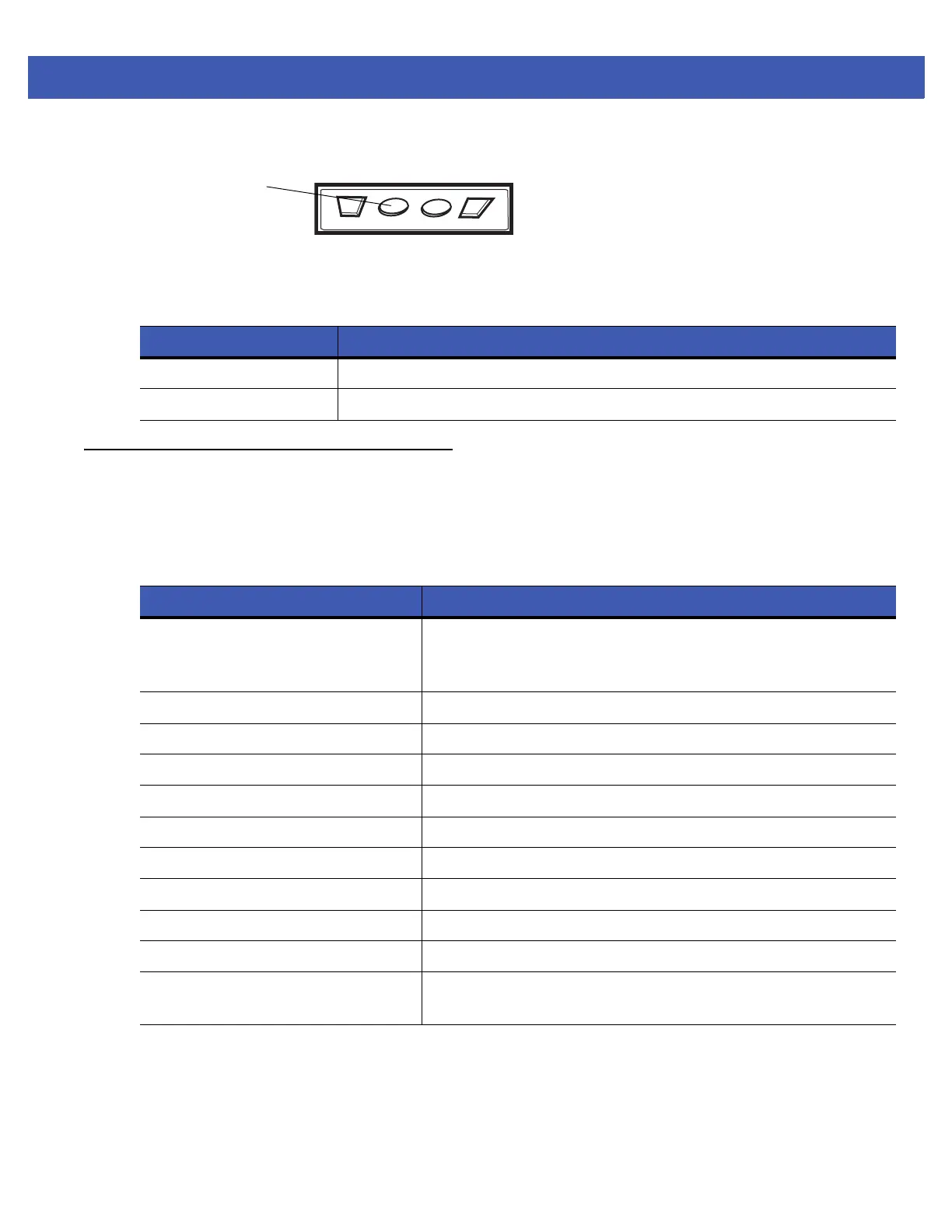

Specifications A - 7
MC45 Pin-Outs
Figure A-2
External Connector
MC45 Accessory Specifications
Single Slot Charge Cradle
Table A-4
External Connector Pin-Outs
Pin Description
1 Cradle Power
2 Ground
Pin 1
Table A-5
Single Slot Charge Cradle
Feature Description
Dimensions Length: 9.6 cm (3.8 in.)
Width: 8.30 cm (3.3 in.)
Height: 6.8 cm (2.7 in.)
Weight 245 g (8.6 oz)
Input Power 5 VDC
Power Consumption 6 watts
Interface USB
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 5% to 95% non-condensing
Drop 76 cm (30.0 in.) drops to vinyl tiled concrete at room temperature
Electrostatic Discharge (ESD) +/- 15 kV air
+/- 8 kV contact
