Accessories 2 - 17
Cables
This section describes how to set up and use the cables. The cables are available with a variety of connection
capabilities.
The following MC45 communication/charge cables are available:
•
USB Rapid Charge Cable
•
Auto charge cable
•
DEX cable

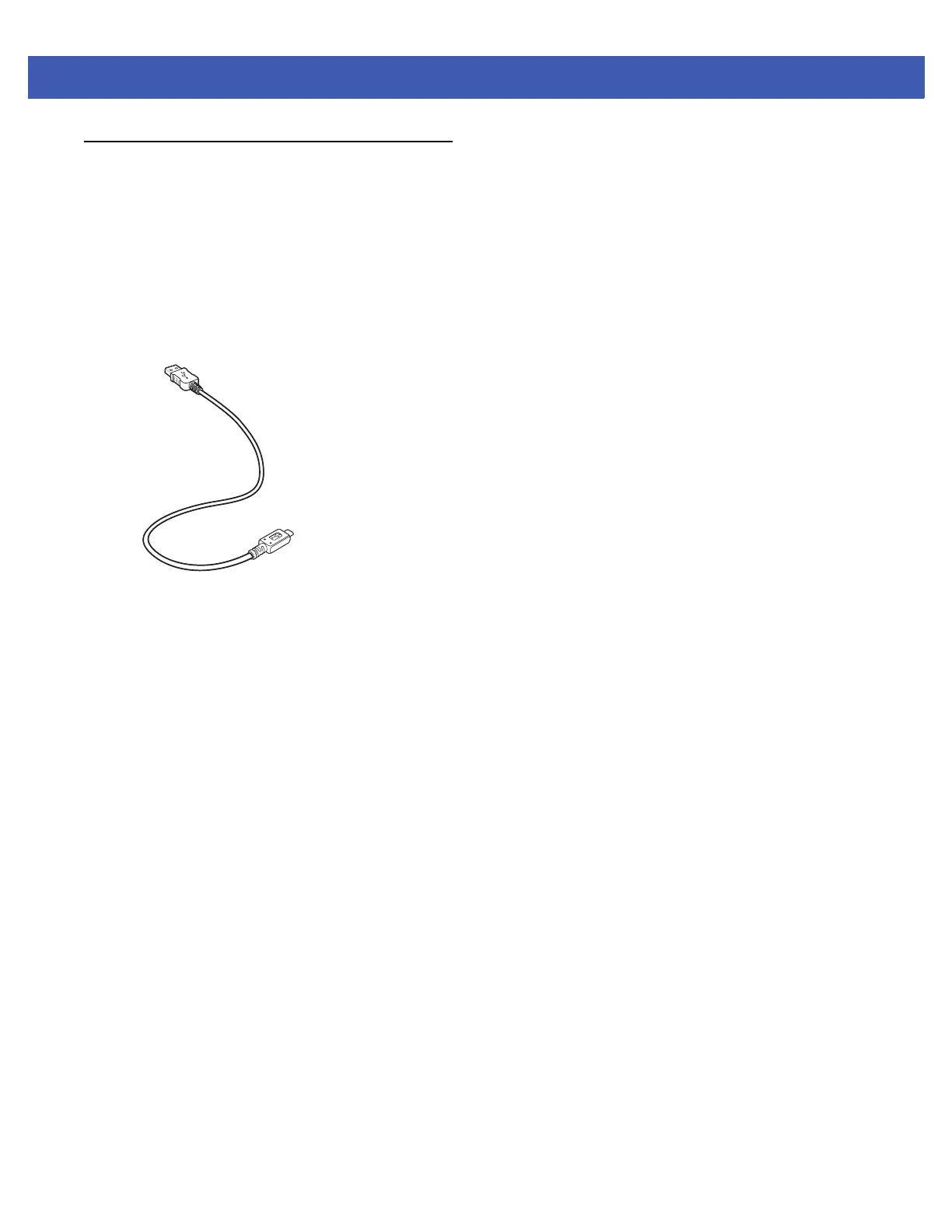

Figure 2-19
Cables (MC45 Connector)
The communication/charge cables:
•
Provide the MC45 with operating and charging power.
•
Synchronize information between the MC45 and a host computer. With customized or third party
software, it can also synchronize the MC45 with corporate databases.
•
Provide USB connection through the USB pass-through port for communication with a USB device, such
as a host computer. For communication setup procedures, see Communication Setup on page 2-18.
Setup
The MC45 communication/charge cables can connect with a USB device, such as power supply or host
computer, through its micro USB port.
Battery Charging
The communication/charge cables can charge the MC45 battery and supply operating power.
To charge the MC45 battery:
1. Connect the communication/charge cable power input connector to the Motorola approved power source.
2. Connect the micro USB connector of the communication/charge cable to the MC45 micro USB port. The
MC45 green Charge LED indicates the MC45 battery charging status. The 3080 mAh battery fully charges
in less than six hours at room temperature of approximately 25 °C (77°F). Charging time may vary at
different temperatures. See Table 1-1 on page 1-7 for charging status indications.
3. When charging completes, remove the cable by gently pulling the MC45 and the cable apart.
