1 - 6 MC45 Integrator Guide
4. Lift to remove battery cover.
5. Press down on the top of the battery and lift to remove.
Charging the Battery
Charging the Battery
Before using the MC45 for the first time, charge the main battery until the green Charging/Battery Status LED
remains lit (see Table 1-2 on page 1-10 for charge status indications). To charge the MC45, use the USB Rapid
Charge Cable or a cradle with the appropriate power supply. For information about the accessories available
for the MC45, see Chapter 2, Accessories.
To charge the battery, use either a USB Rapid Charge Cable or a cradle. For USB Rapid Charge Cable or
cradle setup and charging procedures see Chapter 2, Accessories.
•
Single Slot Charge Cradle
•
Multi Slot Universal Charge Only Cradle
•
Vehicle Charge Cradle.
To charge the battery:
1. Connect the charging accessory to the appropriate power source.
2. Insert the MC45 into a cradle or attach to the USB Rapid Charge Cable and power supply. The MC45
begins charging. The Charging/Battery Status LED blinks green while charging, then turns solid green
when fully charged. See Table 1-1 for charging indications.
3. The 3080mAh battery fully charges in less than six hours at room temperature of approximately 25 °C
(77°F). Charging time may vary at different temperatures.

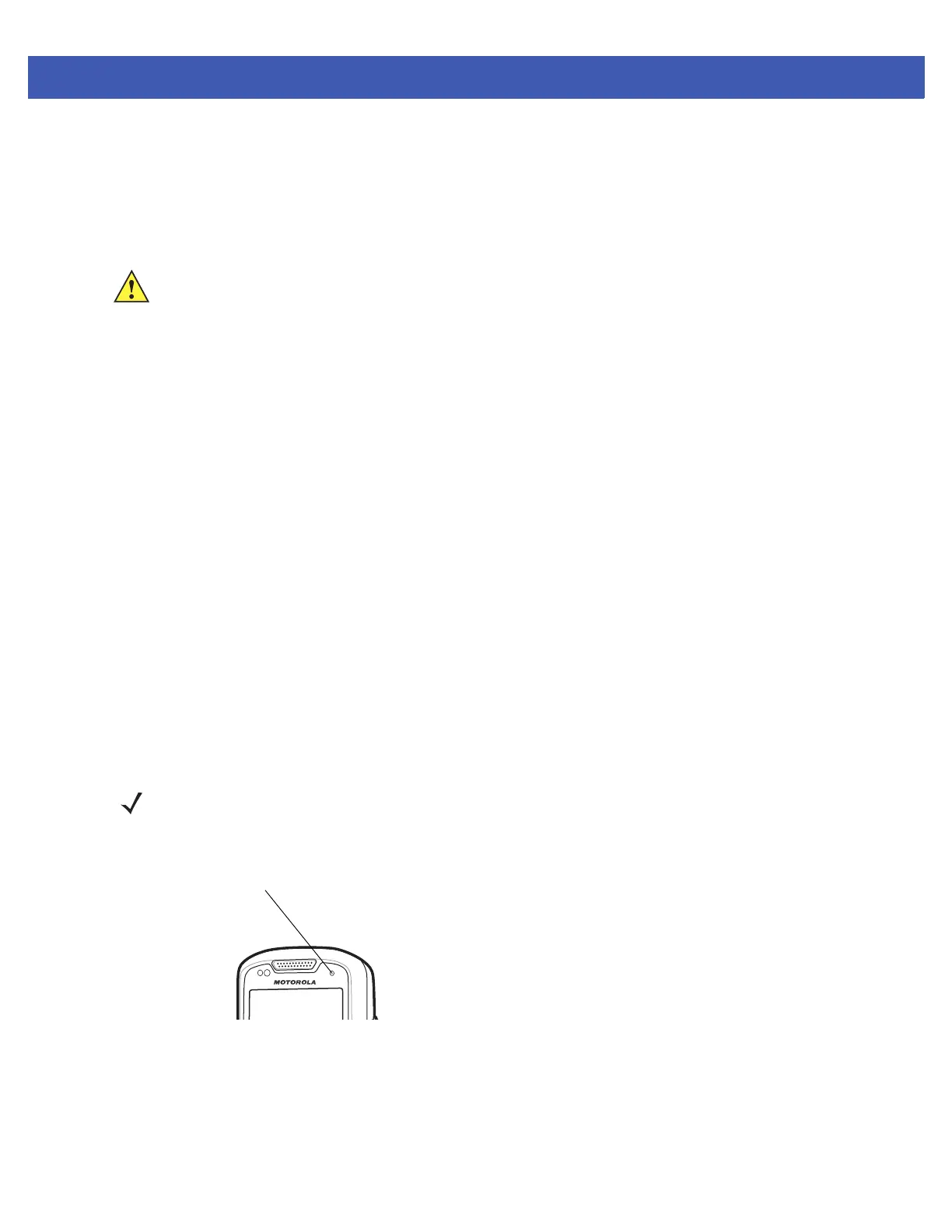

Figure 1-8
LED Indicators
CAUTION Ensure that you follow the guidelines for battery safety described in Battery Safety Guidelines on page
7-3.
NOTE The MC45 Battery Cover must be in place and closed properly for the MC45 to power on and charge the
battery.
Charging/Battery
Status LED
