Accessories 2 - 13
Four Slot Battery Charger
This section describes how to use the Four Slot Battery Charger to charge up to four MC45 spare batteries.
Spare Battery Charging
1. Connect the charger to a power source.
2. Insert the spare battery into a spare battery charging well and gently press down on the battery to ensure
proper contact.

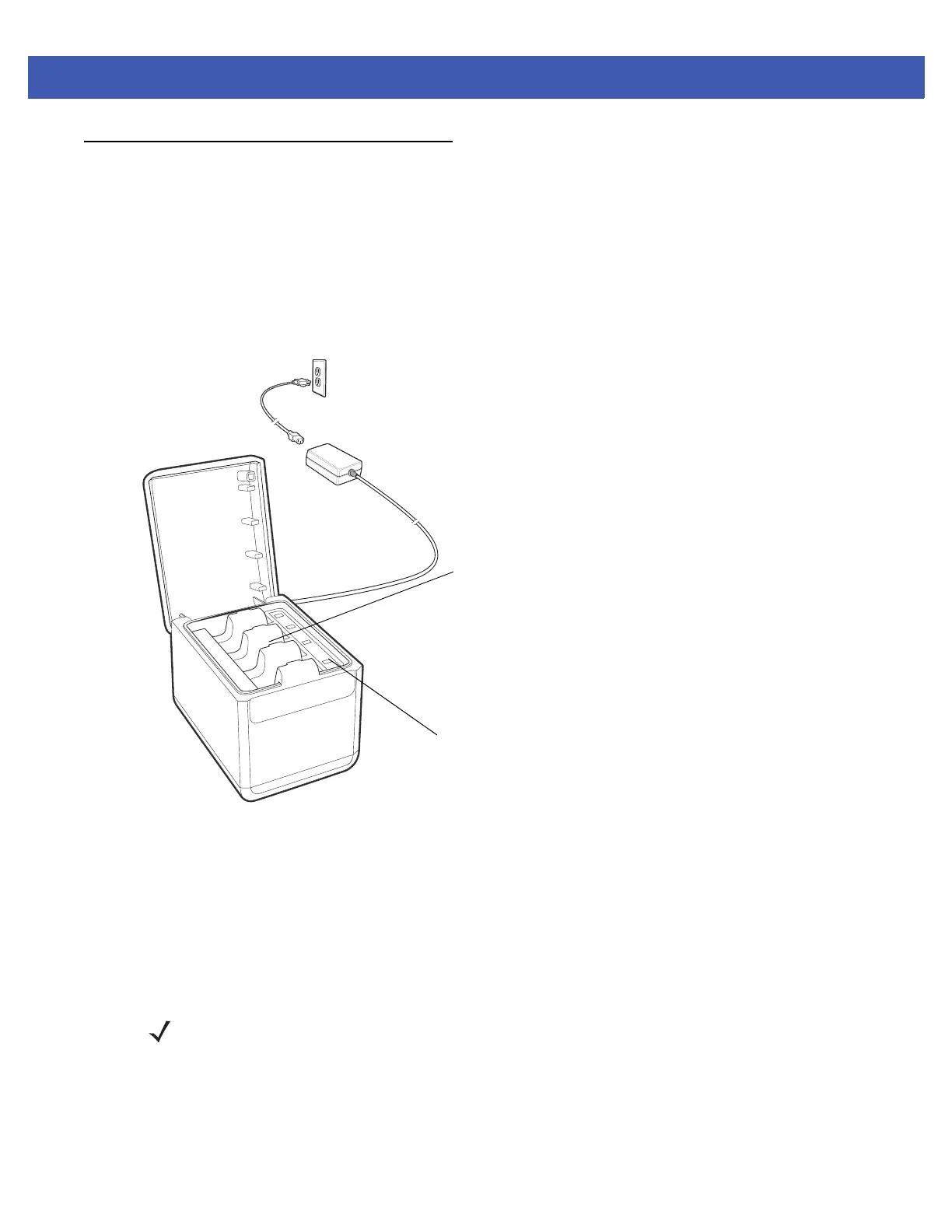

Figure 2-16
Four Slot Battery Charger
To remove the spare battery from the Four Slot Battery Charger:
1. Gently push the battery located in the spare battery charging well towards the back of the charger. The
latch unlocks.
2. Remove the battery by pulling it upwards from the spare battery charging well.
Battery Charging Indicators
A LED indicator is provided for each battery charging well. See Table 2-3 for charging status indications. The
3080mAh battery fully charges in less than six hours at room temperature of approximately 25 °C (77°F).
Charging time may vary at different temperatures.
Spare Battery
Charging LEDs (4)
Charging Well
NOTE The Four Slot Battery Charger is compatible and charges the 3080mAh lithium-ion battery
(p/n BTRY-MCXX-3080-01R, BTRY-MCXX-3080-10R and BTRY-MCBR-3080-01R).
To Next Page
