5

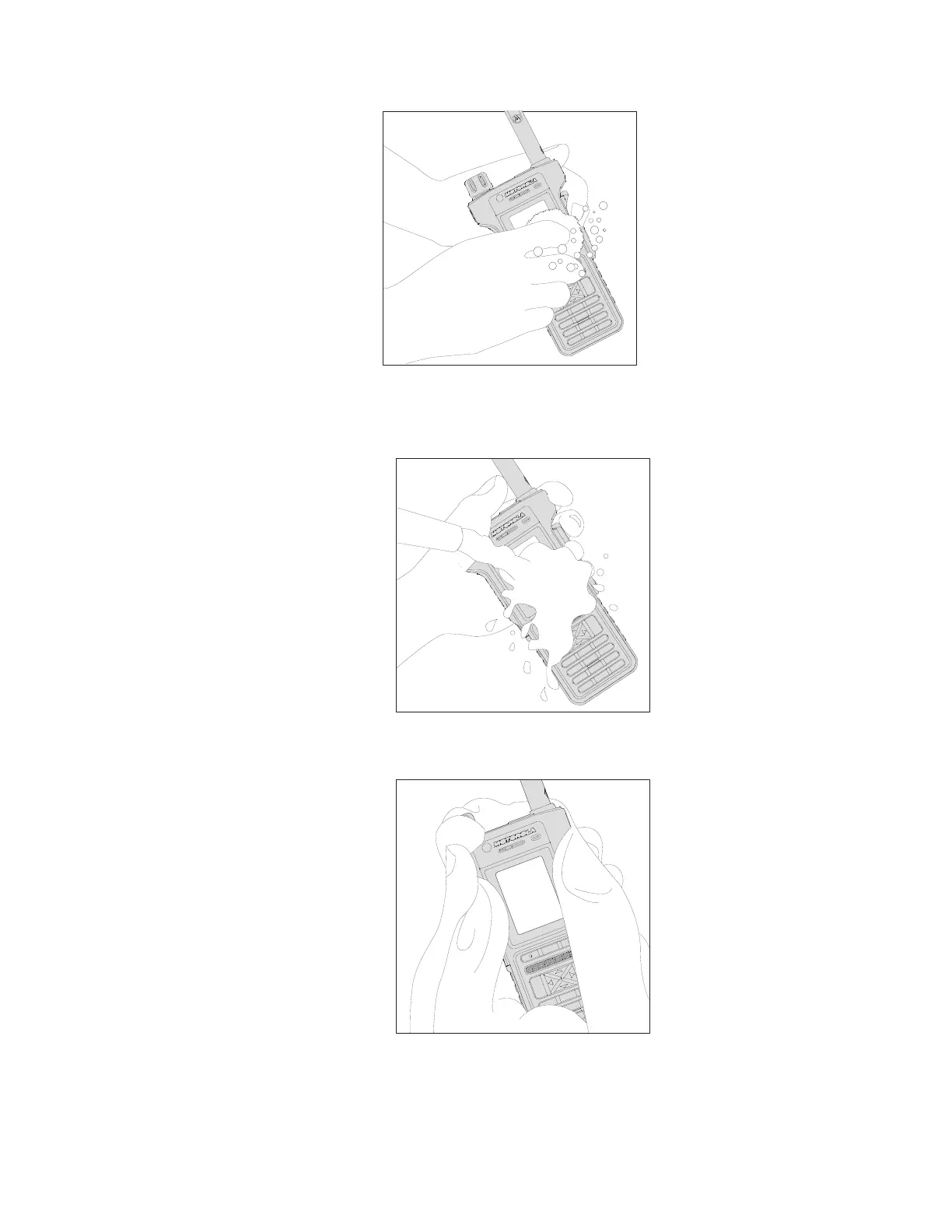

Submerge the radio in water and shake it to remove the detergent.
6
Pull the radio out of the water and thoroughly rinse it under running water to remove excess
detergent. Take extra care to remove any detergent trapped in the crevices of the radio.
7
Shake off excess water and dry the radio with a towel. Take extra care to remove any water
trapped in the crevices of the radio.
MN006260A01-AG
Appendix C : Maintenance
183
182
