MTP8000Ex Series Controls and Indicators
The MTP8000Ex Series radio specifications are available at https://www.motorolasolutions.com/
mtp8000ex.

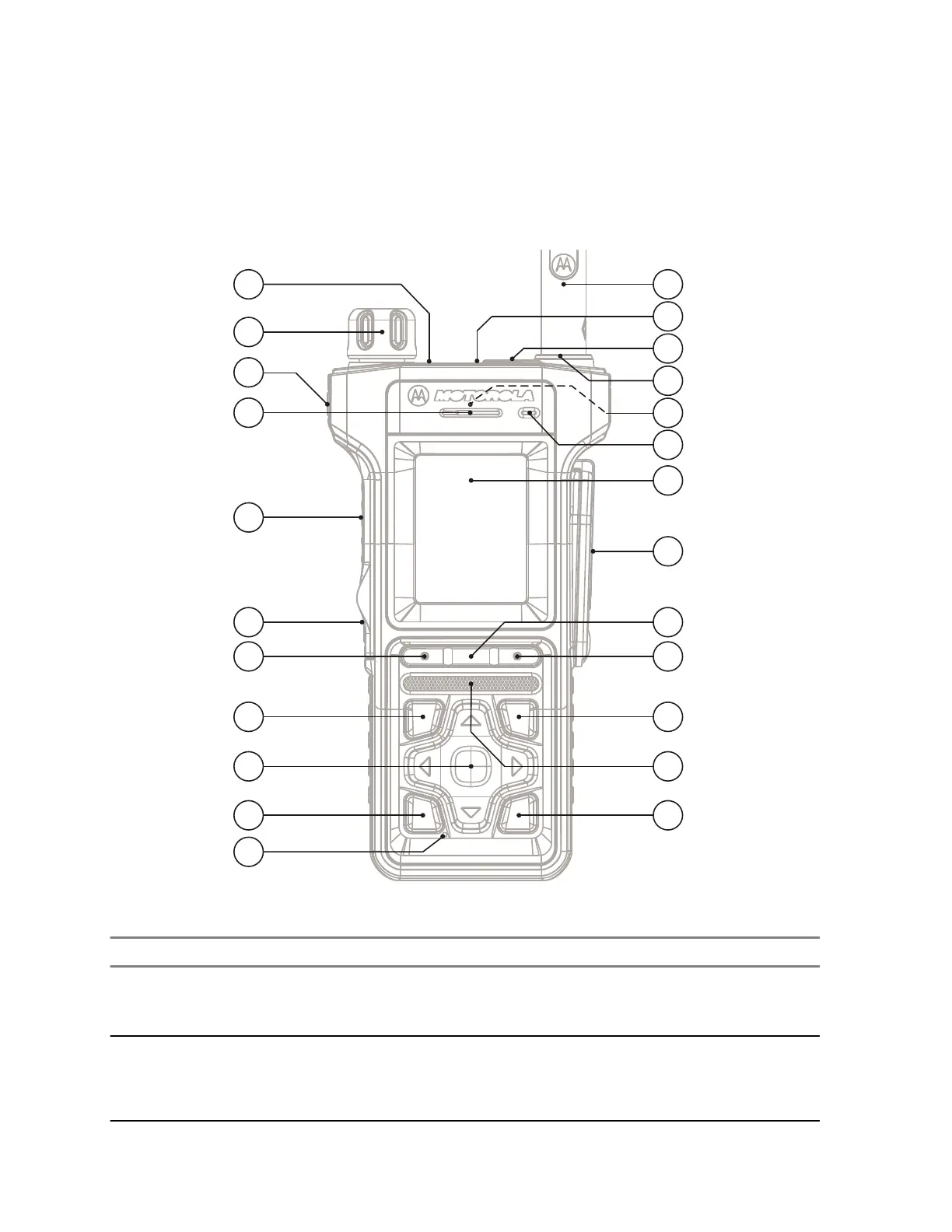

MTP8500Ex Controls and Indicators
18
19
6
20
21
22
17
12
13
11
3
6
7
8
9
10
5
4
3
2
1
14
15
16
Table 3: MTP8500Ex Controls and Indicators
Annotation Description
1 Backlight Sensor
The backlight sensor measures ambient light intensity. When the display back-
light is active and a low light condition is detected, the keypad is illuminated.
2 Rotary Knob
• Rotate to set the volume.
• Press and rotate to select a different talkgroup.
