Procedure:

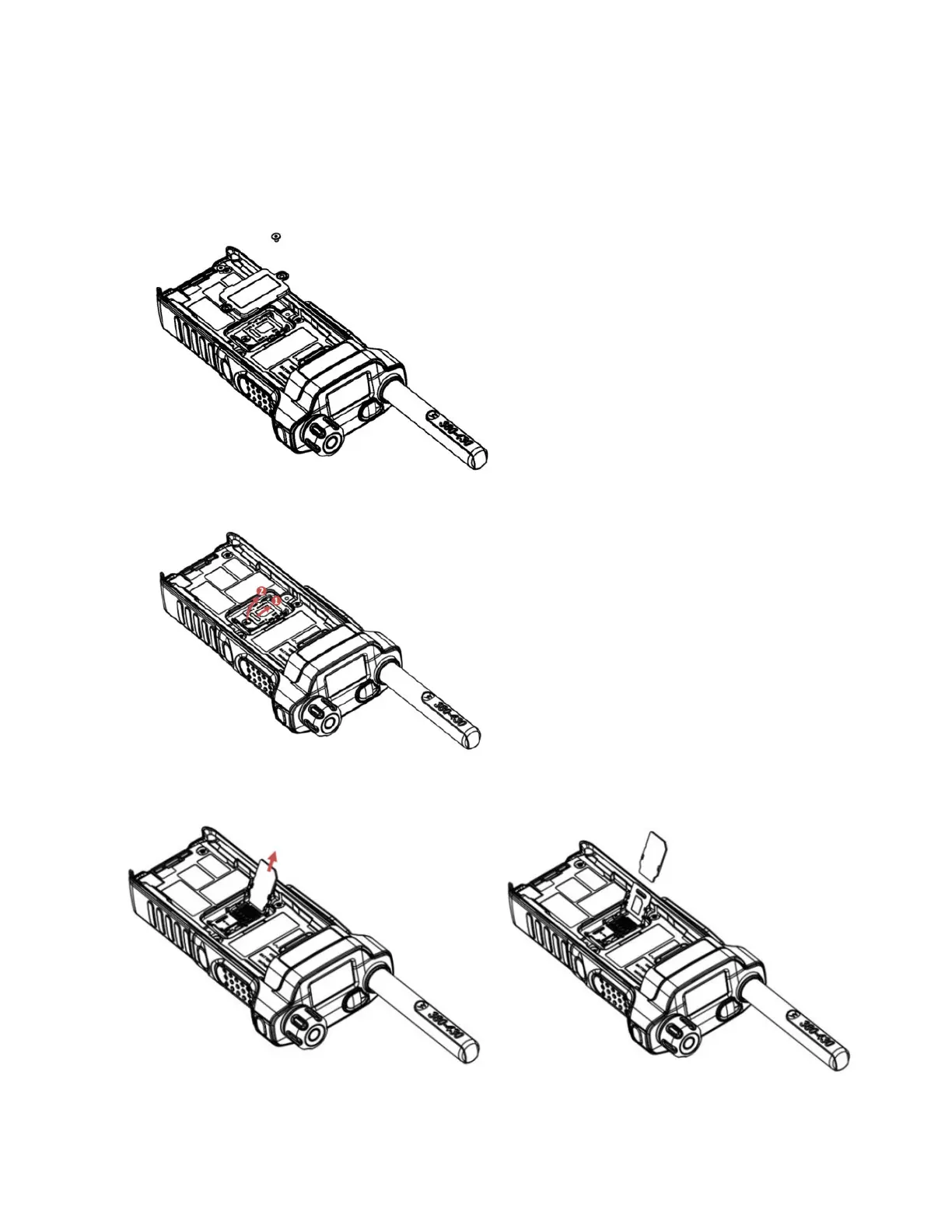

1 Remove the battery.
2 Unscrew the M2 countersunk T-5IP TORX – PLUS screws that secure the SIM card door to the
chassis.
3 Remove the SIM card door.
4 Slide the SIM card holder toward the dust cover side of the radio (as indicated by the UNLOCK
arrow) to unlock it and lift it up.
5 Slide the dummy SIM card in the direction shown in the following figure to remove it from the
SIM card holder.
6 Slide the SIM card into the SIM card door. Pay attention to the correct position of the notched
corner.
MN006260A01-AG
Chapter 2 : Getting Started
22
