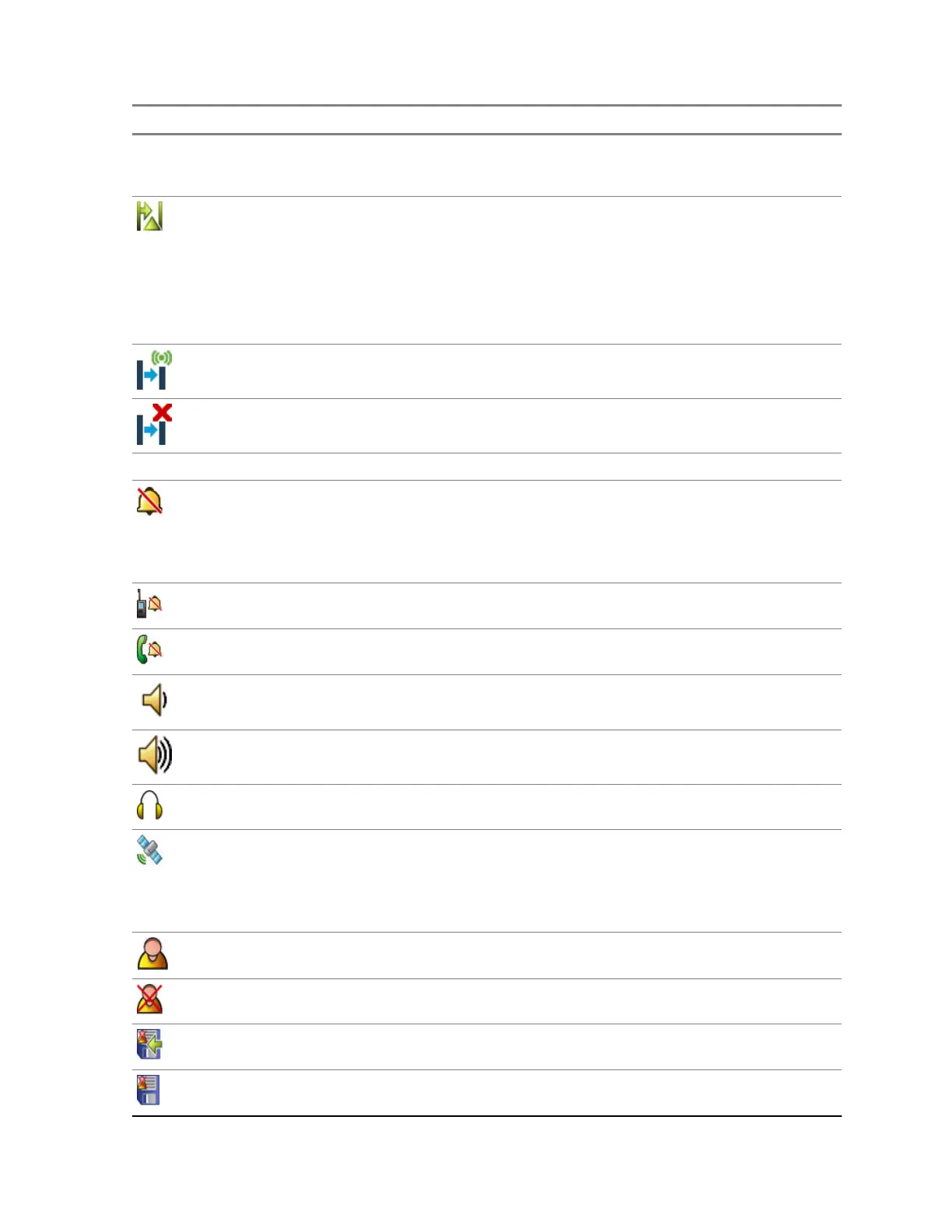

Icon Description
• Blinking – when the radio is not synchronized or during attachment.
• No icon – during radio-to-radio and repeater communication.
DMO Repeater Communication Mode – Indicates that the Repeater or GW + Rep
option in DMO Mode is selected. The icon has the following status:
• Solid – when the radio has detected the repeater (for example, when the radio
receives a presence signal).
• Blinking – when the radio has not detected the repeater or during attachment.
• No icon – during a radio-to-radio and gateway communication.
Automatic DMO Mode - Indicates that Automatic DMO is enabled.
Automatic DMO Mode - Indicates that Automatic DMO is disabled.
General Icons
All Tones Off – Indicates that:
• Volume is set to 0 (when Volume Adj. Mode is set to Common).
• Both simplex and duplex ring volume is set to 0 (when Volume Adj. Mode is set
to Individual).
Simplex Ring Muted – Indicates that simplex ring volume is set to 0 and duplex ring
volume is set to more than 0.
Duplex Ring Muted – Indicates that duplex ring volume is set to 0 and simplex ring
volume is set to more than 0.
Low Audio – Indicates that the audio mode is changed to low.
High Audio – Indicates that the audio mode is changed to high.
Earpiece Connected – Indicates that the earpiece is connected.
GNSS
• Solid – the radio has a location fix.
• Blinking – the radio is acquiring a location fix. This feature is an optional setting
and may not be enabled on your radio.
RUI Logged on – Indicates that you are logged on into the radio.
RUI Pseudo Log On – Indicates that you are in pseudo logged on state.
RUI Packet Data – Indicates Pseudo Log On state when the Packet Data feature is
activated and active data session is in progress.
RUI Packet Data – Indicates Pseudo Log On state when the Packet Data feature is
activated and the external device sets up data connection with the radio.
