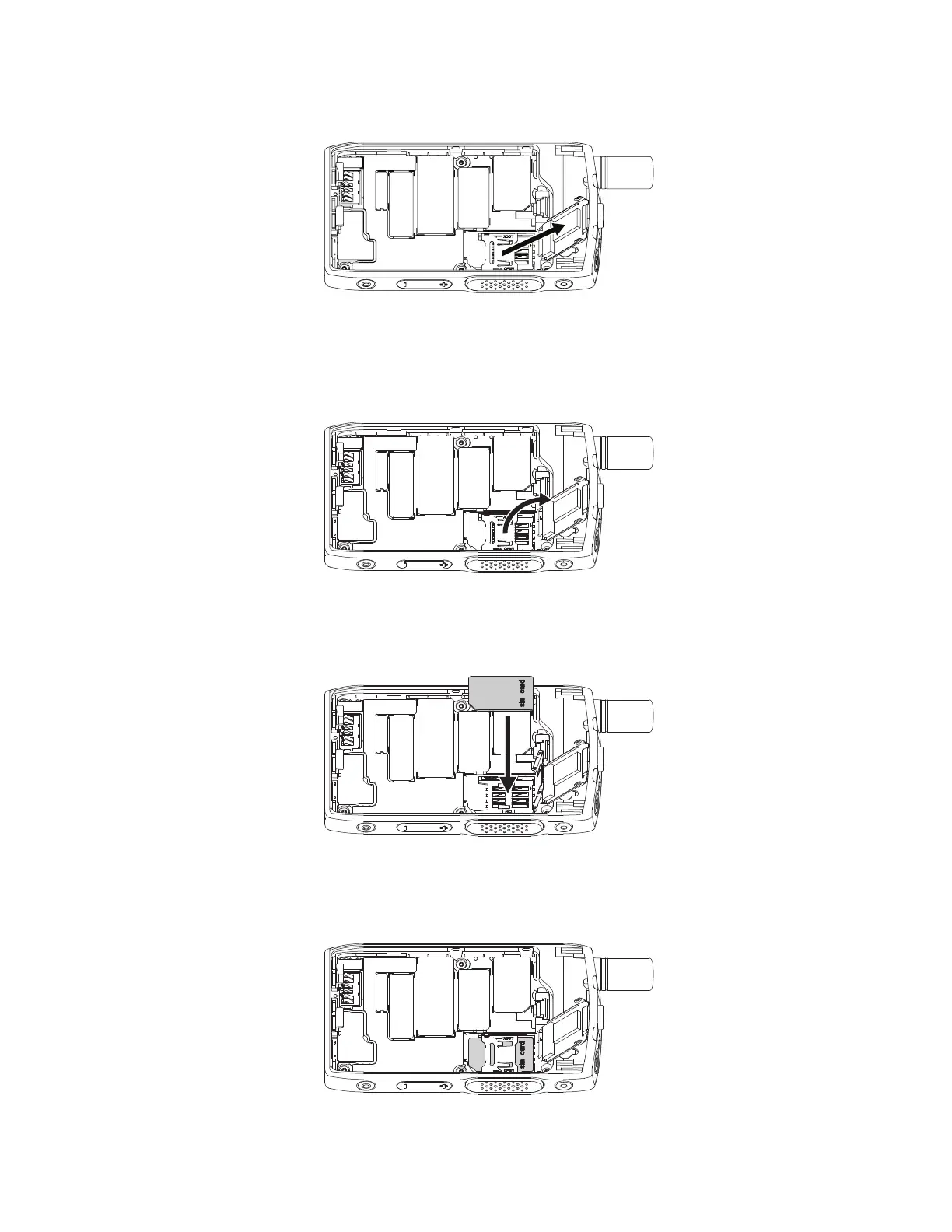

Figure 1: Opening the SIM/microSD Door
3 Slide up and unlock the SIM connector door (as indicated by the arrow engraved on the SIM
connector door).
4 Flip open the SIM connector door.
Figure 2: Opening the SIM Connector Door
5 Insert the SIM card into the SIM connector slot, ensuring that the gold contact area is facing
down.
Figure 3: Inserting SIM Card
6 Close the SIM connector door and slide it to lock (as indicated by the arrow engraved on the
SIM connector door).
Figure 4: Closing the SIM Connector Door
7 Close the SIM/microSD door.
MN002958A01-AF
Chapter 2: Getting Started
16
