Install the battery.
2.2.6
Installing the Battery
Procedure:
1

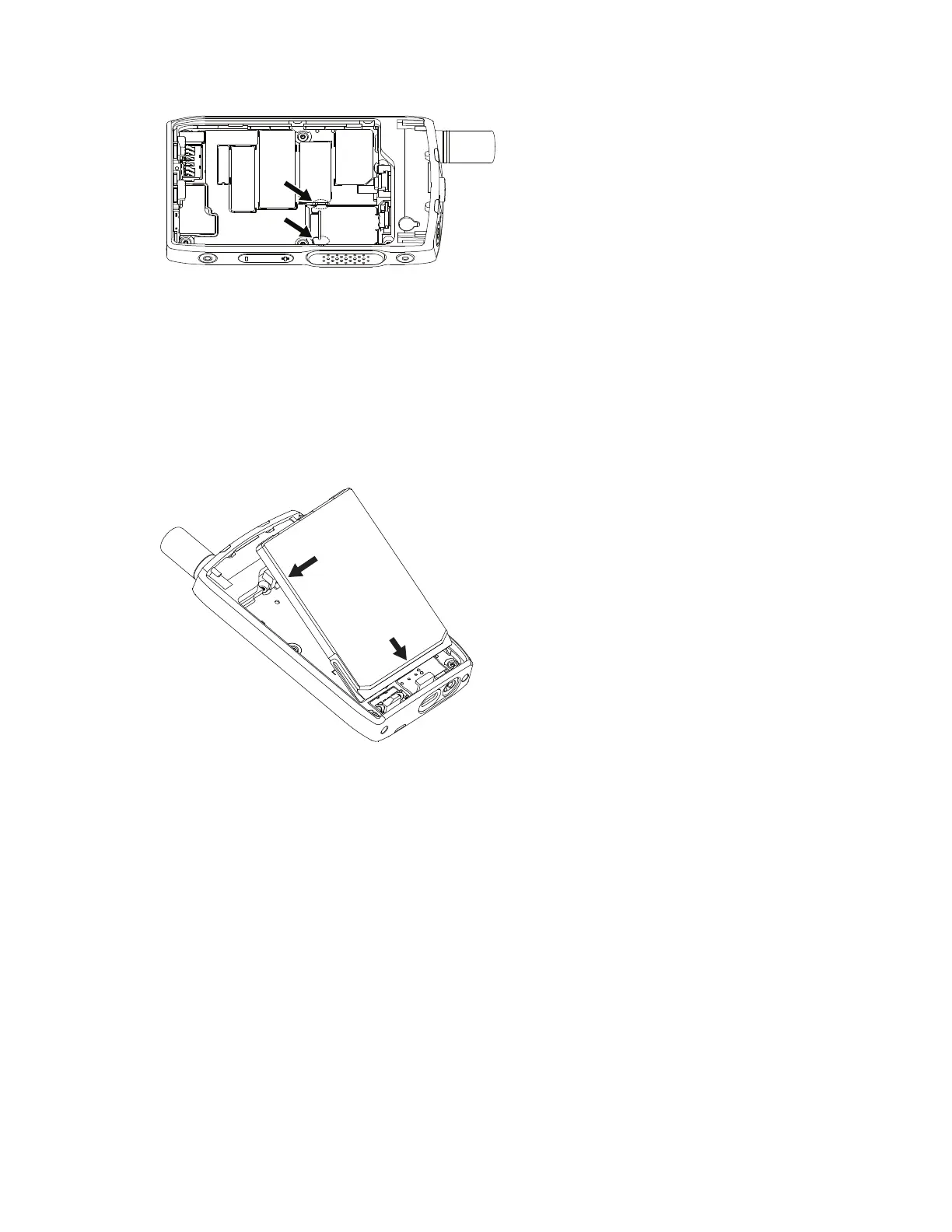

Insert battery into the compartment as illustrated until the contacts align and the battery hooks in
place.
2
Press the battery downward until it clicks.
2.2.7
Removing the Battery
Prerequisites:
Turn off the radio.
Procedure:
1
Pull the clip upwards.
MN002958A01-AF
Chapter 2: Getting Started
22
21
23
