Moxa Technologies AWK Series User Manual

AWK Series User Manual
84

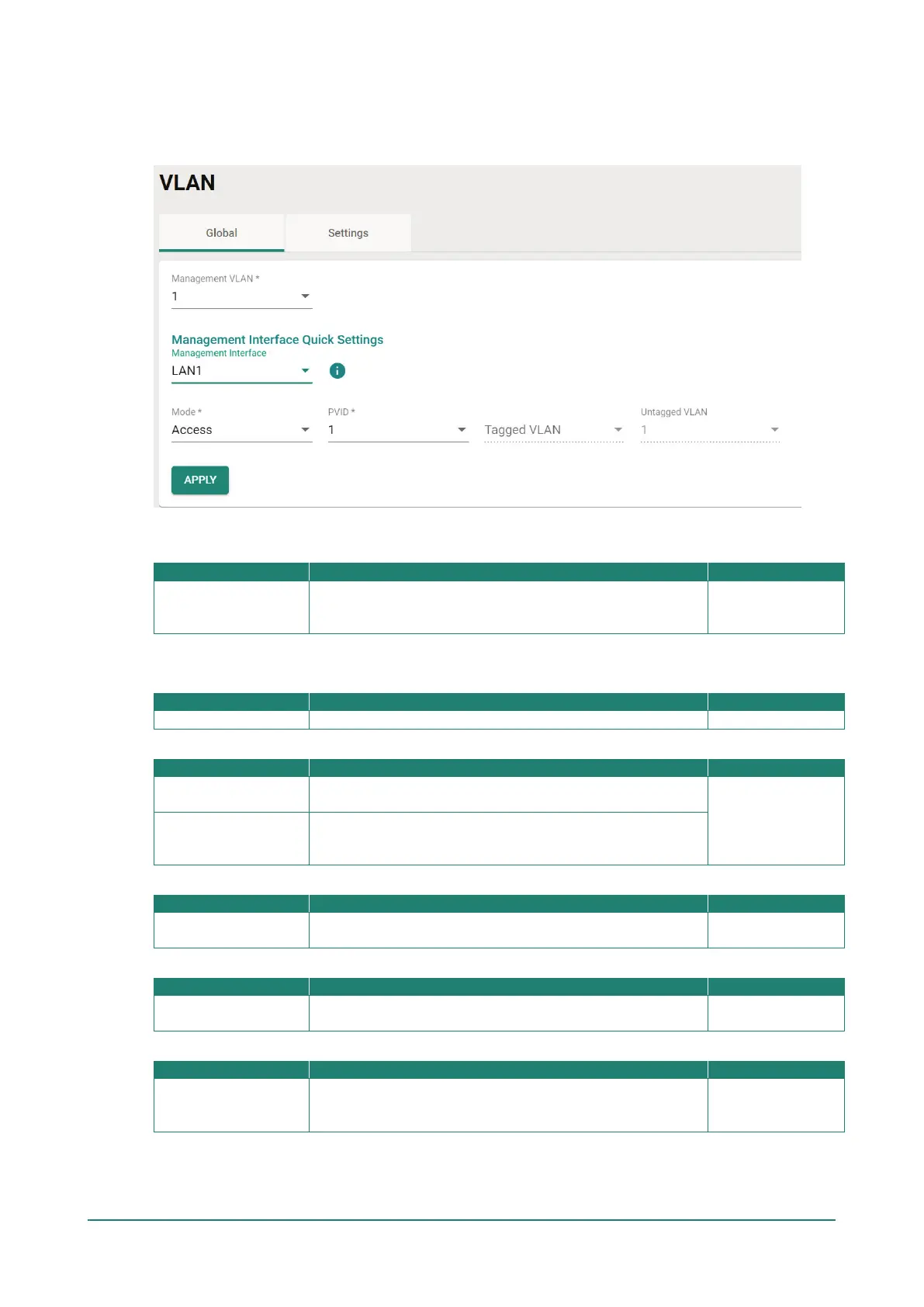

Global Settings
The Global Settings paged is used to configure the management VLAN and interface. Click the Global tab
to access this screen.
Configure the following settings:
Management VLAN ID
Setting
Description
Factory Default
1 to 4094
Specify the management VLAN of this AWK.
By default, there is only VLAN ID 1. Additional VLAN IDs will
need to be created first before they can be selected.
1
Management Interface Quick Settings
Management Interface
Setting
Description
Factory Default
Interface
Select the management VLAN interface.
None
Mode
Setting
Description
Factory Default
Access
Access mode is used if the port is connected to a single
device, without tags.
Access
Hybrid
Hybrid mode is used if the port is connected to another Access
802.1Q VLAN-aware switch or another LAN that combines
tagged and untagged devices.
PVID
Setting
Description
Factory Default
1 to 4094
Set the default VLAN ID for untagged devices connected to the
port.
1
Tagged VLAN
Setting
Description
Factory Default
1 to 4094
If the port type is set to Trunk or Hybrid, specify the VLAN ID
for tagged devices that connect to this port.
None
Untagged VLAN
Setting
Description
Factory Default
1 to 4094
If the port type is set to Hybrid, specify the VLAN ID for
tagged devices that connect to this port and the tags that
need to be removed in egress packets.
Dependent on the
selected PVID
When finished, click APPLY.
