Moxa Technologies IKS-G6524A User Manual

Moxa Managed Ethernet Switch (UI_2.0_FW_5.x) User Manual
41
PoE system power budget
Setting
Description
Factory Default
wattage
Assigns the “Total measured power” limit f or all PoE ports
combined.
IKS-6728A-
8PoE and
EDS-G512E-8PoE:
240W
EDS-P506E-4PoE:
depend on input
voltage (12VDC:
62W, 24VDC: 150W,
48VDC: 180W)

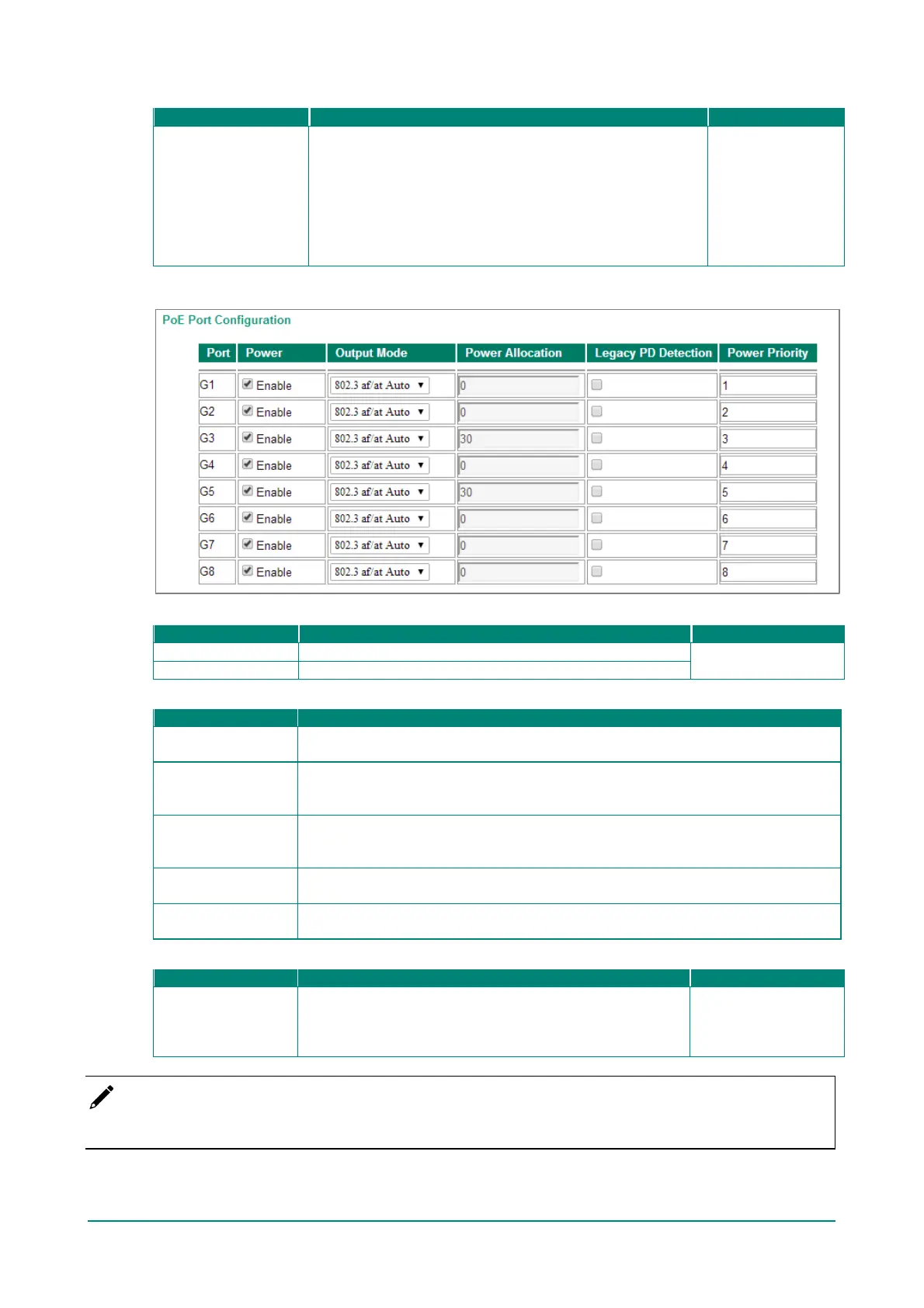

PoE Port Configuration
Power
Setting
Description
Factory Default
Checked
Allows data and power to be transmitted through the port.
Checked
Unchecked
Immediately shuts off power to that port
Output Mode
Setting
Description
802.3 af /at Auto
Power transmission follows the IEEE 802.3 af/at protocols. The acceptable PD
resistance range is 17 kΩ to 29 kΩ.
High Power / 2-Pair
High Power 36W (only
f or EDS-P506E-4PoE)
Provides a higher power output to the 2-Pair PD. The acceptable PD resistance range
is 17 kΩ to 29 kΩ and the power allocation of the port is automatically set to 36 W.
Force / 2-Pair Force -
36W (only f or EDS-
P506E-4PoE)
Provides power output to non-802.3 af/at PDs. The acceptable PD resistance is over
2.4 kΩ and the range of power allocation is 0 to 36 W.
4-Pair High Power
60W
Provides a higher power output to the 4-Pair PDs. The acceptable PD resistance range
is 17 kΩ to 29 kΩ and the power allocation of the port is automatically set to 60 W.
4-Pair Force - 60W
Provides a higher power output to the 4-Pair PDs. The acceptable PD resistance range
is over 2.4 kΩ and the range of power allocation is 0 to 60 W.
Power Allocation
Setting
Description
Factory Default
0 to 60
When the Output Mode is set to 2-Pair Force, the Power
Allocation can be set f rom 0 to 36 W. When the Output Mode
is set to 4-Pair Force, the Power Allocation can be set from 0
to 60 W.
2-Pair Force: 36W
4-Pair Force: 60W
NOTE
Only the EDS-P506E-4PoE can support PoE output over 36W and 4-Pair PD.
